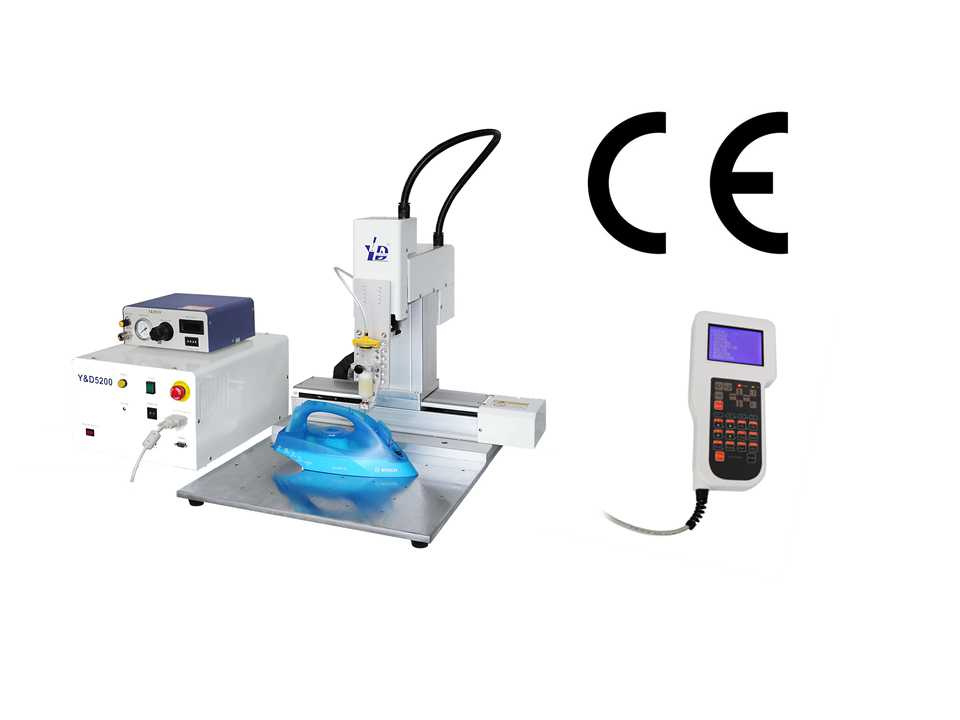

Mobile Phone Touch Screen Glue Dispenser Dispensing Robot

Mobile Phone Touch Screen Glue Dispenser Dispensing Robot
Price: US $ 4500/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: 5200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Y&D
MOQ: 1 Set
Capacity: OEM,ODM
Certification: CE
Speed Ptp X& Y/Z (mm/Sec): 0.1~500/350
Repeatability: ± 0.02mm / Axis
Data Storage: CF Card
Display: Teach Pendant LCD
Data Memory: 100 Programs, 4000 Points/Program
Teaching Method: Teach Pendant
Automatic Grade: Automatic
Packaging Material: Plastic
Application: Cleaning, Detergent
Usage: Inner Packing
Type: Packaging Sealing Machine
Material Type: Liquid

Product Description

Mobile phone touch screen glue dispenser

Description

Applied Industry
Wireless communication, electronics, semi-conductor, automobile, medical machinery, chemical industry, artware, etc.

Application Range
Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery packaging, the coil point glue, PCB bonding/ sealing, IC bonding/ sealing, horn external punctuate glue, PDA sealing, LCD sealing, IC packaging, casing bonding, optical device processing, mechanical sealing, ink clip, LED, DVD, digital cameras, switches, connectors, radiators, semiconductor and other electronics, clocks, toys, medical equipment, etc.

Applied glue or liquid
Silica gel, EMI conductive adhesive, UV glue, AG glue, Fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, epoxy resin, instant glue, thermal compound, anti-solder paste, paint, etc.

Main Uses
1) Processing with bonding, infusion, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3)Available in three and four axis models, Four axis and four-linkage running. R-axis: 360° Rotary
Y& D5000  Series  dispenser  robot
Item Y& D5200Y& D5300
X/Y/Z  working  area  (mm)200/150/50300/200/50
Load  worktable3kg
Speed  PTP  X& Y/Z  (mm/sec)0.1~500/350
Repeatability±   0.02mm  /  axis
Resolution0.02mm/axis
Data  memory100  programs,   4000  points/program
Data  storageCF  card
DisplayTeach  pendant  LCD
Operation  systemPTP  (point  to  point)  &   CP  (continuous  path)
Interpolation  linear/circular3  Axes  (  suit  for  3D  requirement)
Teaching  methodTeach  pendant
I/O  signals8  inputs  /  8  outputs
External  interfaceRS232
Power  supplyC  90~260V  320W
Operating  temperature0~40° C
Motor  systemMicro  stepping  motor
Dimensions(mm)510  X  380.5  X  485.5610  X  380.5  X  485.5
Weight23kg




Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.

We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.

We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
