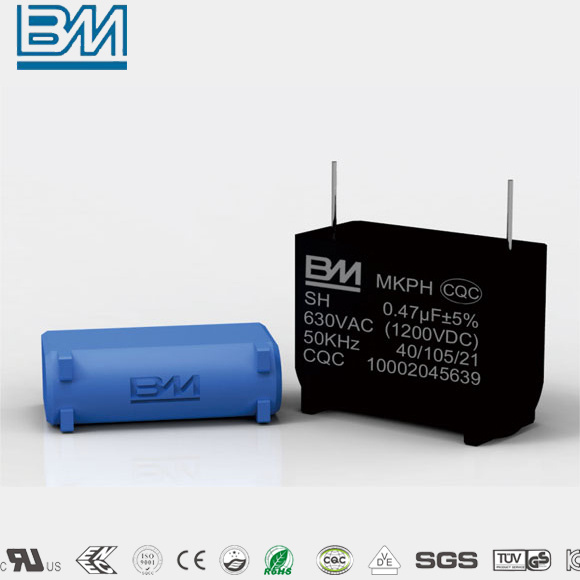

Mkph Induction Cooker Capacitor with UL CQC VDE Certificate

Mkph Induction Cooker Capacitor with UL CQC VDE Certificate
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: MKPH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

The products are made of temperature-resistant metalized polypropylene film, both side thickened metalized electrode, non-inductive construction, DV/DT full inspection testing, full automatic production. They have characteristics of good uniformity, high stability and so on.
Specifically used in high
frequency vibration return circuit of induction cooker and other induction heating equipment.

  Reference standardGB/T14472, IEC60384-14, UL1283
Climatic category40/105/21
Rated voltage1000VDC,1200VDC, 1600VDC,2000VDC
Capacitance range0.01μF~0.9μF
Capacitance tolerance±5%(J),±10%(K)
Voltage proof between terminals2*UR(VDC)/ 10s
between terminals and case2*UR+1000(VAC)/ 60s(2000VAC)
Insulation resistance (20 degree) between terminals≥30000MΩ           (100Vdc,60s
between terminals and case≥30000MΩ           (100Vdc,60s)
Tangent of loss angle(20 degree)≤0.007  (10KHz )
Pulse rise time(dv/dt)500V/μs Max





Established in 2000, Guangdong Fengming Electronic Tech. Co., Ltd. Covers an area of 25, 000 square meters, has 30, 000 square meters of High-standard factory and the capacitor daily productive ability is about 2 million.

We have three research centers and five product divisions for research, design, product and sales of metalized film capacitors.

We mainly produce metallized film capacitors, including MKP\MKPH\CBB61\CBB60\CBB65\CBB80\X2\CBB20\CBB21\CBB81.

Our product is widely used in all kinds of electronic appliance \ induction cooker\lighting\air conditioner\refrigerator\washing machine and other home appliance and electronic power systems.
