Prod Model: |
LPA-500v |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
300W |
Place Of Origin: |
Place of Origin |
Brand Name: |
Qqchinapa |
Use: |
Hotel,School,Airport,Departmen,Church |
Certificate: |
CE, FCC,RoHS,CB |
Protetion: |
High Temp,Overload&Short-C |
Factory History: |
More Than 10 Years |
Warranty: |
3 Years |
Deliver Time: |
2-25days |
Factory Ability: |
OEM ODM |
Used For: |
Professional |
Tube Type: |
Transistor Amplifier |
Function: |
PA Amplifier |
Sound Channel: |
3.1 |
Output Number: |
8 |
Voltage: |
AC 110V |
Element Number: |
Push-Pull Amplifier |
Conductive Mode: |
D |
Usage: |
Public Address System |
Product Description

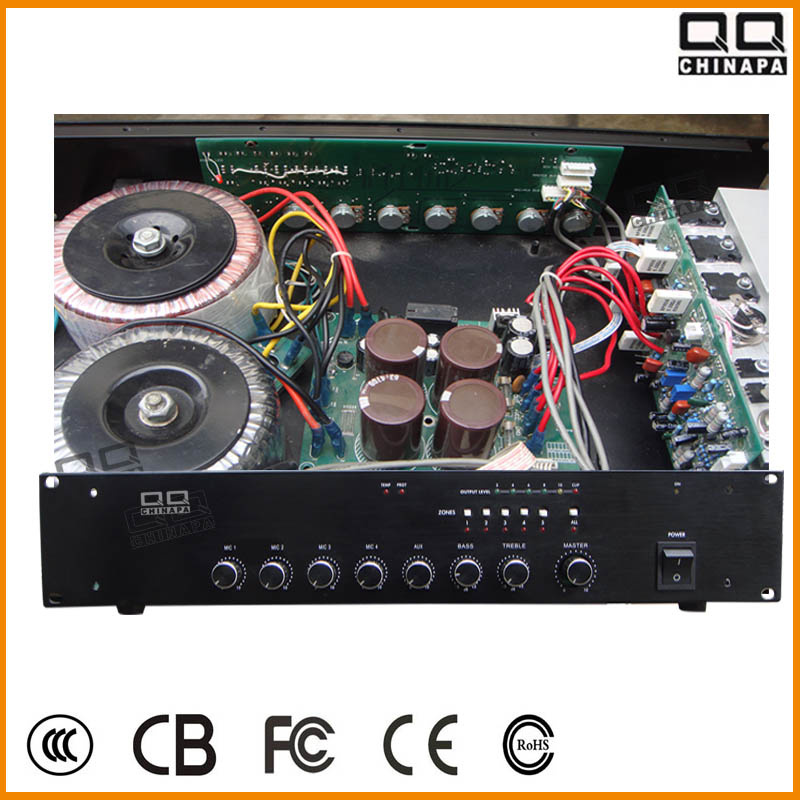

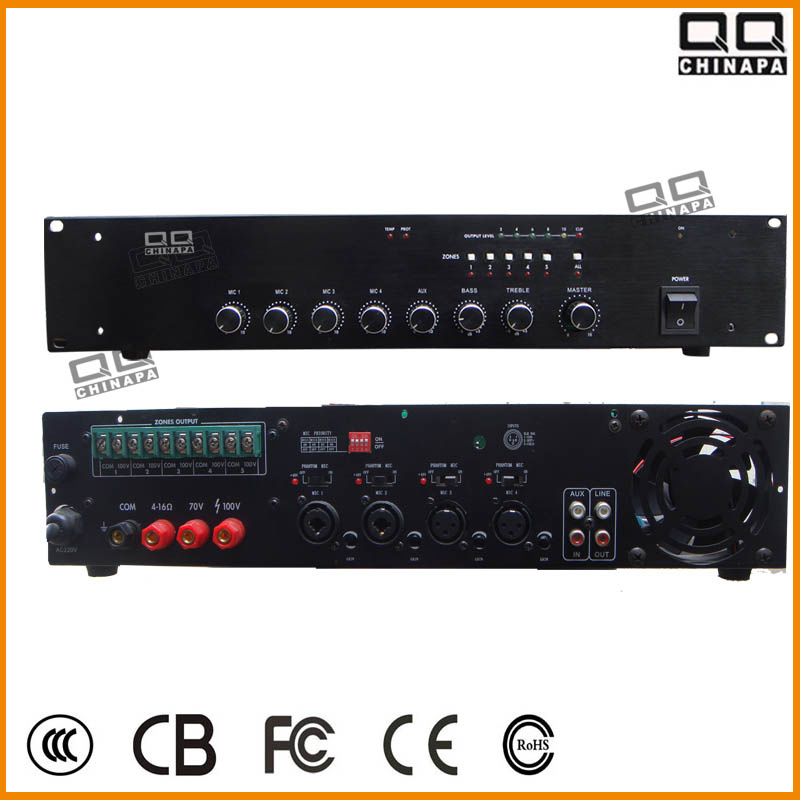

Integrated Power Amplifier with 48V phantom power and 6.3 Jack, with Master
1:48V phantom power and 6.3 Jack, with effort function and Master
2: Four microphone inputs. One auxiliary inputs, and one auxiliary outputs for link.
3: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
4: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
5: Muting function.
6: Individual volume control, low and high tone control
7: Short circuit protection & alarm
8: Individual distributor for each channel
9: Series amplifiers of high output power available.
Model |
| LPA-60V | LPA-100V | LPA-150V | LPA-200V |
Rated power |
| 60W | 100W | 150W | 200W |
Line voltage |
| 70-100V,48v | 70-100V,48v | 70-100V,48v | 70-100V,48v |
impedance |
| 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω |
Dimension |
| 485*360*90 | 485*360*90 | 485*360*90 | 485*395*90 |
|
|
Model | LPA-300V | LPA-400V | LPA-500V | LPA-600V |
|
Rated power | 300W | 400W | 500W | 600W |
|
Line voltage | 70-100V,48v | 70-100V,48v | 70-100V,48v | 70-100V,48v |
|
impedance | 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω |
|
Dimension | 485*395*90 | 485*395*90 | 485*483*150 | 485*483*150 |
|
