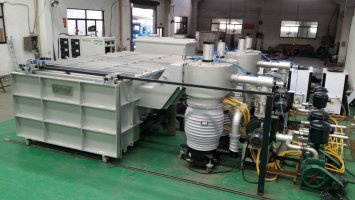

Magnetron Sputtering Vacuum Coating Machine

Magnetron Sputtering Vacuum Coating Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1 /Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: CJ-600/800/1000/1200/1400/1500/1600
Enter Attribute Here (e.g.: Size): Enter Value Here (e.g.: 12 Inches)

Product Description

The operating principle of magnetron sputtering of series CJ magnetron sputtering vacuum membrane plate machine: the so-called "sputtering" is using the energetic particle (the gas positive ion is used generally) to bombard the object so as to cause the phenomenon of the surface atom of the objective escaping from the parent. As far back as 1842, Grove had found this phenomenon in the laboratory. The magnetron sputtering target adopts the static electromagnetic field, which is curvilinear, while the plane target and cylindrical target adopt the uniform electric field and logarithm electric field respectively. Under effect of the electric field, the electron will collide with the argon atom in the process of accelerating flying to the substrate. When the electron has enough energy (about 30ev), Ar+ will be ionized and the electron will be produced and fly to the substrate; under effect of the electric field, Ar+ will accelerate flying to the cathode (the sputtering target) and bombard the surface of the target with high energy and make the target sputtering.


Applications:
It is widely used in electrical appliances, watch & clock, golf head, arts and crafts, toys, lights reflectors, phone keypad housing and instrumentation, plastics, glass, ceramics, tiles and other surface decorative coating film and functional coating of tool and mould. It has the irreplaceable advantages in areas  of coated ultra-black film, gold decoration film and conductive film.


Features:
1) Good film thickness controllability and repeatability. The predetermined thickness of film can be reliably coated, and the sputtering coating film can be obtained with uniform thickness film layer on the large surface;
2) Strong adhesion of the film and the substrate. Some of the high energy of the sputtered atoms generates the different degrees of incidence phenomenon, forming a layer of pseudo-diffusion layer that sputtered atoms fused to the substrate atoms each other;
3) Prepare a film made by special material, different materials may be used to sputter and prepare a mixed film and compound film, and also a Tin imitation gold film can be sputtered;
4) High purity with film layer, the sputtering film layer will not be mixed with components of crucible heater material.
4) It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.



Model  CJ-600  CJ-800  CJ-1000  CJ-1200  CJ-1400  CJ-1500CJ-1600
vacuum chamber dimensionsφ600X800MMφ800X1000MMφ1000X1200MMφ1200X1400MMφ1400X1600MMφ1500X1500MMφ1600X1800MM
  vacuum systemKT400
Diffusion pump unit
KT500
Diffusion pump unit
KT800
Diffusion pump unit
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
Coating systemDc or intermediate frequency power supply, plating auxiliary ion dedicated power supply

Inflation systemMass flowmeterMass flowmeterMass flowmeterMass flowmeterMass flowmeterMass flowmeterMass flowmeter
Control modeManual or automaticManual or automaticManual or automaticManual or automaticManual or automaticManual or automaticManual or automatic
Ultimate vacuum5X10-4Pa5X10-4Pa5X10-4Pa5X10-4Pa5X10-4Pa5X10-4Pa5X10-4Pa
RemarksAbove equipment parameters for your reference only, specific according to customers' special requirement of practical process design


Kunshan PU yuan vacuum technology engineering Co., Ltd is a professional manufacturing high-grade series vacuum coating equipment, vacuum wall and VIP special insulation board series vacuum packaging equipment, and professional foreign undertake coating processing business is given priority to, set research and vacuum coating equipment, vacuum film packaging equipment research and development, manufacturing, sales, coating, services in an integrated high-tech company.

Our company has a team of excellent technical force, strong development capabilities, fully digesting and absorbing advanced technology both at home and abroad, research and development design manufacture resistance evaporation vacuum coating equipment, electron beam evaporation vacuum coating equipment, vacuum magnetron sputtering coating equipment, many vacuum arc ion coating equipment, special multi-function vacuum coating equipment, special equipment for vacuum packaging and other products.

We have many years engaged in vacuum technology application development, the development of deep qualifications. With superb mechanical 3 d design module and the three dimensional animation design plate, using 3 d CAD design system for product development, make the product development research work fast, efficient and high quality. To study the film guide the development of coating equipment, make the product technical performance has always maintained a leading position.

Company has all kinds of decorative film coating equipment research center layer and function of membrane application in the field of research and development ability, special experiment research center with membrane layer application vacuum coating equipment and technical performance parameter testing various film special equipment, the company has its own film application field in terms of technical performance parameter testing enterprise standards.
