| Prod Model: |
M08/B282 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| THD: |
<0.005% |
| Speaker System: |
Passive |
| Speaker Material: |
Ferrite |
| Application: |
Stage |
| Certification: |
ISO |
| Monitor: |
None |
Product Description

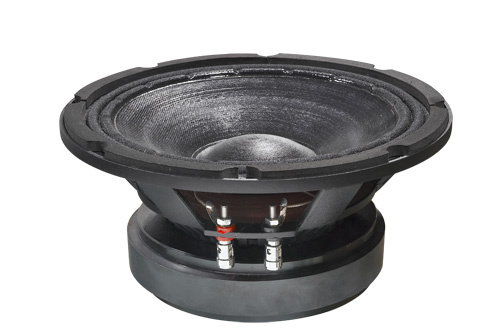

M08 / B282- 8 polegadas profesionale alto-falante woofer-midrange Profissional audio

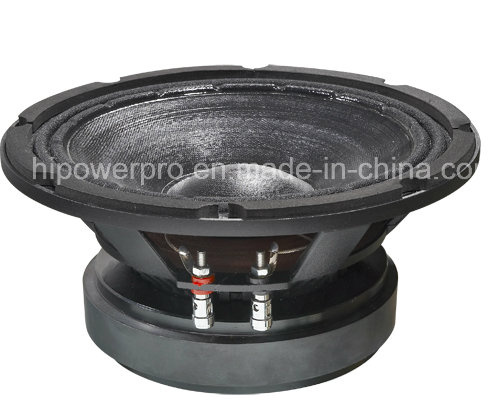

8 inch Midrange PA Speaker
1.PA loudspeaker which is optimal for midrange application
2.competitive price
3.excellent quality
4.other sizes are slso available upon requests
5.Details:
| General Specifications |
| Nominal Diameter | 200/8 | mm/inch |
| Rated Impedance | 16 | ohm |
| Nominal Power handling | 150 | Watts |
| Program Power | 300 | Watts |

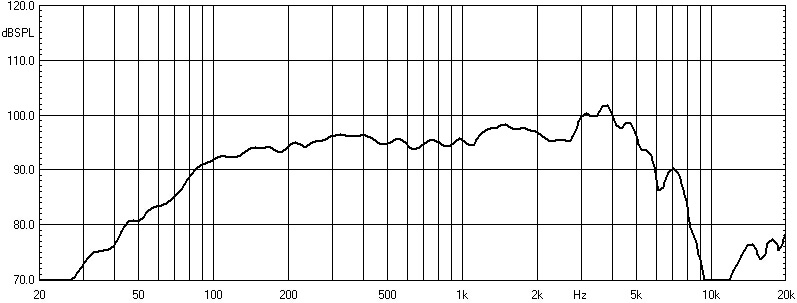

| Sensitivity(lw/lm) | 93 | dB |
| Frequency Range | 71-5K | Hz |

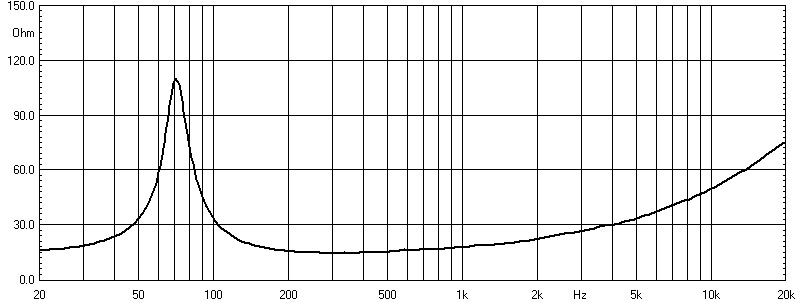

| Minimum Impedance(Zmin) | 14.4 | ohm |
| Voice Coil Diameter | 50/2 | mm/inch |
| Voice Coil Material | Copper Clad Aluminum | |
| Voice Coil Winding Depth | 13.5 | mm |
| Number of layers | 2 | |
| Magnet gap depth | 8 | mm |
| Cone Shape | Curved | |
| Surround Shape | M-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1.0 | T |
| Magnet Material/Mass | Ceramic/1.23 | kg |
| Thiele-Small parameters |
| Resonance frequency | Fs | 71 | Hz |
| DC resistance | Re | 13 | ohm |
| Mechanical factor | Qms | 4.7 | |
| Electrical factor | Qes | 0.63 | |
| Total factor | Qts | 0.55 | |
| Mechanical compliance | Cms | 0.28 | mm/N |
Mechanical resistance
of suspension losses | Rms | 1.68 | mech-ohm |
| Effective Moving Mass | Mms | 17.8 | gr |
| Half-space efficiency | Eff | 1.15 | % |
| BL Factor | BL | 12.8 | T.m |
| Equivalent Cas air load | Vas | 20 | liters |
| Effective piston area | Sd | 0.0222 | m2 |
| Max.linear excursion | Xmax | 5 | mm |
| Voice-coil inductance | LelK | 1.0 | mH |
| Mounting Information |
| Overall Diameter | 211 | mm |
| Bolt Circle Diameter | 197 | mm |
| Bolt Hole Diameter | 5 | mm |
| Baffle Cutout Diameter | 186.5 | mm |
| Overall Depth | 95 | mm |
| Net Weight | 3.6 | kg |
Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.
Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.
In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.
Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.
We are looking forward to establishing long-term relationships with you.
