| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3.7V |
| Size: |
9.0*34*50mm |
| Capacity: |
1500mAh |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Usage: |
Electric Power |
| Type: |
Li-ion |
| Nominal Voltage: |
3.7V |
| Electrolyte: |
Li-ion |
Product Description

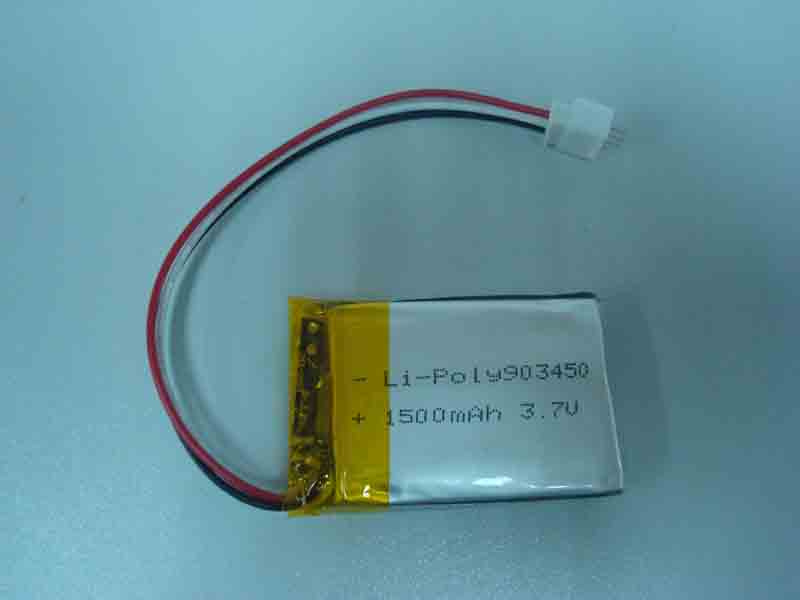

Model: 3.7 V-1500mAh
Polymer battery technology parameters (concrete can be designed according to customer requirements-voltage/capacity/size/line)
@ monomer battery model: PL903450
@ monomer battery voltage: 3.7 V
@ monomer battery capacity: 1.5Ah
@ battery combined capacity: 1.5AH
@ battery power: 5.55W
@ the battery size: 9.0*34*50 mm
@ maximum discharge current: > 1.5A (may be based on customer demand or reduce the current amplification)
@ instant discharge current: >3.0 A (may be based on customer demand the current amplification or reduce)
@ maximum charge current: > 0.2 0.5 C (may be based on customer demand the current amplification or reduce)
@ cycle count: > 500 times
Protection function
@ main chip: (scheme may choose different different IC)
@ battery overcharge function: In the P + and P-between plus charger, for recharging the battery, the voltage filling to 4.2 + /-0.05 V (according to request design), the protection circuit action, shut off the charging pathways, realize the overcharge protection
@ overdischarge protection function: In the P + and P-between connected to load let the battery discharge, when the battery voltage drop to 3.0 + /-0.1 V (according to request design), the protection circuit action, shut off the discharge pathways, achieve discharge protection
@ short circuit protection function: When P + and P-short circuit, protect the circuit will be in 5-50 uS quickly in action, cut off access, achieve short circuit protection
@ over-current protection function: When a B-end and P-of voltage of 0.15 + /-0.02 V), protect the circuit will be in 5-26 ms quickly in action, cut off access, realize the over-current protection
Temperature performance
@ discharge temperature range: -10 -60
@ charge temperature range: 0 -40
@ storage temperature: 1 year: -20 -25
3 months: -20 -45
1 months: -20 -60
Green Land Battery Co, . Ltd. Is a professional manufacturer of rechargeable batteries, including lithium batteries, lithium polymer batteries, lithium iron phosphate batteries.
We believe that good quality is the fundamental of sustainable development, and our factory In strict accordance with ISO9001: 2000 requirements, and establish a perfect quality assurance system. Our products have obtained CE, UL and RoHS certification. From the procurement of raw materials, feed testing, programmable control system has been shipped to the finished product inspection, which have improved, systematic practices, to ensure stable and reliable product quality.
For this reason, the distribution of our company's products sales network in addition to Taiwan, China and other regions, and exported to Japan, South Korea, the United States, Canada, Italy, Germany, dozens of countries and regions, the majority of customers.
Green Land Battery Co, . Ltd. Always uphold the concept of innovation, training more than 30 R & D personnel, let continuously enrich their skills and knowledge to develop new products for customer needs, the main purpose is the innovation efforts. We will continue to retain good quality, reasonable price, punctual delivery and perfect after-sales service for the direction of our efforts to provide the batteries for you.
