Prod Model: |
PH16MM |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Chip: |
Taiwan Epstar |
LED Lamp: |
DIP346 |
LED Module Size: |
256 Mm X 128mm |
Standard Cabinet Size: |
1024mm X 768mm |
Cabinet Weight: |
48 Kg/PC |
Brightness: |
More Than 7000 CD |
Packing Materail: |
Wooden Case |
Guraanty Time: |
2 Years |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Certification: |
CCC |
Pixel Pitch: |
16mm |
Display Function: |
Video Display |
Application: |
Stage Performance |
Scanning Mode: |
Static Scan |
Average Power Consumption: |
220W / m² |
Pixel Density: |
3906 |

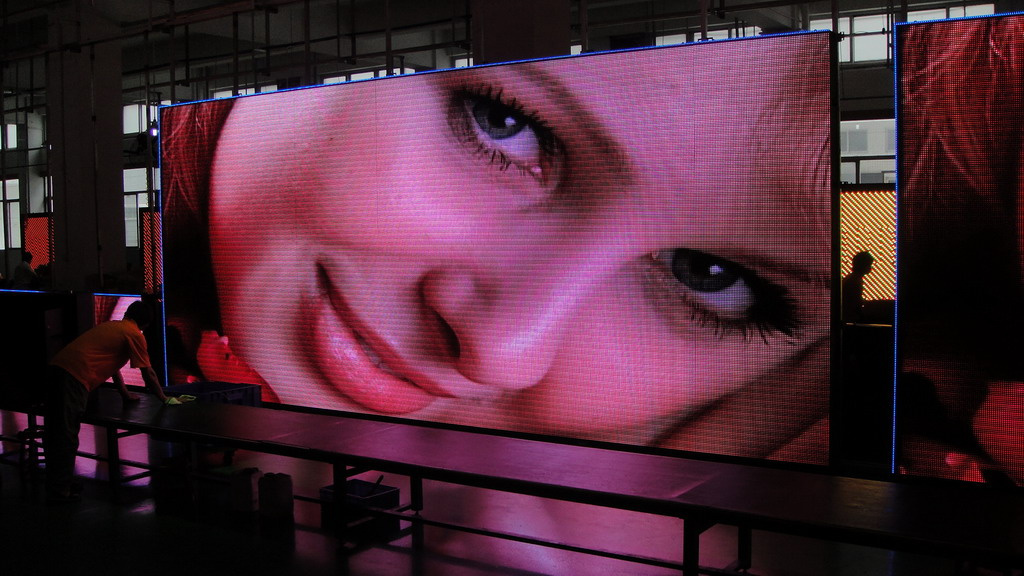

Product Description
Noveled Group Co. Ltd is the leading OEM manufacture of LED Display Screens and LED light in China. We provide Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and full-color for different markets, such as advertising billboard, stadium LED signs, sports LED signage, rental video display, mobile digital LED display, stage & bar electronic sign, DOT matrix LED display etc.
Product Description:
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
Display and control feature | Structure feature |
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 16 mm | Module size | 256 mm*128 mm |
Pixel composing | 2R1G1B | Display resolution/module | 16 dots*8 dots |
Wavelength (R) | 625±5 | Standard cabinet size | 1024 mm*768 mm |
Wavelength (G) | 522±3 | Weight per sqm | 65 Kg/sqm |
Wavelength (B) | 465±5 | Protection classification | --- IP65 |
Wave Angle (H) | 140°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
LED package | DIP546 |
|
|
Density | 3,906 | Working power |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥8000cd | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 1600W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 1100W/sqm |
Refresh | 400 Hz | Short circuit protection | Yes |
Driving method | Constant Static current |
|
|
Control mode | synchronous | Working environment |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --20~50c |
lifetime | 100,000 hours | Working Humidity | 10~90% |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
