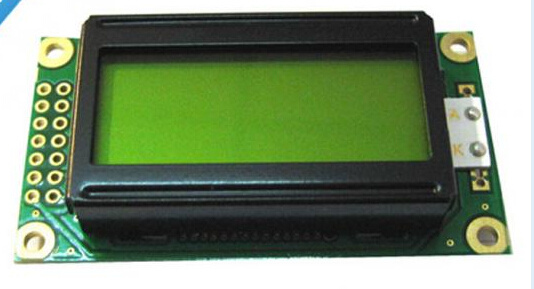

| Prod Model: |
WH0802A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
8 Characters * 2 Lines |
| Outline Dimension: |
40*35.2*7.8mm |
| Viewing Area: |
30.5 *14 |
| DOT Size: |
0.5*0.5 |
| Application: |
Indoor |
| Feature: |
LED Backlight Display |
| Type: |
DSTN |
| Interface Type: |
AV |
Product Description
Feature
1. 5*8 dots includes cursor
2. Built-in controller(ST 7066 or Equivalent)
3. +5V power supply
4. 1/16 duty cycle
5. LED can be driven by pin1,pin2,or A and K
1. SPECIFICATIONS
1.1 Features
Item
Standard Value
Display Type
8characters ´ 2 lines
LCD Type
STN,POSITIVE(GRAY),REFLECTIVE
Driver Condition
LCD Module : 1/16Duty , 1/5Bias
Viewing Direction
6 O'clock
Backlight Type
---------
Interface
8-bit MPU interface
Driver IC
SPLC780D
1.2 Mechanical Specifications
Item
Standard Value
Unit
Outline Dimension
40(L) * 35.2(W) * Max 7.8(T)
mm
Viewing Area
30.5(L) * 14( W)
mm
Dot size
0.5(W) ´ 0.5(H)
mm
Dot pitch
0.57(W) ´ 0.57(H)
mm
Character size
2.78(W) ´ 4.49(H)
mm
1.3 Absolute Maximum Ratings
Item
Symbol
Condition
Min.
Max.
Unit
System Power Supply Voltage
VDD
-
-0.3
5.5
V
LCD Driver Supply Voltage
VLCD
-
VDD-12
VDD-0.3
V
Input Voltage
VIN
-
-0.3
VDD + 0.3
V
Operating Temperature
TOP
-
-20
70
°C
Storage Temperature
TST
-
-25
80
°C
Storage Humidity
HD
Ta < 40 °C
20
90
%RH
Our Product :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
Here we offer one-stop service
Quality, stability, accessibility are all important to us, as they are to you.
Just as in our name, TOP strives to be a leading business in the electronic industry.
Our high quality products and professional service, are sure to meet your need for all kinds of electronic components and products.
