| Prod Model: |
HST12S120M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Output Voltage Range: |
12V |
| Output Current Range: |
10mA -1000mA |
| Input Frequence: |
50/60Hz |
| Protection: |
Over Voltage Over Current |
| Output Cable: |
Optional |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
Phone |

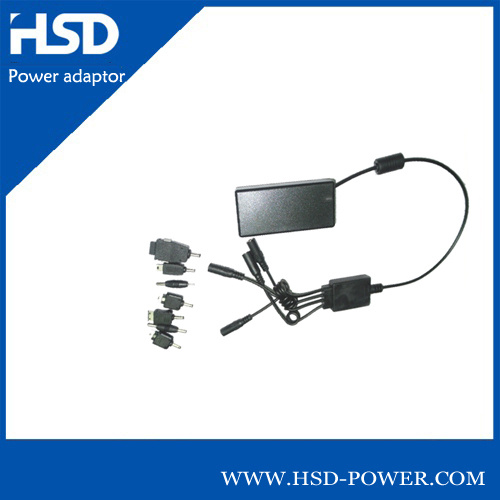

Product Description
Input Voltage: 90VAC-264VAC
Input Frequency Range: 47-63Hz
Input Current: 0.3A/110VAC
Inrush Current: 30A /230VAC
Output MAX power: 5.0W
Output voltage: 12.0V
Output current: 0-1000mA
DC Plug Specification According to the customer' s requirements
Line Regulation: ± 5%
Load Regulation: ± 5%
Ripple&Noise: <50MVP-p
No load power Dissipation: <0.3W
Efficiency: >70%
Protections: Short circuit/ Over load/Over voltage/ Over temperature
MTBF: 50000 Hours
Operationg Temperature: -20C~+45C
Storage Temperature: -40C~+85C
Safey& EMI: UL60950, EN60950, EN55022, EN61000, Class 2, UL1310,
Compliance: RoHS, PAHs, REACH, WEEE
Warranty: 2 Years
Dimension: 78*49*32mm(L*W*H)
|
Plug-in Mains Connector |
US,UK,CE,SAA,PSE etc. |
|
Input Condition |
AC100-240V 50/60Hz |
|
Input Rated Voltage |
100Vac-240Vac |
|
Input Voltage Range |
90Vac-264Vac |
|
Input Rated Frequency |
50/60Hz |
|
Input Frquency Range |
47Hz-63Hz |
|
Input Current |
0.35A Max |
|
Input Inrush Current |
30A Max |
|
Rated Output Voltage&Current |
3.0V-30V&0.1A-2.0A |
|
Output Power |
36W Maximum |
|
Output Line Regulation |
±5% |
|
Output Load Regulation |
±5% |
|
Output Over Shoot |
10% Maximum |
|
Output Ripple and Noise |
100mVp-p Max |
|
Output Rising Time |
20ms Maximum at 115Vac |
|
Output Hold up Time |
10ms Minimum at 230Vac |
|
No Load Power Consumption |
0.3w Max at 115Vac/230Vac |
|
Efficiency |
Conform to Level V(CEC/ERP/MEPS) |
|
Protection |
OCP,OVP,OTP,OLP |
|
Dielectric Withstand Voltage |
3KV 5mA 60S |
|
Leakage Current |
0.25mA at 230Vac |
|
DC Plug Specification |
According to the customer's requirements |
|
Operating Temperature Range |
-20-45 |
|
Storage Temperature Range |
-40-85 |
We are professional electrical and power supply, electrical appliances, charge, LED driver, switching power supply.
