Shanghai Lanbao Sensing Technology Co., Ltd. >> Lanbao Optical Fiber Sensor Fiber Amplifier

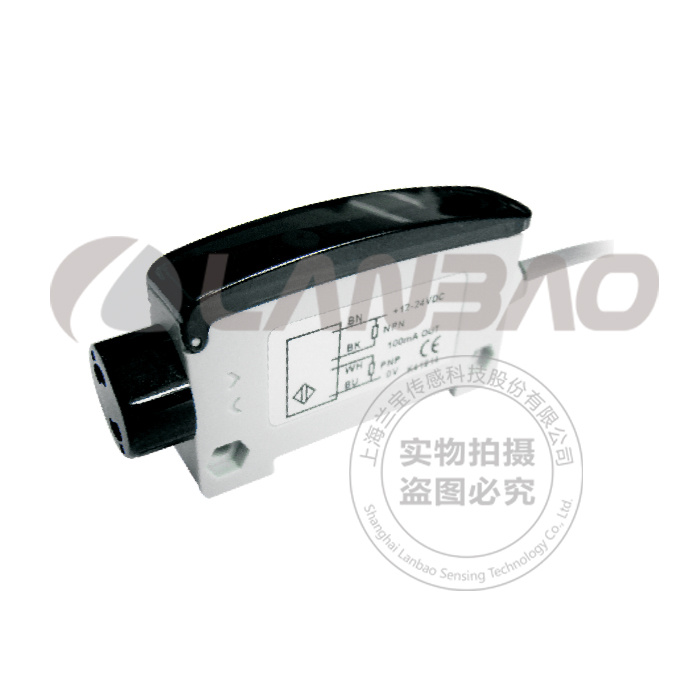

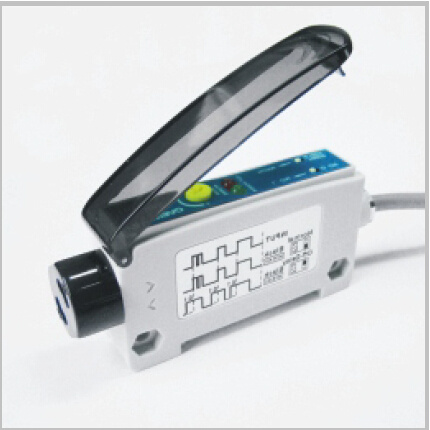

Lanbao Optical Fiber Sensor Fiber Amplifier

Lanbao Optical Fiber Sensor Fiber Amplifier
Price: Negotiable/Piece
Trade Terms: FOB,CFR,FCA
Min Order: 10/Piece
Pay Type: T/T,Paypal
Prod Model: FD1-NPR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage: 10-24VDC
Current Consumption: <=40mA
Load Current: <100mA
Response Time: <1ms
Light Source: Red Light LED
Ambient Temp.: -10c~+50c (No Freeze)
High Voltage Resistance: 1000V/AC 50/60Hz 60s
Protection Degree: IP65
Housing Material: PC+ABS
Connection: 2m PVC Cable
Type: Optical Fiber Sensor

Product Description

 Specification:
------------------------------------------------------------------------
  Specification
  Model  FD1-NPR
  Power supply  12~24VDC
  Current consumption   ≤40mA
  Response time  ≤1ms
  Load current  ≤100mA
  Detection accuracy    > 0.01mm (Depends on specific)
  Light source  Red light LED
  Ambient light  Incandescent lamp 3000lux, sunlight 10000lux
  Circuit protection   Reverse polarity and overload protection
  Output indicate  Power:green LED;  Output:red LED
  Ambient temp  -10~+55°C (No freeze)
  High voltage resistance    1000V AC,  50/60HZ, 60s
  Insulation resistance  ≥50MΩ(500VDC)
  Anti-vibration    Amplitude 0.75mm, frequency 10~50Hz
  Anti-shock  500m/s2  (50G)for 3 times of X,Y,Z direction
  Protection degree  IP65
  Housing material  PC+ABS
  Connection   2m PVC Cable
  Shanghai Lanbao Sensing Technology Co.,Ltd.
 Product datasheet link: http://www.shlanbao.cn/en/product/show.aspx?classid=136&id=1390

Feature :
------------------------------------------------------------------------
With NPN/PNP, NO/NC output method at the same time.
Adjust function with time delay control.
Sensitivity adjust function allowed the user adjust base on the different object.
Quickly responses, high frequency,
Anti-electromagnetic and anti-interference of other lights

Optic Fiber Sensors Application

------------------------------------------------------------------------
Optical fiber sensors are widely used in food, packaging, electronics and other automation Industry.
Usually used for mechanical engineering and product manufacturing process a small position in space and high precision of the occasion, from the detection, counting, position control and so on.



Advantage of Lanbao:
------------------------------------------------------------------------



About Lanbao :
------------------------------------------------------------------------

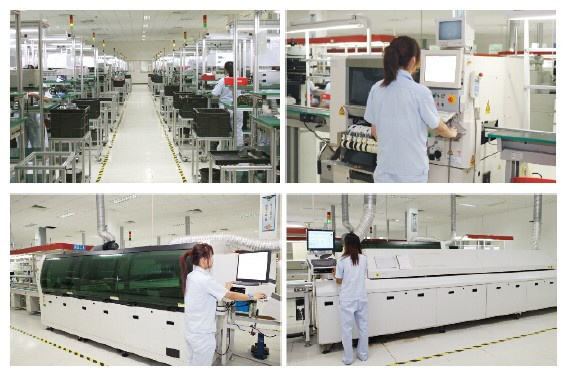

Established in 1998, Shanghai Lanbao Sensing Technology Co., Ltd. is a leading industrial automation products supplier in China.
Our main businesses are industrial sensors R&D, production, sales and application, providing customers with standard and individual products and systems.

Lanbao has got ISO9001:2008 quality management system,ISO14001:2004 environment management certificate and applied RoHS Environmental directives.
Our series products are with  UL, CCC, CE certificates.

Including inductive sensors, capacitive sensors, photoelectric sensors, pressure/tension/flow sensors and encoders, totally over 30 main series / 4000 specifications. Many of which reach international leading level.

 Focus on quality first, reasonable price, timely delivery, and thoughtful service, Lanbao is always insisting on creating maximal value for customers.
Based on comprehensive and efficient service, Lanbao's products have extended to over 50 countries in the world.



Contact us :
------------------------------------------------------------------------

Shanghai Lanbao Sensing Technology Co.,Ltd.
No. 228, Jinbi Road Jinhui Industrial Park Fengxian Area, Shanghai 201404, China
Office Tel: +86 21 57486188
Fax: +86 21 57486199
Web: http://www.shlanbao.cn/
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.

Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.

Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
