| Prod Model: |
L12/84216 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| THD: |
<0.005% |
| Speaker System: |
Passive |
| Speaker Material: |
Ferrite |
| Application: |
Stage |
| Certification: |
ISO |
| Monitor: |
None |
Product Description

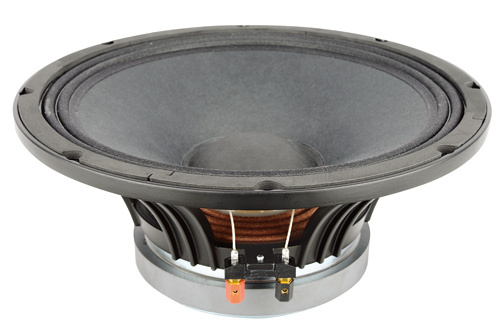

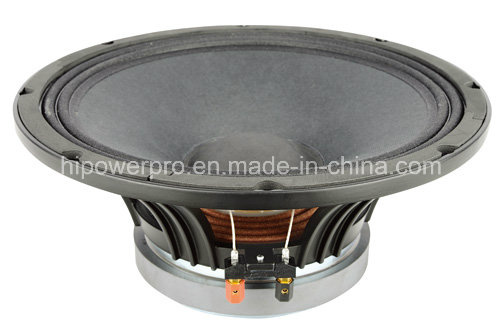

L12/84216-12 inch PA Professional speaker woofer For Pro Audio system
1. PA speaker which is ideal for high quality compact 2 or 2 way systems
2.12" woofer of good price and good quality
3.This speaker is of low distortion
4.Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.
5.details:
| General Specifications |
| Nominal Diameter | 300/12 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling | 300 | Watts |
| Program Power | 600 | Watts |

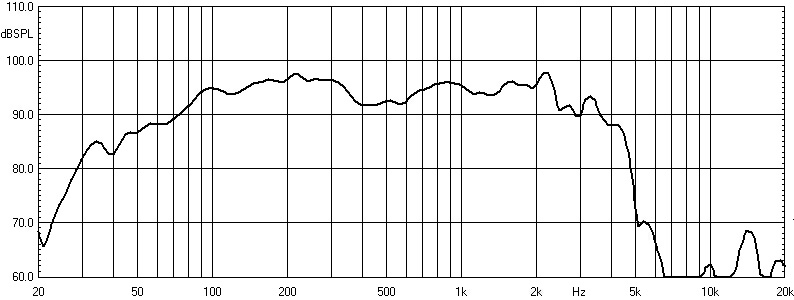

| Sensitivity(lw/lm) | 95.5 | dB |
| Frequency Range | 39-2.5k | Hz |
| Minimum Impedance(Zmin) | 6.3 | ohm |
| Voice Coil Diameter | 64/2.5 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 16 | mm |
| Number of layers | 2 | (inside/outside) |
| Magnet gap depth | 8 | mm |
| Surround Shape | M-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1.1 | T |
| Magnet Material/Mass | Ceramic | |

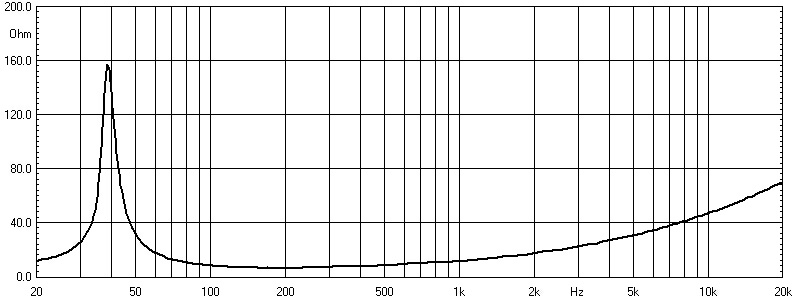

| Thiele-Small parameters |
| Resonance frequency | Fs | 39 | Hz |
| DC resistance | Re | 5.3 | ohm |
| Mechanical factor | Qms | 9.7 | |
| Electrical factor | Qes | 0.33 | |
| Total factor | Qts | 0.32 | |
| Mechanical compliance | Cms | 0.3 | mm/N |
Mechanical resistance
of suspension losses | Rms | 1.43 | mech-ohm |
| Effective Moving Mass | Mms | 57 | gr |
| Half-space efficiency | Eff | 2.11 | % |
| BL Factor | BL | 14.8 | T.m |
| Equivalent Cas air load | Vas | 125.7 | liters |
| Effective piston area | Sd | 0.0552 | m2 |
| Max.linear excursion | Xmax | 6 | mm |
| Voice-coil inductance | LelK | 1.1 | mH |
| Mounting Information |
| Overall Diameter | 318 | mm |
| Bolt Circle Diameter | 301 | mm |
| Bolt Hole Diameter | 6.5x9 | mm |
| Baffle Cutout Diameter | 287 | mm |
| Overall Depth | 135 | mm |
| Net Weight | 5.2 | kg |
Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.
Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.
In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.
Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.
We are looking forward to establishing long-term relationships with you.
