Haining Jixiang Solar Energy Co., Ltd. >> Jxnp Non-Pressure Bearing Type Solar Water Heater

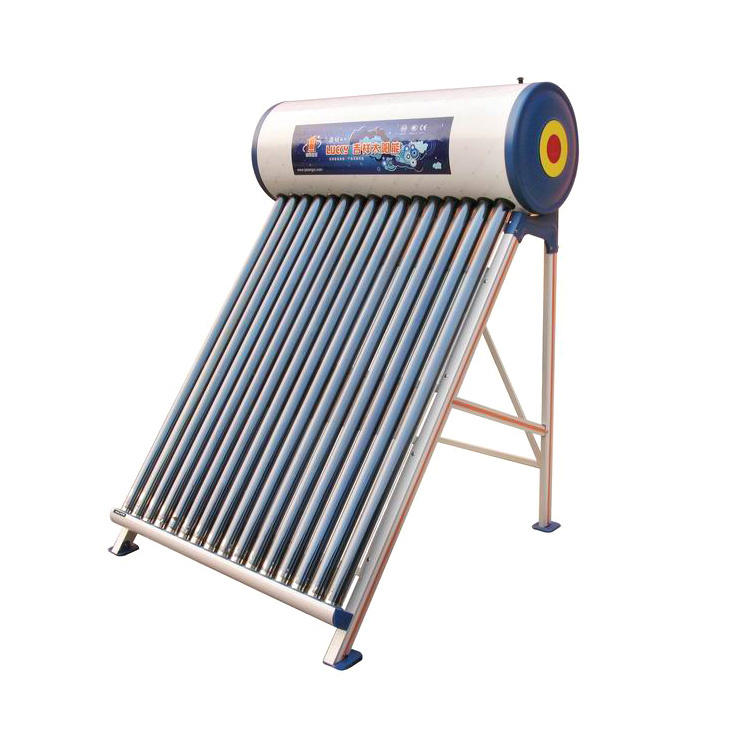

Jxnp Non-Pressure Bearing Type Solar Water Heater

Jxnp Non-Pressure Bearing Type Solar Water Heater
Price: US $ 200/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: JX-NP-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Tank: Thickness 0.35mm Galvanized Steel
Inner Tank: Thickness 0.5mm 304 2b Food Grade Stainless Steel
Vacuum Tube: Three Target 58*1800mm Vacuum Tube
Bracket: Strong Galvanized Steel Suitable for Both Flat Roo
Collector Components: Glass Vacuum Tube
Pressure: Unpressurized
Interior Material: Stainless Steel
Certification: CCC

Product Description

JXNP non-pressure bearing type Solar Water Heater
We provide Solar Water Heater, Water Heater, Hot Water Heater, Solar Water Heaters, Solar Energy Water Heater, Solar Heat Collector, Hot Collector, Solar Water, Solar Products, Consumer Elctronic

The system of solar water heater relies on a natural Principle--"Thermosiphon". The key important point of these systems is that: The storage tank is always located higher than the collector.

As the sun's rays hit the all-glass evacuated solar collector tubes, the temperature of the water in the tubes rises making it less dense or lighter. And hot and lighter water naturally moves up to the top of collector and through the evacuated collector tube convert to the storage tank. This makes the colder and heavier water in water tank moves down to the bottom of the collector. That continuous displacement occurs naturally. So the users can get the hot water from the tank.

The system of solar water heater is an "Open Circuit" non-pressure system. By the air vent valve on the top of the storage cylinder and the over flow pipe in the bottom it maintains open to the air.

Materials:
Inner tank: Imported 304 2B food grade stainless steel. Thickness is 0.5mm
Outer tank: Imported nacre white armor plate or stainless steel
Insulating layer: 50mm-60mm high pressure polyurethane foamed
Bracket: Premium cold roll bracket stainless steel screw
Vacuum tube: 3.3high borosilicate glass
The vacuum tube of our solar water heater has the high absorption rate and low emission rate,
The absorption rate is 0.90-0.93 (AM1.5)
The emission rate is 0.05-0.075 (85degree)
Vacuum tightness is P≤ 5.0*0.0001PA
Idle sunning property parameters is Y=220-260sqm. Degree/KW
The average heat loss coefficient is Ult=0.6-0.7W(sqm. Degree)
It means the temperature in the water tank is range from 50degree to 95degree.

Characteristic
1. Best angle of stand makes the heat efficiency is very high.
2. All of the inner tank is produced by high-frequency ring welding or argon arc welding, which is very durable; High density
3. The insulating layer made of high pressure polyurethane foamed
4. The water inlet or out let can be set up as your asked.
5. Intelligent controller or electrical heat element can be choosed for this system. According to your requirement.
6. Advanced technology, which can dispose of scale, bacteria and prevent electricity
7. Environmental friendly
Haining Jixiang Solar Energy Co., Ltd. is a new high-tech company specializing in the utilization of solar energy. Located in Haining Yuanhuan industrial zone in Zhejiang province, the company has high-quality technique staff. With strong integration capability and global resources, Jixiang Solar Energy Co., Ltd is moving forward to establish an international brand.

The Lucky Series water heater, Lucky Sanbao, Lucky Ruyi, Lucky Fuyun, Lucky Hexie, and Lucky Haoyun, are conducted with serious quality control measures and have earned us ISO 9001: 2000 certificate for its management & products, CCC certificate for "Qualified Products" and CE certificate. The brand of "Window of Lucky" is listed as "Recommended Brand" of CCTV. Besides, the series have also been regarded as quality safe products. Due to Lucky's good image and high quality, our products are popular in Spain, Italy and many other European countries.

Jixiang focuses on solar energy exploration and attaches great importance to leading-edge research and innovation to make itself a step forward in future market. Been a globalized enterprise that has globalized staff, Lucky firmly believes that the constant rule of market is constant change, challenge is the drive of innovation, thus Lucky never says "NO" to market. With the manufacturing excellence, Lucky Solar Energy Co., Ltd is fully integrated with Lucky's global manufacturing system. With world-class facility, Lucky offers substantial and timely service not only to the domestic market but also to the rest of the world. "The utmost success of the company is customers' satisfaction" is Lucky's tenet.

Guided by business philosophy, Lucky has experienced success in the three historic periods, noted as brand building, diversification and globalization. It has long attached significance to innovation in satisfying the demands of worldwide consumers and realizing win-win performance between Lucky and clients. Facing fierce global market competition, Lucky has launched the global brand building strategy and updated the spirit, "The relentless pursuit of perfection", with an aim to gain global recognition and sustainable development.
