| Prod Model: |
JXIP-serial |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bracket: |
Aluminum Alloy, Stainless Steel |
| Heat Pipe Material: |
Tu1 Copper |
| Bracket Meterail: |
Aluminium Alloy or Galvanized Steel |
| Color: |
Black, Grey,White, Blue Optional |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE, ISO, Sokar Keymark, SRCC, SGS |
Product Description
Solar water heater, Solar hot water heater. Solar hot waters. Solar heaters. Solar.
FEATURE:
1. Special high quality Insulated material to reduce the heat loss
2. Excellent workmanship to guarantee the decent appearance, change for your request
3. Long life span and easy operation
4. This type of solar water heater can work in high pressure
5. It uses the heat pipe which can deliver the heat rapidly
6. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
7. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakag
8. Hot water with pressure make you bathe more comfortable
ADVANTAGES:
1. This type of solar water heater can work in high pressure
2. It uses the heat pipe which can deliver the heat rapidly
3. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
4. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakage
5. Hot water with pressure make you bathe more comfortable.
|

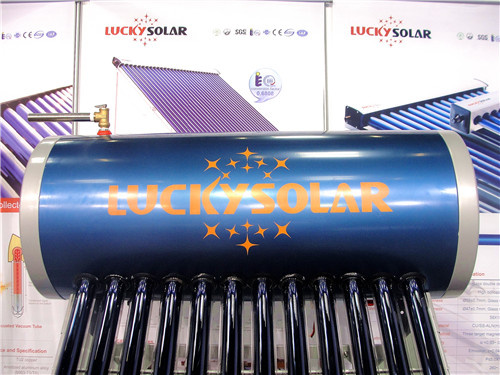

Integrated Pressurized Solar Water Heater TECHNICAL DATA |
|
WATER STORAGE TANKS |
|
Material of out tank |
High quality Painted steel/ Stainless steel. |
|
Material of inner tank |
food grade SUS304-2B stainless steel. |
|
Tank insulating layer |
Imported polyurethane,can conserve the heat for maximum 72 hours |
|
Water tank preformed hole |
7 holes: Magnesium bar, T/P valve, sensor hole, water inlet and outlet hole, electric heater,drainage. |
|
Tank size |
420,460 470 475 550,580mm or customer demand |
|
Welding: |
Argon arc welding |
|
VACUUM TUBES |
|
Tube structure |
All-glass double deck co-axial structure |
|
Glass material |
High borosilicate 3.3 glass |
|
Outer tube dia. & thickness |
Ø58±0.7mm; Glass thickness 1.6±0.15mm |
|
Inner tube dia.& thickness |
Ø47±0.7mm; Glass thickness 1.6±0.15mm |
|
Tube size |
58*1800mm |
|
Absorptive coating property |
Structure |
AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN |
|
Sediment method |
Single target or Three targets - magnetron sputtering plating |
|
Specific absorption |
0.90-0.93(AM1.5) / 0.93-0.96(AM1.5) |
|
Emission ratio |
0.05-0.075(800C±50C) / 0.04-0.06(800C±50C) |
|
Solar irradiation for obtaining a preset water temperature |
Φ=58 H≤4.7MJ/m² |
H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m² |
|
Vacuum tightness |
5.0×10¯³ Pa |
|
Idle sunning property parameters |
220-260 m².C/KW / 260-300 m².C/KW |
|
Average heat loss coefficient |
ULT=0.6~0.7W/(M2.0C) / ULT=0.4~0.6W/(M 2.0 C) |
|
Resistant Hail |
≤25mm |
|
Useful life |
15 years |
|
HEAT PIPES: |
|
Heat pipe material |
TU1 copper |
|
Heat pipe condenser size |
Top: Dia.14mm, Body: Dia.8mm |
|
Max.working temp |
-30 ~250C |
|
ΔT |
35C(Radiation>=800w/m2.day) |
|
Start-up Temperature |
<=30C |
|
Resistant Hail |
≤25mm |
|
Useful life |
15 years |
|
BRACKET |
|
Bracket: |
Stronger galvanized steel / Stainless steel/aluminium alloy |
|
Bracket angle: |
0, 18,22,38,45 optional, pitched roof, flat roof optional. |
|
Fastening pieces: |
Made of zinc-coated stainless steel.. |
|
MODEL No. |
Tube Size |
Tube No. |
Capacity |
Aperture Area |
Load Qty 20GP/40HQ |
Reommending for family |
|
Dia.*L |
(litres) |
( m 2 ) |
(sets) |
(people) |
|
JXIP-58-10 |
58x1800mm |
10 |
100 |
0.93 |
68/164 |
2 |
|
JXIP-58-12 |
58x1800mm |
12 |
120 |
1.11 |
59/143 |
2 |
|
JXIP-58-15 |
58x1800mm |
15 |
150 |
1.39 |
48/116 |
3 |
|
JXIP-58-18 |
58x1800mm |
18 |
180 |
1.67 |
40/97 |
4 |
|
JXIP-58-20 |
58x1800mm |
20 |
200 |
1.86 |
37/89 |
5 |
|
JXIP-58-24 |
58x1800mm |
24 |
240 |
2.23 |
31/75 |
6 |
|
JXIP-58-30 |
58x1800mm |
30 |
300 |
2.79 |
25/61 |
7 |
|
JXIP-58-36 |
58x1800mm |
36 |
360 |
3.34 |
22/52 |
8 |
