Enping Lichuang Sound Equipment Factory >> Infrared Automatic Frequency UHF Four Channels Wireless Microphone

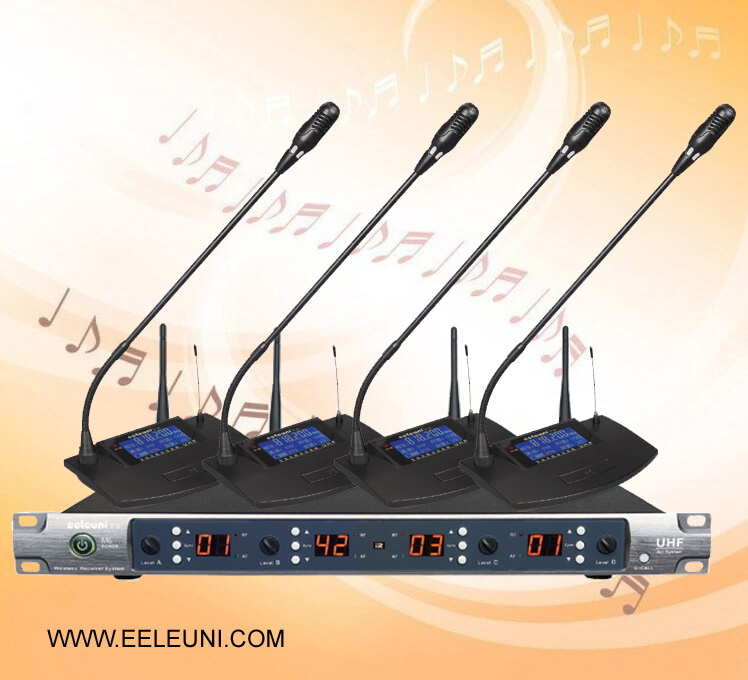

Infrared Automatic Frequency UHF Four Channels Wireless Microphone

Infrared Automatic Frequency UHF Four Channels Wireless Microphone
Price: Negotiable/Set
Trade Terms: FOB,EXW
Min Order: 100/Set
Pay Type: T/T,Western Union
Prod Model: M6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Receiver Size: 480*210*50mm
Application: Meeting
Sound Channel: Mono
Signal Transmission: Wireless
Wireless Technology: UHF
Output Impedance: 50-1000Ω
Connector(',s): XLR 3 Pin

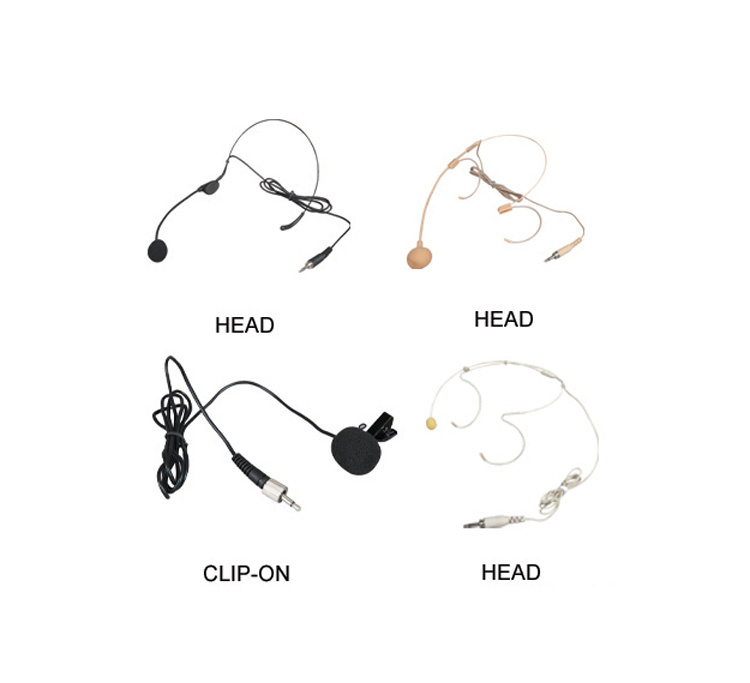

Style: Headset Mic, Clip-on Mic, Handheld Mic
Directivity: Super Heart-Shaped Directivity

Product Description

-- There are 4 channels in one receiver, can supply 4 transmitters to use.
-- 99 selectable frequencies in each channel.
--  It can use 4 receivers in the same place; it means 16 transmitters can be used at the same time.
-- The front panel of the receiver is provided with a power supply indicator lamp and the signal lamp which can reflect the working status clearly.
-- Using 4 card antennas for receiving.
-- Using distance is 80 meters in the perfect place.


Receiver
Carrier Frequency RangeUHF 730-850 MHz
Frequency Stability±0.001%
Max Deviation Range±50KHz
Modulation ModeFM
S/N Ratio>105dB
T.H.D<0.5%@1KHz
Sensitivity1.2/UV@S/N=12dB
Power SupplyDC 14V  800mA
Audio OutputIndependence: 0-400mV
Mixed Style: 0-300mV

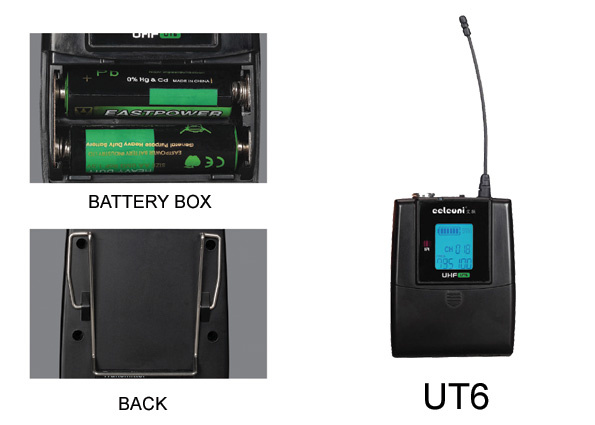

Transmitter
Oscillation ModePLL Synthesized
Carrier Frequency RangeUHF 730-850 MHz
Frequency Stability±25KHz
Power SupplyDC 3V (1.5V AA*2)
Power Consumption100mA
S/N Ratio>105dB
F/N Ratio>80dB
Dynamic Range≥100dB
TypeCondenser / Dynamic
Polar ModeSuper Heart-Shaped Directivity
Frequency Response40Hz – 20KHz
Sensitivity-47±3dB@1KHz
Temperature Range-10ºC - +40ºC

Li Chuang Sound Equipment Factory is located in Enping city--the base of microphone production of China, Guangdong Province. Our company is founded in 2006. We are a high-tech enterprise which combined with the design, development, production, sales and after-sale service. Our company specializing in the production of wireless microphones, wireless receiver and other sound equipment etc.

Our professional technology is leading in the same industry. Through several years of unremitting efforts, our company had developed more than 30 products, and gained many national patents. Our products are hot-selling domestic and abroad. The quality of our products has got the affirmation from customers.

Our company has a mature experience of OEM and ODM. We take"Technique Advanced, Explore Bravely, Quality First and Customers Superior"as the principle to provide the best products and service for customers. We sincerely welcome the worldwide clients to consult the cooperation and create mutually beneficial business relationship in the future.
