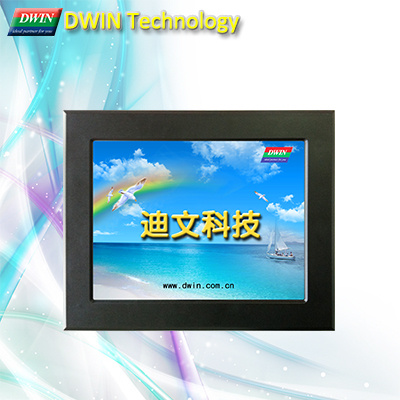

Industrial 9.7" HMI/TFT LCD Module, Touch Screen, RS232/485 (DMT10768T097_18WT)

Industrial 9.7
Price: Negotiable/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: DMT10768T097_18WT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 9.7 Inch
Ratio: 4:3
Communication: Serial RS232/RS485
Type: TFT
Application: Indoor
Aspect Ratio: 4:3
Feature: Touch Display
Screen Size: ≤17"
Interface Type: Serial Port

Product Description

Smart UART-interface, TFT LCD Module with RS232 / RS485 serial communication, supporting MODBUS protocol. Specially designed for PLC / MCU application. Up to 65K color (16-bit) true color display, which could make your products more attractive. Reliable performance with wide temperature/voltage range, achieving it's various application whatever in industrial & consumer field with its water-proof plastic enclosure. With self designed DGUS_SDK software and pre-installed commands, anyone could design their idea interface in a short time.
Item Parameter Description
LCD type TFT
Resolution 1024×768 90°rotation by configuration file (768×1024)
Color 65K (65536) colors 16 bit color 5R6G5B
Active Area(A.A.) 196.6mm(W)×147.5mm(H)
Touchscreen type 4-wire resistance touchscreen
Touchscreen inaccuracy +/- 0.5% Calibrate whenever running
Backlight type LED The half brightness life will not less than 30000 hrs
Brightness 300nit 64 levels adjustment;
Touchscreen control brightness and light time.
SD slot SD/SDHC FAT32 file format;
Download and upgrade pictures, fonts and configuration file.
RTC accuracy 1 sec/24 hours 25 celsius
Other hardware Buzzer Software controls tweet;
Automatically sound prompts when effective touch button is clicked






















l  Working environment & Reliability Test
Item Conditions Min Typ. Max Unit
Working Temperature 60%RH at 12V voltage -20 25 70 o C
Storage Temperature - -30 25 85 o C
Working Humidity 25 o C 10% 60% 90% RH
Aging Test - - 24 - H
ESD Protection grade IEC Class 4 (Contact and In-Air)
Protection grade IP65 (Front)
Other certification CE, RoHS










l  Interface
Item Description
Min
Typ
Max
Unit
Power voltage DC 6.0V-42.0V, with Reverse Polarity Protection
Power consumption 4.8W (12V, 400mA)
Interface model N81
Interface protocol RS485 & RS232
Socket 6Pin_3.81mm












l  Software features
Item Description
Software platform DWIN DGUS system software
Register space 256 Bytes
Variable storage space 56K Bytes
Fonts & icons storage space 32M Bytes
Pictures storage space 224MB, 145 full-screen pictures








l  Installation features
Item Description
Case material ABS + PC engineering Plastic
Case color Black
Dimension 257.0(mm)×208.0(mm)×31.0(mm)
Hole size 245.3(mm)×196.0(mm)
Installation depth 31.0(mm)  (incl. 6pin_3.81mm Phoenix Connector)
Weight 785g
Accessories Waterproof rubber gasket, buckles
