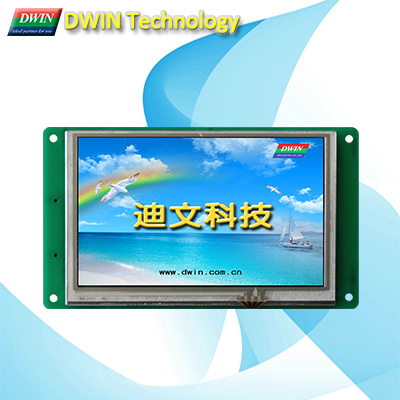

Industrial 5.0" Uart TFT LCD Module/HMI, Touch Screen Optional, Dmt48270t050_01W

Industrial 5.0
Price: Negotiable/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: DMT48270T050_01W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 5.0 Inch
Ratio: 16:9
Communication: Serial RS232/Ttl
Type: LCM
Display Technology: TFT
Usage: Small-sized LCM
Viewing Angle: TN+FILM

Product Description

Smart UART-interface, TFT LCD Module with RS232 / TTL serial communication; It could be controlled by any normal MCU with serial interface. Up to 65K color (16-bit) true color display, which could make your products more attractive. Reliable performance with wide temperature/voltage range achieve it's various application whatever in industrial & consumer field. With self designed DGUS_SDK software and pre-installed commands, anyone could design their idea interface.
Item Parameter Description
Color 65K (65536) colors 16-bit color 5R6G5B
Active Area (A.A.) 110.9 mm (W) ×62.8 mm (H) 480*272
View Area (V.A.) 113.9 mm (W) ×65.8 mm (H) 480*272
Resolution 480*272 90° rotated display (272*480)
Backlight LED -
Brightness 300 nit (DMT48270T050_01WN) 64 levels adjustment
250 nit (DMT48270T050_01WT) 64 levels adjustment










l  Voltage & Current
Item Conditions Min Typ Max Unit
Power Voltage Voltage jumper is ON 3.6 5.0 6.0 V
Voltage jumper is OFF (Default) 5.0 12.0 42.0 V
Operation Current VCC = +12V, Backlight on - 250 - mA
VCC = +12V, Backlight off - 180 - mA
Recommended power supply: 12V 0.5A DC








l  Reliability Test
Item Conditions Min Typ Max Unit
Working Temperature 60%RH at 12V voltage -20 25 70 o C
Storage Temperature - -30 25 85 o C
Working Humidity 25 o C 10% 60% 90% RH
Protective Paint - - None - -
Aging Test - - 24 - H








l  Interface
Item Conditions Min Typ Max Unit
Baud Rate Standard 1200 115200 921600 bps
User Set 1200 - 921600 bps
Output Voltage
(TXD, BUSY)
Output 1, Iout = 1mA 3.0 3.2 - V
Output 0, Iout = -1mA - 0.1 0.2 V
Input Voltage
(RXD, I/O0)
Input 1, Iin = 1mA 2.0 3.3 15.0 V
Input 0, Iin = -1mA -15.0 0.0 0.3 V
Interface Mode is determined by Jumper: ON = 8N1, 3.3V TTL/CMOS; OFF = 8N1, RS232
Socket 10Pin_1.0mm FCC, 8Pin_2.54mm
USB None
SD slot Yes (SD/SDHC, FAT32 file format)















l  Memory
Item Parameter Min Typ Max Unit
Flash Space of Font - 32 - MB
Picture Storage (256MB) - - 869 Pcs
Picture Storage (2GB) - - 7807 Pcs
RAM Variable Storage Space - 56 - KB







l  Peripherals
Peripherals Acquired
Peripherals DMT48270T050_01WN : RTC, Buzzer
DMT48270T050_01WT : 4-wire resistance touchscreen, RTC, Buzzer





l  Packing Capacity & Dimension
Dimension
Dimension 143.5 (W) × 80.9 (H) × 14.0 (N) / 15.6 (T)mm
Net Weight 131g (DMT48270T050_01WN)
149g (DMT48270T050_01WT)
