Network Support: |
Ethernet |
Light Transmittance: |
90% |
Display Ration: |
16:09 |
Surface Treatment: |
Hard Coating (3 H) and Antidinic Plariser |
Communication Interface: |
USB |
Response Speed: |
< 20 Ms |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
6mm |
Pixel Configuration: |
1R,1G,1B |
Pixel Density: |
27,777 dots / m² |
Scanning Mode: |
1/8 Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
IP Rating: |
IP43 |
System Operating Platform: |
Windows XP,Windows 7,Windows 8,Linux |
Product Description
Main Hardware Indicators |
Transparent Displays | Panel size | 10.4 | 21.5 | 32 | 42 | 47 | 55 | 65 | 84 |
Display size(mm) | 211*158 | 476*268 | 698*392 | 927*522 | 1039*584 | 1209*680 | 1428*803 | 1860*1046 |
Resolution Ratio | 1024*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Light Transmittance | 90% |
Viewing Angle | 70/70/75/75 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 88/88/88/88 | 89/89/89/89 |
U/D/L/R |
Display Ration | 16:09 |
Surface Treatment | Hard coating (3 H) and antidinic plariser |
Whole machine size | It can be customized according to customer's requirements |
PC configuration (according to customer requirements) | CPU 1037U, CPU Frequency 1.8 GHzCPU 1037 u, faster - 1.8 GHz
|
1 * SO - DIMM, DDR3 1333/1066 MHZ, maximum support 8 G, the standard configuration 4G |
1 * SO - DIMM, DDR3 1333/1066 MHZ, maximum support 8 G, the standard configuration 4G |
Hard disk 2*SATA 2.0,2*MINI-PCIE, standard configuration 64G SDDSATA |
Audio interface, integration Realtek ALC662HD digital audio decoder, support t Line - out, MIC - in interface |
Audio , video and image format | Video broadcast formats including MPEG4, MPEG2, MPEG1, MOV, AVI, WMV, TS, FLASH, etc |
Audio formats: WAV, MP3, ACC, etc |
Image formats: JPEG, PNG, BMP, GIF, etc |
Other formats: WORD, PowerPoint, EXCEL, etc |
I/O Interface | Four USB interface, can connect USB keyboard and mouse and USB flash drive |
A Realtec 8111E gigabit RJ45 interface |
A HDMI input interface |
A VGA input interface |
Two standard single audio interface (MIC and Lineout) |
Network Support | Ethernet, support WIFI, 3 G wireless peripherals extension |
Operating System | Windows XP,Windows 7,Windows 8,Linux |
Touch Screen | Inductive way: built-in infrared induction multi-touch technology |
Touch mode: opaque objects such as finger and pen . |
interpolated resolution : 32768 * 32768 |
Communication interface: USB |
Clicks in theroy: unlimited times |
Response speed: < 20 ms |
Function of Information release system1.Flexible B/S architecture, the headquarters unified control, subordinate agency authorization management,
playing terminal according to the schedule (real-time + local play)
2.Support custom schedule ,playing function, emergency insert function, periodic playing function, default
playing function
3.Specify send: the programs real-time or specified time sent to the designated end or group;
4.Update: playing terminal can set by designated terminal or ID to update their programs;
5.File encryption: file encryption for all data transmission, providing end-to-end MD5 information security
6.Transmission control: support breakpoint continuingly, P2P download, regular download, real-time download
and flow control.
7.Support weather, time, stock, foreign exchange, flights, TV and so on dynamic real-time components
8.Support for scrolling marquee, free split screen
9.Support the broadcast schedule, playlists function
10.Rigorous approval process, can be set level 1, level 2, level 3 of approval administrator
11.Comprehensive approval setting, approval from the lower to upper application, and can be set by
emergency degree
12.Perfect approval operation:when the superior approval the programms, the broadcast content, playing time,
and playing site can be auditing and modified, evaluate whether the program is approved.
13.Terminal monitor management, real-time monitor the screen of the business branches, and check system
operation log at any time.
14.Terminal remote management, remote real-time managemen for terminal shutdown time, volume, breaking
news, pause/play.
Functional features

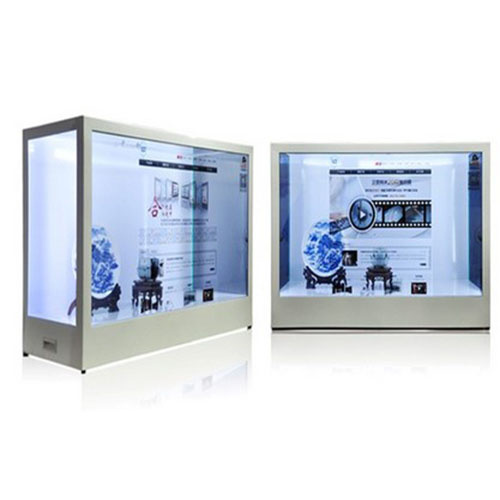

(1) High light transmittance LCD:
high light transmittance transparent screen, see the object inside through broadcast images, the
dynamic advertising information combined with static objects such as terminal product and shopwindow,
to strengthen the brand experience and shopping experience.
(2) Infinite perspective:
transparent panel adopts advanced technology,unique liquid crystal molecules planar switching method, the full range of visual angle can reach 80 degrees; Display technology application is colorless, color
gamut rising sharply , picture is more exquisite and lively, no matter any angle you can enjoy a rich color image as vivid as life.
(3) Perfect advertising playing functions:
support MPEG1, MPEG2, MPEG4, MP3, AVI, JPEG etc. multimedia formats , automatic circulation broadcast advertising program; Support 720P HD broadcast and scrolling marquee, timeing switch ,
etc.
(4) Humanization and intelligent switch Settings:
timing switch according to the customers' different requirments, which is match with the humanized management in senior hotels, hospitals and communities.
Trade Terms:1. Payment: 30% before production ,full payment before shipping by TT or Paypal.
2. Delivery Time:2-5 days for sample, mass production depends on the QTY.
3. MOQ: 500PC.
4. Customers can freely choose the shipping way, TNT, DHL, FedEx, by air or by sea etc.
We have professional freight forwarders, on the transportation we will not earn customers
one penny of profit. Of course customers also could use your own freight forwarders, we
will to fully cooperate with you.
5. Shipping port: Shenzhen PortOur service:1.Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service will surely be offered by the well-trained and experienced staffs
3. Protection of your sales area, ideas of design and all your private information.
Creative Galaxy Greative (Shenzhen) Co., Ltd, a wholly foreign-owned enterprise was founded in 2002, with the registered capital of 5.08 million. Our company is an integrated high-tech enterprise which engaged in intelligent display and intelligent lighting. After years of development, we have been successfully developed and produced various intelligent display products and intelligent lights. Intelligent display products include single and online version LED screen displaya, multi-screen display, transparent display cabinets, touch query machine, indoor and outdoor LED message display; Intelligent lights include LED tube light, LED spot light, LED ceiling light, LED bulb, track light and other accessories such as power supply, support, sensors.
