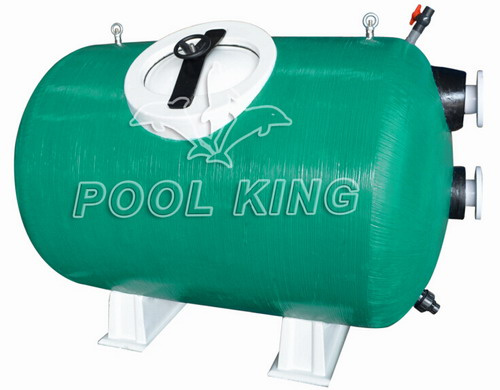

Horizontal Bobbin Wound Sand Filter for Swimming Pool

Horizontal Bobbin Wound Sand Filter for Swimming Pool
Price: US $ 2000/Piece
Trade Terms: EXW
Min Order: 2/Piece
Pay Type: T/T,Western Union
Prod Model: HL series filter
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Filter Dia: 1.2m~2m
Filter Lenght: 1.9m/2.3m/2.5m/2.7m/3m3.5m/4m/4.5m
Usage: Environmental Protection
Motive Force: Pressure
Certification: CE
Type: Water Treatment
Style: Horizontal

Product Description

Features:
1. Horizontal sand filters are UV inhibited filament wound structural fiberglass tanks
2. Structural fiberglass/polyester bases for superior tank support
3. Fully pressure tested at factory
4. Exclusive features for superior performance
5. Metric and imperial piping connections available
6. Heavy duty packaging
7. Suitable for alternate filter media8. Offering attractive value to feature ratio


Specifications:
1. Maximum working pressure: 250kPa/36psi/2.5bar or 400kPa/58psi/4.0bar
2. Factory Testing Pressure: 400kPa/58psi/4.0bar or 600kPa/86psi/6.0bar
3. Maximum Water Temperature: 500 C
4. Size of Gravel: 1mm-2mm
5. Size of Silica Sand: 0.5~0.8mm

Application:
*swimming pool and SPA
*aguiculture
*industrial water treatment.


     Model
 Diameter mm Length MM Outlet mm High mm Flow m³/h Filter Area m²
 HL121900        1200      1900       90    1390      59       1.96
 HL122300        1200      2300       90    1390      73       2.42
 HL122500        1200      2500       90    1390      79       2.65
 HL122700        1200      2700      110    1390      86       2.87
 HL123000        1200      3000      110    1390      96       3.21
 HL141900        1400      1900      110    1600      67       2.23
 HL142500        1400      2500      110    1600      91       3.02
 HL143000        1400      3000      110    1600     110       3.67
 HL161900        1600      1900      110    1830      74       2.47
 HL162500        1600      2500      110    1830     101      3.36
 HL163000        1600      3000      160    1830     123       4.1
 HL182500        1800       2500       160     2050      112       3.74
 HL183000        1800      3000      160    2050     137      4.58
 HL183500        1800      3500      160    2050     162      5.41
 HL202500        2000       2500       160     2220      130       4.34
 HL203000        2000      3000      160    2220     159       5.3
 HL203500        2000      3500      160    2220     187      6.25
 HL204000        2000      4000      200    2220     216      7.21
 HL204500        2000      4500      200    2220     245      8.16
POOLKING is one of the largest and professional swimming pool equipment manufacturer in China, with active customers in more than 40 countries. We have over 20 years experience in the swimming pool industry has evolved into an integrated production centre for equipment relating to water technology. We constructed a 12000sqm productin facility in Guangzhou, China. Our main products are including fiberglass sand filter, underwater light, pool pump and other pool accessories. POOLKING 's R&D division has LED to the development of innovative products, meeting the challenges of change in the market place. The key to POOLKING 's success has been its pioneering fibergalss and plastic mouldimng techniques, as well as its efficient manufacturing processes.

POOLKING manufacture a complete range of high quality products and services to provide solutions for our customers, no matter where you are in the world, From Swimming pool and water park to aquarium and fish pond, we will provide you with rich ideas and an insight into the latest and most effective products on the market. We have a stringent quality control protocols to display our quality and the safety of our products, Poolking has been accredited with Internationally-recognised standards such as: ISO9001: 2008 for our factory, CE, SAFETY test report by China GUANGZHOU STATE BUREAU OF QUALITY AND TECHNICAL SUPERVISION, HEALTH certificate by CENTRE FOR DISEASE CONTROL AND PREVENTION OF GUANGZHOU PROVINCE on our products combined with our professionalism can make Poolking gain the trust and working partnership with our customers, enabling Poolking to become a brand that customers can depend upon and a brand that speaks for its quality, reliability, functionality and with a reputation
