Henan Yuchuang Machinery Manufacturing Co., Ltd. >> Hoist Lifting Carbonization Stove

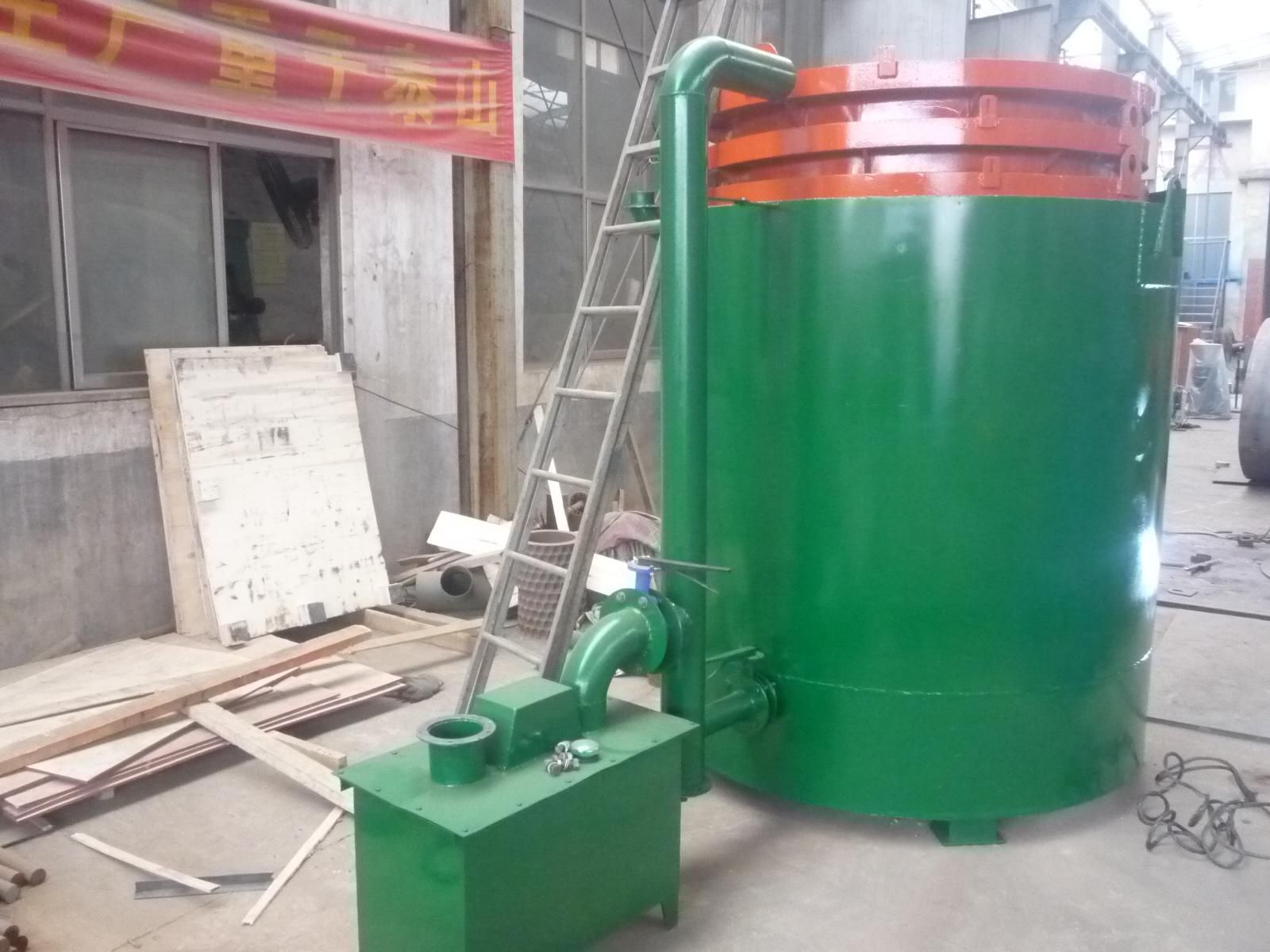

Hoist Lifting Carbonization Stove

Hoist Lifting Carbonization Stove
Price: US $ 12000-49999/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: THL-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Thl-2
Capacity: 4-6t Per Day
Carbonize Time: 6-8 Hours
Machine Size: 6.1X3.5X5.5m
Weight: 7.6t
Type: Air Flow
Smoke: Gas Scrubbing Apparatus
Power: 1.5kw
Colour: as Your Demand
Brand: Yuchuang

Product Description

Carbonization stove

Introductions:
1.Wood carbonization furnace in high carbonization rate and high output charcoal.
2.Energy saving,1000 kg charcoal only need 30kg firewood or 15kg liquid gs for heating the wood carbonization furnace.
3.Smokeless, For our carbonization furnace have little pollution, because our wood carbonization furnace have purification tank and 95% smoke will be reuse for heating the stove again.
4.The wood carbonization furnace is easy loading and unloading. we will also send you some steel basket for you to loading the wood and keep good look for the final charcoal.

Advantages:
1. High carbonization rate ,no smoking ,little pollution,high efficiency;
2. Newly developed carbonization kiln,which can dry the materials with the superfluous energy produced in the charring process.6-8 hours per stove and can work continuiously;
3. The tube of fume extraction will recycle the gas-flow which come from  the carbon basket during the charring process for continue warming the stove ,and it will save 70% energy consumption and recycle 95% smoking.

How does carbonization stove make charcoal?
The surface of wood (bamboo, wood briquette, nut shell, etc) will ignite spontaneously in the hypoxic condition. And this spontaneous combustion will produce heat. This heat and the external heat source will heat the stove at the same time, when the temperature reach 280 degree, the chemical structure of the wood will be changed by the hightemperature, and after long time heating, changing and decomposing, then we will get the black charcoal, combustible gas, and wood tar.


The inputting of wood briquettes

1. Open the cover of the furnace
2. Drop the circular stove out of the furnace, and lay it at certain region for inputting briquettes..
3. Open the cover of circular stove (inner pot) , and tilt it for inputting coconut shell
4. When finish the inputting of coconut shell, cover the circular stove, and put it into the carbonization furnace, then lay some fine sand along the circular stove for insulation.
5. Open the three outlet flue, and cover the furnace, along the roof of which lay some fine sand for insulation, and begin the process of carbonization.

Carbonization process

Make fire, begin the process of carbonization according to the technology.

The ending of carbonization process

At the ending of this process, stop carbonization by regulating the chimney valve.

Insulation and cooling

Open the cover of furnace, and block the outlet flue of circular furnace, sealing it with fine sand, and getting the circular furnace out for cooling.

Carbonizing circularly

Input another circular stove (inner pot) with briquettes beginning the second circulation of carbonization according the above way and technology.


Out getting of charcoal

When the charcoal is cool down, open the cover of circular furnace for out getting
Henan Yuchuang Machinery Manufacturing Co., Ltd., established in 1996, is located in Changge city, which is the manufacturing base of light construction machinery. Our location is very convenient: its only 25 kilometers to Zhengzhou International Airport, while 107 National Road, Beijing-Guangzhou Railway and Beijing-HongKong Highway cutting through our city.

As an integrated company with design, production, sales and after-sales service, we have two subordinate branch companies: construction machinery and electrical machine. We have successfully developed various types of machinery, including fully automatic CNC bar straightening and bending hoop machine, CNC bar straightening and cutting machine, bar bending machine, refractory gunning machine, grouting machine, concrete slag removal machine, concrete trowelling machine and kinds of electrical machines under 20KW. Now the products have quite good market in more than 20 provinces in China, South-east Asia and India.

Our factory covers an area of 20, 000 square meters, with more than 300 staff and 20 high-class engineering technicians. We have sophisticated equipments, complete testing system, powerful technical force, advanced manufacturing process and strict quality management. Our trademark "YUCHUANG" has been registered in National Trademark Office, and we have passed ISO9001-2000 certificate, becoming a famous backbone enterprise in central China. We see "develop by science and technology, marketing by quality, win customer by service" as our management conception; see satisfying customer's needs as our persistent pursuit.

We sincerely invite agencies from all over the world cooperate with us to make the mutual glory!
