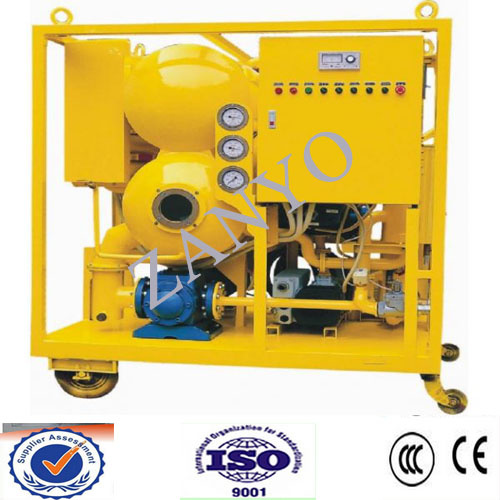

High Vacuum Switch Oil Purifier

High Vacuum Switch Oil Purifier
Price: US $ 6000-12000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ultimate Vacuum: <5PA
Working Vacuum: <133PA
Breakdown Voltage: >70kv
Working Pressure: <0.3MPa
Power Supply: According to Customers' Power Supply
Continuous Working Time: >200h
Structure: Mobile
Type: Suction Filter
Mechanical Principle: Vacuum
Usage: Oil and Gas Separation,Oil-Water Separator,Solid

Product Description

ZYD-II Application:
ZYD-II Double stages vacuum transformer oil filtration machine is used mainly applied in power plant, power station, transformer factory, electric power company, power transformation, metallurgy, petrifaction, machinery, traffic, railway and so on.
ZYD-II  is equipped with two horizontal evaporator , it can remove particles, dewater, degas from the old and new insulating oil. Especially for the 110KV-500KV large-scale transformer station.
ZYD-II oil filtration machine is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil.
Function:
A: removing the moisture. The final treated oil can achieve less than 3ppm
B: degassing. The final treated oil can achieve less than 0.1%;
C: removing particles. The final treated oil can achieve NAS2 Grade (Cleanliness Grade).
D:  vacuum oil injecting
E:  vacuum drying equipment for transformers
ZANYO outstanding features:
A.     Two Evaporation chamber is horizontal, the two chambers are separated, therefore the maximum utilization of degassing chamber space.
B.    Unique technology: Atomizer is placed upside down, the oil droplet average diameter less than 30µm, to increase evaporation area and extend the degassing time. Comparing to the one- vertical chamber machine, ZYD-II filtration system is 3 -fold and 5-fold quickly and effectively thank old machine.

Feature
I.    Double stage vacuum: high pumping speed, advanced dehydration and degasification system, Duplex-Stereo film evaporation technology, can remove particles, water, degas and hydrocarbon quickly and effectively, to improve the flash point and dielectric strength.
II.    Used for transformer installation and inspection, vacuum oil injecting and vacuum drying equipment for transformers.
III.    Precise oil filtration system, superior oil filter, Multi-stage precision filtration system, can remove mechanical particles effectively.
IV.    Advanced constant temperature control system, auto evel control system,auto defoaming system, pressure protecting system to make sure the high-performance of the machine
V.    Vacuum purification online work, unattended operation.
VI.    Humanization design, low noise, simple operation, long interval of maintenance time and low energy consumption.
VII.    Be equipped interlocked protecting system, oil discharge system, vacuum system, interlocked heating system, to make sure the machine run smoothly.
VIII.    Adopt short-circuit, Over voltage, Low voltage, Low battery voltage, Surge protection, loss phase protection


Optional Parts

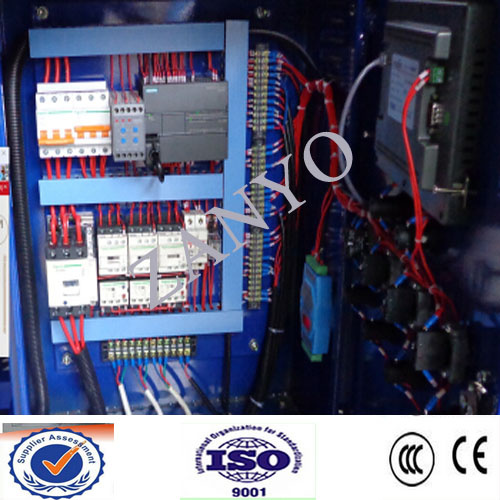

PLC control system, dynamic display
Online moisture tester
 Frequency changer
Flow meter

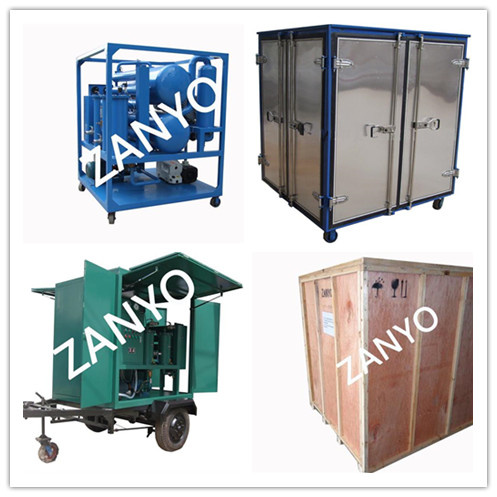

Structure: Mobile type, stationary type, trailer, enclosed doors, open type
Technical Parameters
Index name    ZYD-II    30    50    80    100    125    150    200    250    300
Flow rate    L/min    30    50    80    100    125    150    200    250    300
Ultimate vacuum    Pa    ≤5
Working vacuum    pa    ≤133
Working pressure    Mpa    ≤0.3
Working Temperature     ºC    30-80
Power supply        380V 50HZ 3Ph (According to customers' power supply)
Continuous working time    H    ≥200
Working noise    dB    ≤65
Heating power    KW    24    30    48    60    72    90    120    150    180
Total power    KW    28.5    34.5    53    68    80    99    132    165    198
Pipe
diameter    Inlet    mm    32    32    45    45    45    58    58    75    75
    Out    mm    32    32    45    45    45    58    58    75    75
Machine
dimension    L    mm    1500    1500    1800    1800    1850    2000    2000    2100    2150
    W    mm    900    1300    1300    1500    1500    1600    1900    1900    2000
    H    mm    1450    1550    1650    1850    1850    1850    2200    2250    2250
The final treated oil index:

Item    Guarantee indexes
Moisture content    ≤5PPM
Impurity size    ≤1 micron
Gas content    ≤0.1%
Dielectric strength     70kv


Long-term quality warranty of 2 years.
