| Prod Model: |
P6 Outdoor SMD Full Color LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Thickness: |
2.7cm |
| Module Weight: |
0.4kg |
| Brightness: |
≥6000CD/M2 |
| Cabinet Size: |
768mm*768mm |
| Optimal Viewing Distance: |
5m~50m |
| Delivery Time: |
15-20working Days |
| Warranty: |
2 Years |
| Interface: |
Hub75b |
| Power Supply: |
5V/40A 5V/60A |
| Max Power: |
25W |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FC,Is9001 |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777 |
Product Description
Product Description
High Resolution SMD Outdoor P6 Full Color LED Display
Outdoor LED Display Feature
1. full color outdoor led display has high brightness and adjustable contrast. This model has a good lighting accordance and has no mosaic.
2.outdoor LED display has larging view angle, it also has a better viewing effect for text, graphic and video ects, any LED in each pixel can be respectively repaired.
3. Computer VGA outdoor display with real-time synchronization output, and applies to all types of Internet connections with the media to transmit real-time information.
4.led screens have brightness strong, static driving scan mode, larger power-driven.
5. In the visual distance of the full color LED sign surface direct sunlight, display clearly visible.
6 is a professional LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display manufacturer.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 15-20 working days
Parameter
| The specifications of modules | |
| |
| Items | Parameter | |
| Product Model | P6 Outdoor SMD Full Color LED Display | |
| Module size | 192mm*192mm | |
| Pixel pitch | 6mm | |
| Pixel density | 27777dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Module resolution | 32dots(W)*32dots | |
| Module maximum power consumption | 35W | |
| Module Thickness | 2.7CM | |
| Module Weight | 0.4kg | |
| Driving method | Constant Current Driving | |
| Scanning method | 1/8scan | |
| Interface | HUB75B | |
| Brightness | ≥6000cd/m2 | |
| The specifications of cabinets | |
| |
| Cabinet size | 768mm*768mm | |
| Module quantity | 16pcs | |
| Power supply | 5V/40A 5V/60A | |
| Cabinet resolution | 128*128dots | |
| Optimal viewing distance | 5M~50M | |
| Optimal viewing angle | 160°(W) 120°(H) | |
| RHWorking temperature | (Work :-20°C~+60°C) | |
| System operating humility | 10%-95% | |
| The specifications of power supplier | |
| |
| Operating Voltage | AC220V±10% | |
| Average power consumption | 350W/H | |
| Maximum power consumption | ≤560W/m2 | |
| Electric current | ≤20mA(single LED) | |
| The specifications of control card | |
| Control Panels | Pentium4 or above | |
| Operating system | WIN98/2000/NT/XP | |
| Control model | Synchronization with PC | |
| The specifications of the main technical parameters | |
| |
| Driving device | Constant Current Driving | |
| Refresh rate | ≥600HZ | |
| Grey scale | RGB Each 256, can display 16.7M colors) | |
| MTBF | ≥9000hours | |
| Power switch | Automatic Switch | |
| Display Mode | 800*600/1024*768/1280*900 | |
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

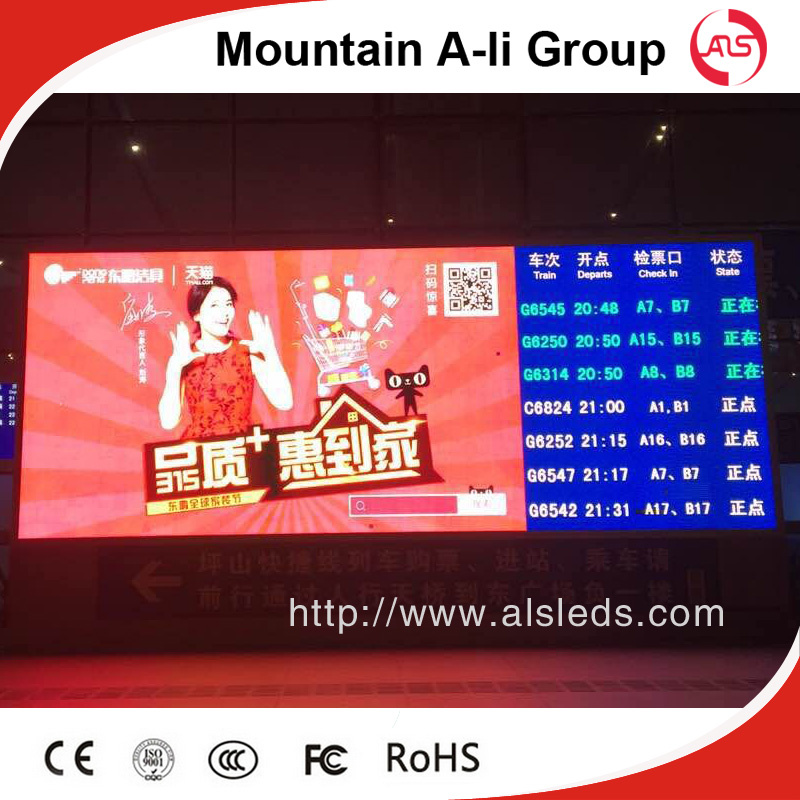

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
