Shenzhen Sansonic Technology Co., Ltd. >> High Qualiy Power Amplifier with High Performance (PAP30h)

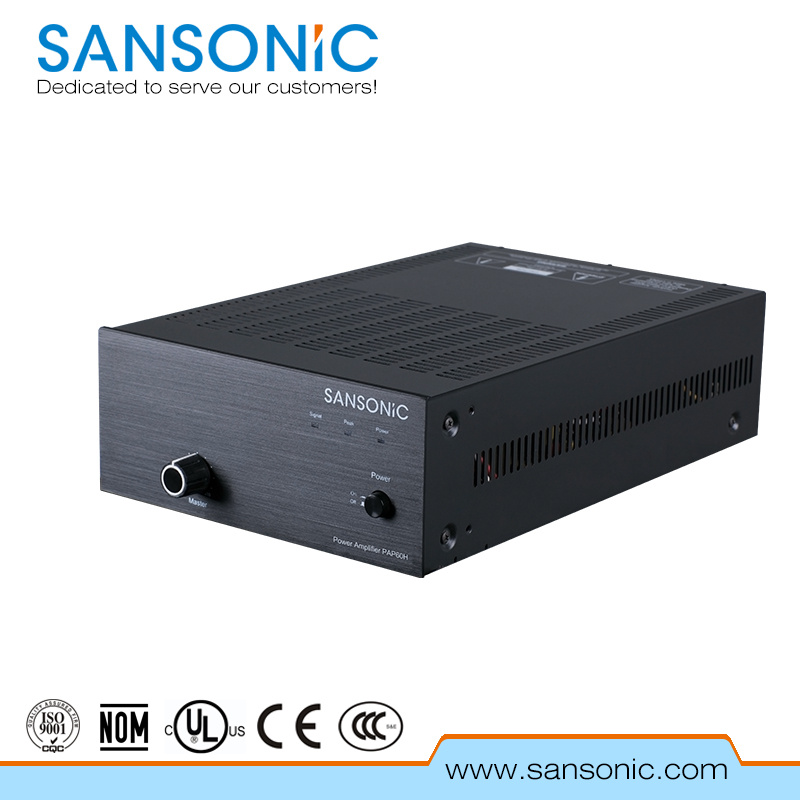

High Qualiy Power Amplifier with High Performance (PAP30h)

High Qualiy Power Amplifier with High Performance (PAP30h)
Price: US $ 78.00-156.00/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: PAP30H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature: -10 to +40
Size(W*H*D): 210mm X 93mm X 357mm
Weight: 5.6kg
Color: Black
Type: Professional Amplifier
Function: Post Amplifier
Voltage: AC 220V
Used For: Professional
Tube Type: Transistor Amplifier
Usage: Public
Sound Channel: Mono

Product Description

Product description
PAP 30H is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 30W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 70v and 40ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.

Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. Unbalanced 1 TRS type line input, unbalanced 1 line TRS output
3. Balanced 1 × LR type line input, balanced 1 × LR type line output
4. The panel has volume adjustment knob, the back board has switch, turn off the switch when many equipment are connected to eliminate the circuit noise of earth wire
5. Build-in short circuit, overload and overheat automatic protection
6. Two rated power output: Constant pressure output and Scheduled output resistance

Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Specification
ModlePAH30H
Power requirment                   110-125V AC or 220V-230V AC,50/60Hz
Rated power  30W
Distortion                     Less than 1% at 1 kHz
Frequency Response
 50~20,000Hz(±3dB)
OutputsLiner output:                                                                                                                                                       Unbalanced 600ohmRCA line
Direct output:60 watts RMS 4ohm direct coupled
70.7V and 100V transformer coupled
Inputs:Balanced Line Input500mV (–6dBV) 20kohm Balanced Line (Phoen)ix
 Line In500mV (–6dBV) 20kohm Unbalanced (RCA)
Operating Temperature
-10 to +40
Colorblack
Dimensions(W*H*D):210mm x 94mm x 357mm
Weight  5.6kg
SANSONIC Technology Co., Ltd is a systematic enterprise that is concerned with researching, developing, manufacturing and sales of Public Address Systems, Emergency PA Systems and Professional Sound Systems & Speaker, Accessories. Currently, Switching Power Module, Class D Amplifier. Also principally undertake domestic and professional audio products OEM, ODM business. Located in the beautiful seashore city _ Shenzhen, China, sansonic has 370 employees and more than 200000 square meters factory area.

After ten years operation, SANSONIC Technology has set up research and development, sales team in California and Jiang Su of Suzhou...And Design Department in Taiwan, USA, China Its technical team has served in the U. S. Our factory has passed the ISO9001 quality management system, all of products comply with UL\CE\CCC\BSMI\GOST-R\Brazil UC\Mexico NOM, which are sold America, Europe, the Middle East, Southeast Asia, China and other countries and regions;

SANSONIC Technology has a safe and comfortable air conditioning factory workshop, clean machine shop, SMT automated production workshop, DIP lines, renovation lines, assembly lines, testing lines, packaging lines, maintenance lines and other production lines. We Simultaneously own the high and low temperature test, spray test, vibration test, drop test and a series of reliability test equipment which can be used to manufactured complex, rigorous process, high quality, high demand products. Perfect internal matching has create conditions for the development of enterprise. We can accept customer rigorous evaluation and tests both in hardware and software facilities.

We firmly adhere the management idea of "Your choice, our service" and do our best to create a higher market value with our customer.
