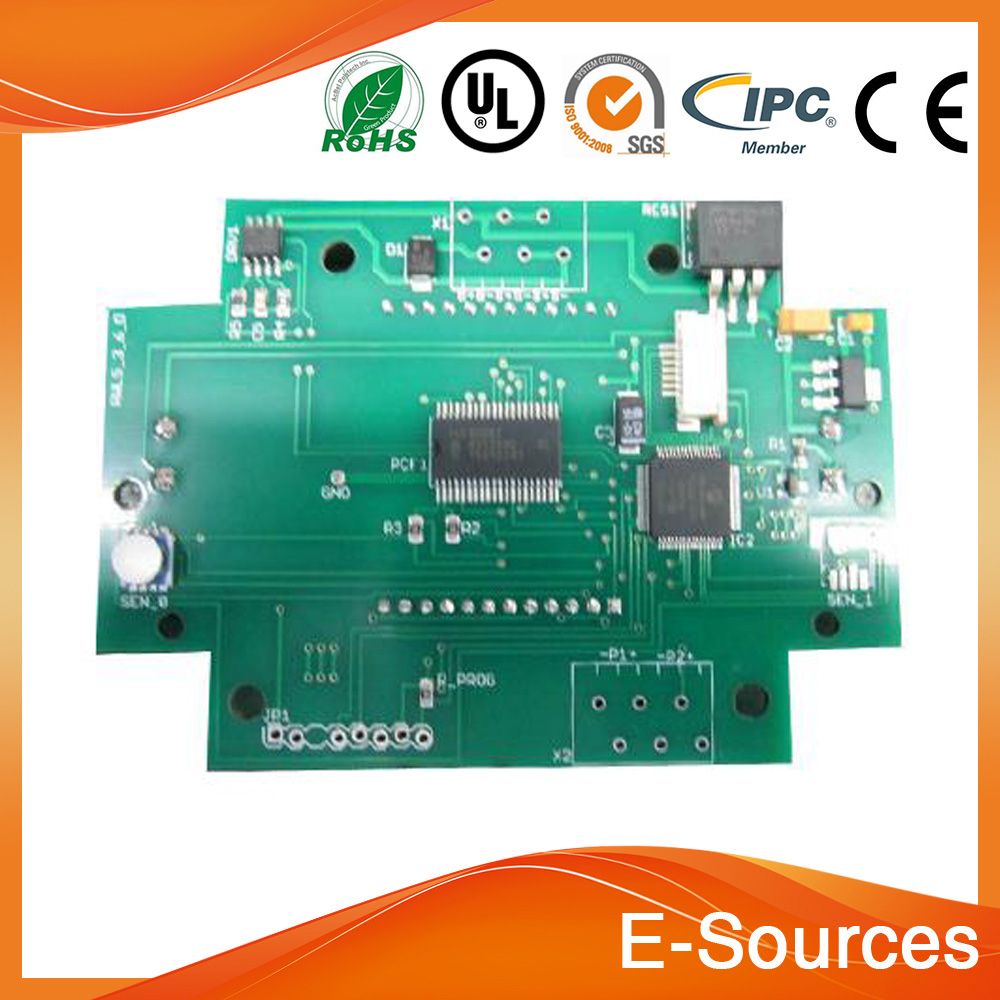

High Quality MP3 Players PCBA

High Quality MP3 Players PCBA
Price: US $ 0.5-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: A269
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min. Hole: 0.1mm(4mil)
Min. Line Width: 4mil
Copper Thickness: 0.5oz-6oz
Board Thickness: 0.1 to 6.0mm(4 to 240mil)
Layers: Multilayer
Certification: UL
Base Material: FR-4
Mode Of Production: SMT
Metal Coating: Copper
Customized: Customized
Condition: New

Product Description

E-SOURCES Three Advantages
1) Integrate Industry chain, we have 3 our own and holding companies for manufacturing components and PCBs. We can do PCB, PCBA, ODM, OEM and EMS one stop service, can ensure high quality and low price.
2) Professional, we have imported and advanced WORLD FAMOUS BRAND producing and inspection equipment. We have 10 experienced engineers to keep our process and technology support, we have our own corporation culture and management system ISO9001:2008 to courage our stuffs high efficiency.
3) Excellent Service, our experienced engineers and advanced equipments can control the producing, inspection and after service to satisfy our customers need, and our dedicate sales team can provide 24 hours service.

Competitive Advantage:
Process/Spec.E-SOURCESFeaturesNormal CompanyFeatures
PrintJapan SUNEAST,
GKG printer
High precision alignment with four Mark points,Prevent the PCB deformation,Adjust different thickness of PCB,Short printing time and printing cycle Bare,board dimension:48x48~759x610mmlocal machine
Semi-automatic,alignment
with two Mark points,
Bare board dimension:
60x60~759x610mm

SPI
Korea KOHYOUNG 3D SPI machine
Inspect the PBC automatically,High speed,High precision,High  Flexible
local machineInspect the PBC Semi-automatically,Normal speed and Normal precision

SMT
SAMSUNG 481,421,411
Dual-track  chip mounter,
High speed and high precision,
Short printing time and printing cycle,Mount accuracy:+/-0.1mm
local machineMonorail chip mounter,Normal speed and normal precision,Mount accuracy:+/-0.3mm

Solder
U.S.HELLER,BTU,
German REHM Reflow Owen
Ten heating  zones,Temperature accuracy:±1°C,PCB size:48x48~
759x610mm,Professional wind wheel design with stable blowing speed
local machineSeven heating  zones,Temperature accuracy:±1.5°C,PCB size:0x60~759x610mm
DIPAutomatic manual DIPAutomatic,High speedlocal machineSemi-automatic,Normal speed
AOIJapan OMRON online and offline  AOI machineGood and defective PCBs can be stored separated automatically with rack,High precision,High stabilitylocal machineSemi-automatic

Process/Spec.E-SOURCES FeatureNormal Company
Packagestrict process systemnormal packing
Number of layer:1-36 L1-16 L
Type of assembly:SMT and DIPSMT and DIP
Type of SMT :QFP, SOP, SOJ, TSOP, TSSOP, QFN,
POP,BGA,PBGA and UBGA
QFP, SOP, QFN,
Solder:Lead Free (11 zones reflow soldering)7 zones reflow soldering
Testing:100% AOI,3D SPI, ICT, Electronic test,
Visual inspection, Functional test
Visual inspection, Functional test
Bare board dimension:48x48~759x610mm
Min. component size:10050201
Min. IC space:0.25mm0.3mm
Min. pitch of BGA:0.4mm1mm-3mm
Min. pitch of QFN:0.4mm\
Printed precision:0.01mm0.015mm
SMT precision:0.02mm0.03mm
Pass rate85%50%-70%
Remote monitoring by clientsYesNo
FlexibilityMax 74x74mm. Equipment has 4
robot arms, various head units.
Max size 7070. Has 2 robot arms.
Component suppliersLong time strategy partners
with world-class component
suppliers. Steady and low prices.
Often changes component suppliers.
Quality is unstable.
WarehouseConstant temperature, dustproof,
moistureproof, anti-static.
Common Warehouse.
Sales teamBacholer degree of international
trade or Englsih related majors.
High school graduation certificate or above


FAQ
Q1:What is your products range?
§.We provide PCBA for IT, communication, tablet PCs, smart cards, financial equipments, auto electronics, GPS modules. We can do OEM,ODM.
Q2:Do you provide material sourcing service?
§.We have our own industry chain. Our material sources are stable, high quality and low prices.
Q3:Do you provide complete unit assembly service?
§.Yes, include plastics, metal box, Coil, cable inside etc
Q4:What is your payment term ?
§.T/T  or L/C at sight.and  It ' s negotiable
Q5:What is you trade term?
§.FOB Guangzhou/Shenzhen port.
Q6:Do your pay for import taxes and duty?
§.No, they are not included. Clients should pay for them.
Q7:How long do you need to make samples? And how about the lead time?
§.About  15-20 days for samples, and about  45 days bulk production after get your  payment
Q8:How do you make sure product quality?
§.We have 3D SPI, AOI,and we do ICT, Electronic test, Visual inspection, Functional test.
Q9:What about your shipping method?
§.We suggest you using our DHL, UPS, FedEx, TNT forwarder. By EMS (Usually for Russia Clients), price is high.
Q10:Can we visit your factory?
§.Yes, welcome to visit us any time.
Company introduction

Guangzhou E-sources Electron Co., Ltd. Was founded in 2004. After decades' development, We mainly have two products industries: LED lighting manufacturing factory, SMT, PCB/PCBA factory. Our LED manufacturing factory mainly engaged in LED down light, LED ceiling light, LED panel light, LED bulb, and LED tubes etc, We also provide PCB and PCBA ODM, OEM service for LED lighting, appliance and other electronics. Our products sold well in European countries, North America and Asian countries.

You care is what we do!

1. Quality control---FUJI, Samsung, BTU, HELLER, ReHM producing machine, KOHYOUNG SPI, OMRON AOI inspection machine, professional R&D engineers. Meet UL, CE, RoHS quality, Certified by ISO9001: 2008. Based on IPC-A-610 standard.

2. Cost saving--- owned companies for self-supply: LED lighting manufacturing factory, PCB factory, components agent company, OEM factory, and PCB design company.

3. Large capacity---five SMT lines, five DIP lines, eight assembly lines.

4. Cooperation with brand lighting companies --- Osram, Philips, NVC, Midea, Ikea.

Welcome to contact us, we use professional skill and scientific system to provide you with satisfactory service!
