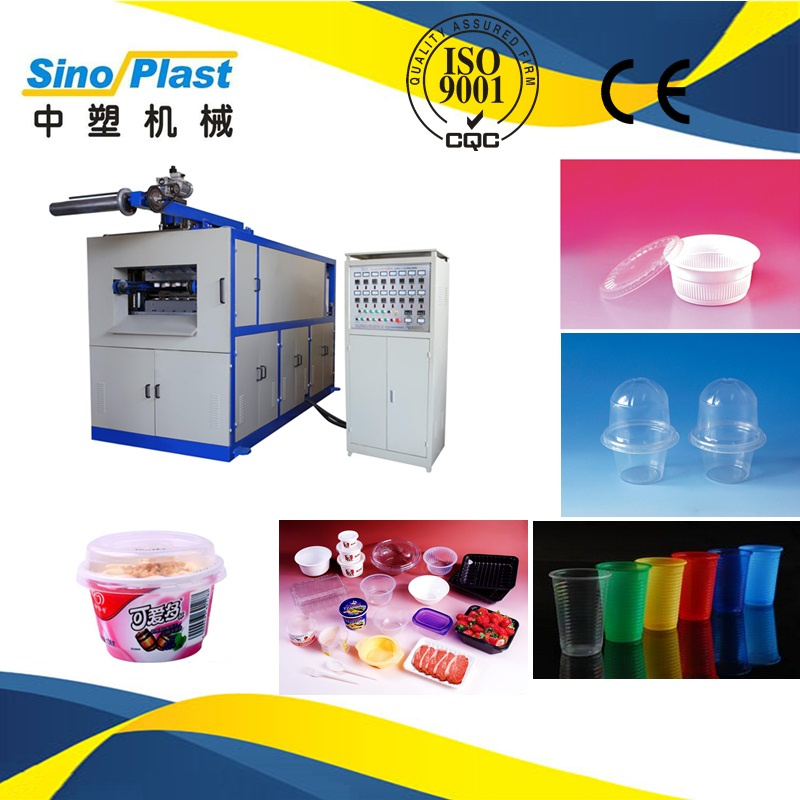

High Quality Automatic Plastic Flower Pot Maker

High Quality Automatic Plastic Flower Pot Maker
Price: US $ 23000-25000/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: SP-660
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension(L*W*H): 3550*1330*2350mm
Voltage: 380V/50Hz
Weight: 4000kw
Power(W): 45kw
Warranty: 1 Year
Control Method: PLC

Product Description



1. Usage:

SPC-660C Automatic Disposable Plastic Cup/Lid/Bowl/Plate Thermoforming Machine  is mainly used to formPP/PS/PET/PVC sheet into various kinds of disposable plasti cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc. It could also make some regular shape products, such as plate, bowl, cover, lid, dish, etc with different moulds.



2. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.4) The up mould is fixed and the down mould movement is driven by twin cam. 5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) This machine adopt PLC and touch screen to control.



3. Main Technical Parameter:


Model

SPC-660C

Mould Driving Method

Cam

Approximate Max. Forming Area

660 x 300 mm

Approx. Running Speed

15-30 Stroke / min  approx. during production

Approx. Sheet width required for feeding.

500 - 660 mm in rolls.

Mode of cutting arrangement.

In mould automatic

Sheet thickness Range

0.20 - 2.0 mm

Material

PP, PS, PET, PVC,PLA

Max. Draw depth,
i.e. cup length.

140 mm (Could be special design)

Oil Pump Motor Power

11KW, 6P

Sheet Feeding Motor

2.2KW

Max. Sheet roll diameter.

800 mm

Heating arrangement

Top + bottom
heating with IR Ceramic Heater(120pieces, 650W)

Temperature Controller & Thermocouple.

PID  K-Type

Type of Mould

Multi cavity
1 - 3 row.

Approx. Electrical Consumption

45KW/hr

Approximate Dimension

L3100×W1500×H2500 (mm)

Approximate Weight

4000Kg


According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.



4. Finished Product Samples

5. Mould Sampleas
