Chongqing TOP Oil Purifier Co., Ltd. >> High Precision Plate Pressure Oil Purifier

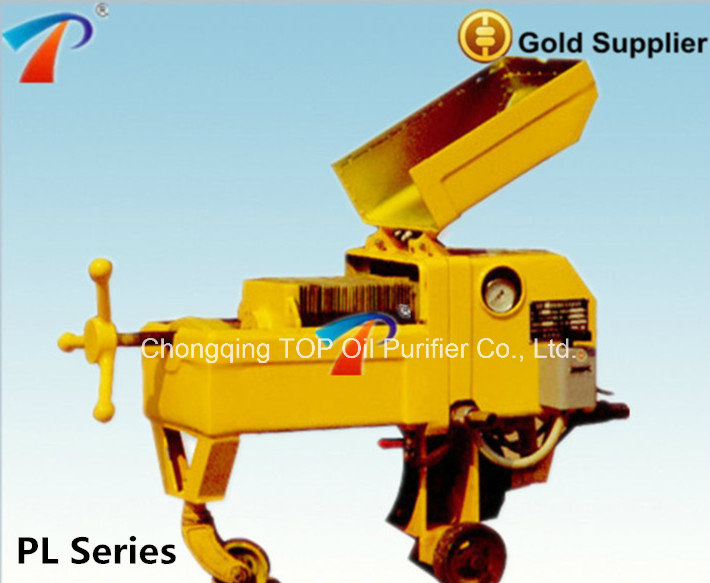

High Precision Plate Pressure Oil Purifier

High Precision Plate Pressure Oil Purifier
Price: US $ 8600-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: PL-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Mobile
Mechanical Principle: Ordinary
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Type: Press Filter
Condition: New
Power(W): 13kw
Dimension(L*W*H): 250mm*700mm*720mm
Weight: 76kg
Color: as Required
Voltage: 380V( as Needed)
Folw Rate: 30-300 L/Min

Product Description

PL High precision plate pressure oil purifier

Hot sale waste industrial oil press filter machine, manually press filtering water and particles, easy operation, low cost


Specifications
Waste Industrial Oil Filter Machine
1. Economcal and practical machine
2. Separate particles and water
3. Easy to operate


Application:
PL series plate pressure oil purifier is specially designed for power station, electricity factory, mineral enterprise,lube depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit, ect,filtering water and impurities of transformer oil, turbine oil, engine oil, diesel oil, kerosene, aviation hydraulic oil,as well as filtering edible oil while using stainless steel.The machine is made up of filter bed, oil pump and rough filter.There are filtering media, such as filtering paper or filtering fuse, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering.It's characterized by simple structure, easy operation, low operation cost, ect.


Technical parameter

Model

Unit

PL-30

PL-50

PL-100

PL-125

PL-150

PL-200

PL-300

Flow Rate

L/min

>30

>50

>100

>125

>150

>200

>300

Working Pressure

MPa

0-0.5

Filter Size

≥ m 2

0.3

0.39

1.3

1.54

1.89

2.01

3.1

Add Pressure



Manually

Filter Room Number

11

13

10

12

14

18

23

Filter Plate Number

12

14

11

13

15

19

24

Oil Pump

Flow rate

L/min

>30

>50

>100

>125

>150

>200

>300

Pressure

Mpa

0.6

Power

380V/3P/50Hz (or as needed)

Motor

Power

kW

1.1

4

3

5.5

Speed

r/min

1400

Filtering Precision

≥1μ

Filter Paper Size

185*190

285*290

Diameter

Inlet

mm















Outlet

mm

32

32

44

44

50

50

65

Dimension

Length

mm

250

250

320

320

440

440

500

Width

mm

700

750

900

1100

1300

Height

mm

720

840

1000

Weight

kg

76

86

130

180

210

230

280



Searching key word:
(oil purifier, oil filtration, oil purification, oil filter, oil treatment, oil saving, oil recycling, oil processing, oil filtering, energy saving, oil regeneration, oil processor, oil filter, oil process, oil purify, oil regenerating, oil restoration, waste oil disposal, oil reclaimed, oil reclaiming, )
Chongqing TOP Oil Purifier Manufacture Co, . Ltd is a corporation dedicated to research and manufacture oil purification machines and test equipment. Our Company has strong capability in research and manufacture, large scale of specialized production, perfect market system, good after-sale service, and thus has achieved good reputation and perfect market image in increasingly fierce market competition.

Our company mainly manufactures and sells below products: Insulting Oil Purifier, Turbine Oil Purification machine, Hydraulic Oil Purifier, Lubricating oil filtration machine, Transformer Oil filtering machine, fuel oil restoration, Steam-Turbine Oil reconditioner, Dielectric fluid regeneration system, Circuit-Breaker Oil recovering system, Compressor Oil recovering machine, Gear Oil renewal machine, Coolant Oil treatment, Quenching Oil reclaiming machine, Oil and Water Separator, Steel-Rolling Oil regeneration equipment, Waste automobile Oil Recycling equipment, petroleum machine and test equipment, etc.

TOP oil purifiers have been widely used in electricity, petrochemical, ship manufacturing, steel construction, bridge, automobile, railways fields and so on, which has been playing an important role in decreasing consumption and environmental pollution for customers.

Since established, taking the mission of "survival based on good quality and development based on technology innovation", TOP has introduced advanced vacuum oil filtering technology from foreign countries and constantly researched and produced oil purification devices to meet the market requirements at home and abroad.

"There is no best, only better. " TOP will make continuous efforts as always to provide better purification equipment for you.

Our oil filtration machine:

Series ZY Single-Stage Vacuum Transformer Oil Purifier

Series ZYD Double High Vacuum Transformer Oil Purifier

Series ZYB Multiply-Function insulating oil treatment machine

Series TY Turbine Oil Purification Apparatus

Series TYA Lubricating oil/ hydraulic oil purification unit

Series TYB Portable light Fuel oil purification machine

Series TYD Vacuum dehydrator

Series TYF Phosphate ester fire-resistance oil purifier

Series PL Plate pressure oil purifier

Series TYD Vacuum dehydrator

Series EFD Explosion protection filtration machine

Series BAM Press filtration system

Series ZKCC Vacuum pumping device

Series COP Cooking oil purification machine

Series CYS Centrifugal oil purification machine

Series JL Portable oil filtering and oiling machine

Series EOR series waste engine oil recycling system

Test equipment

1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II

2. Acidity tester model ACD-3000I

3. Karl Fischer Water content Tester Model TP-6A / model TP-2100

4. Fully automatic Interfacial Tension Analyzer model IT-800

5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1

6. Multi-functional Vibration tester model TYD-2000

7. Automatic Freezing Point & Pour Point Tester model PT-2000

8. Kinematic Viscosity tester model VST-8 /model VST-2000

9. Flash point tester (open cup) model TPO-3000

10. Flash point tester (close cup) model TPC-3000

11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF

12. Automatic Freezing Point & Pour Point Tester model TP-501Z

13. Determination of foaming characteristic of lubricating oil model SD-12579

14. Earth resistance tester model HYDW-II

15. Coil Resistance Tester (TPZC-40)

16. CT/PT tester model TPVA-404

17. Transformer turn ratio tester model HYG-II

18. Relaying Protection Tester model TPJB-III

19. Digital Grounding Resistance Tester model TP2571-II

20. DC High Voltage Generator model ZGF

21. Underground water/gold detector model TP-UWD
