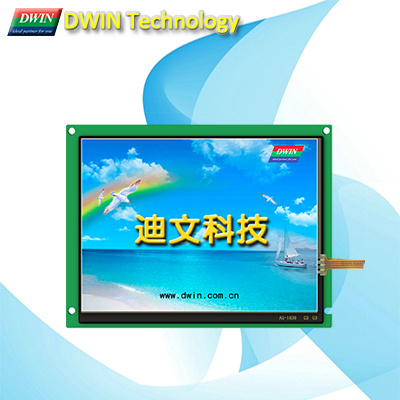

High Brightness, 5.7inch TFT LCD Module/HMI, Touch Screen Optional, Dmt64480t057_01W

High Brightness, 5.7inch TFT LCD Module/HMI, Touch Screen Optional, Dmt64480t057_01W
Price: Negotiable/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: DMT64480T057_01W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 5.7 Inch
Ratio: 4:3
Communication: Serial RS232/Ttl
Type: LCM
Display Technology: TFT
Usage: Small-sized LCM
Viewing Angle: TN+FILM

Product Description

Smart UART-interface, TFT LCD Module with RS232 / TTL serial communication; It could be controlled by any normal MCU with serial interface. Up to 65K color (16-bit) true color display, which could make your products more attractive. Reliable performance with wide temperature/voltage range achieve it's various application whatever in industrial & consumer field. With self designed DGUS_SDK software and pre-installed commands, anyone could design their idea interface.
Item Parameter Description
Color 65KM (65536) colors 16 bit color 5R6G5B
Active Area (A.A.) 116.2mm (W) ×87.1mm (H) 640×480
View Area (V.A.) 118.0mm (W) ×89.2mm (H) 640×480
Resolution 640×480 90° rotation (480×640)
Backlight LED -
Brightness 500nit (DMT64480T057_01WN) 64 levels adjustment
450nit (DMT64480T057_01WT) 64 levels adjustment










l  Voltage & Current
Item Conditions Min Typ. Max Unit
Power Voltage Voltage Jumper is ON 3.3 5.0 6.0 V
  Voltage Jumper is OFF 6.0 12.0 42.0 V
Operation Current VCC = +12V, Backlight on - 330 - mA
VCC = +12V, Backlight off - 120 - mA
Recommended power supply: 12V 1A DC








l  Reliability Test
Item Conditions Min Typ. Max Unit
Working Temperature 60%RH at 12V voltage -30 25 85 o C
Storage Temperature - -40 25 85 o C
Working Humidity 25 o C 10% 60% 90% RH
Protective Paint - - None - -
Aging Test - - 24 - H








l  Interface
Item Conditions Min Typ. Max Unit
Baud Rate Standard 1200 115200 921600 bps
User Set 1200 - 1000000 bps
Output Voltage
(TXD, BUSY)
Output 1, Iout = 1mA 3.0 3.2 - V
Output 0, Iout = -1mA - 0.1 0.2 V
Input Voltage
(RXD, I/O0)
Input 1, Iin = 1mA 2.0 3.3 15.0 V
Input 0, Iin = -1mA -15.0 0.0 0.3 V
Interface Mode determined by Jumper: ON=8N1, 3.3V CMOS/TTL; OFF=8N1,RS232
Socket 10Pin_FCC 1.0mm / 8Pin_2.54mm
USB None
SD slot Yes (FAT32 format)















l  Memory
Item Parameter Min Typ Max Unit
Flash Space of Font - 32 - MB
Picture Storage (256MB) - - 149 Pcs
Picture Storage (2GB) - - 1555 Pcs
RAM Variable Storage - 56 - KB







l  Peripherals
Peripherals Acquired
Peripherals DMG32240S035_01WN : RTC, Buzzer
DMG32240S035_01WT : 4-wire resistance touchscreen, RTC, Buzzer





l  Packing Capacity & Dimension
Dimension
Dimension 143.5 (W) × 109.2 (H) × 17.8 (T-WN/K) / 19.2 (T-WT)mm
Net Weight 205g (DMT64480T057_01WN)
265g (DMT64480T057_01WT)
