| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Pressure: |
Pressurized |
| Installation: |
Freestanding |
| Interior Material: |
Stainless Steel |
| Type: |
Storage / Tank |
| Power Source: |
Electric |
| Use: |
Bathroom & Kic |
Product Description

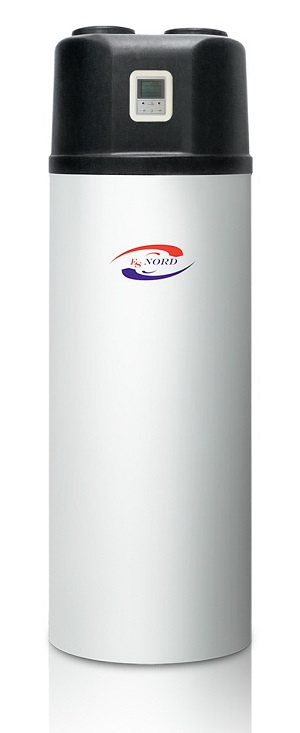

Heat Pump Water Heater
All in one monobloc type
3 times more efficient than traditional heating device
E. S. Nord heat pump water heater is especially designed for domestic hot water. It is 3 times more efficient than traditional gas/electrical heater and without any CO2 emissions.
With the compact & fashionable design and quiet operation, it could be put indoor. It can provide you 55C hot water for shower and kitchen every day even in extreme cold weather.
According to the different installation ways, the heat pump water heater can also provide you various functions like air conditioner, dehumidifier, energy recovery equipment. It create more value for you.
KEY FEATURES:
* LCD intelligent digital controllerEliwell Controller
* Stainless steel inner tank with galvanized outer shell
* Weekly anti-legionnella function
* 50mm Polyurethane thermal insulation
* High quality compressor with R407c/R410A refrigerant
* 4-way valve to ensure reliable defrosting function
* Hydrophilic coating air exchanger
* Immersion heater inside of the tank as back-up heating source
OPTIONAL:
* Integrated solar control system
* Tank volume available with 200L, 250L and 300L
* Stainless steel outer shell
* Additional heat exchanger coil inside of the tank is available according to customers' demand. (It can be connected to the second heat source like solar collector or boiler)
|
Model |
ESDHW-3 |
T200DF |
T250DF |
T300DF |
|
Heating Capacity |
KW |
3.5 |
3.5 |
3.5 |
|
Water Tank Cubage |
L |
200 |
250 |
300 |
|
Heating Power Input |
KW |
0.98 |
0.98 |
0.98 |
|
Operating Current |
A |
4.5 |
4.5 |
4.5 |
|
COP |
|
3.58 |
3.58 |
3.58 |
|
Power Supply |
V/Ph/Hz |
220/l/50 |
|
Compressor Style |
|
Rotary |
|
Refrigerant |
|
R410a/R134a/R407c |
|
Controller |
|
Eliwell |
|
Electrical Heater |
KW |
1.5 |
1.5 |
1.5 |
Hot Water Volume
(From 15° C to 55° C) |
|
75 |
75 |
75 |
|
Noise |
L/H |
47 |
47 |
47 |
|
Net weight |
dB(A) |
80 |
88 |
95 |
|
Shipping Weight |
Kg |
92 |
101 |
109 |
|
Net Dimensions |
mm |
560*560*1725 |
560*560*1975 |
640*640*1820 |
|
Shipping Dimension |
mm |
630*630*1845 |
630*630*2095 |
710*710*1940
|
