| Prod Model: |
qz-1000 qz-1380 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stainless Steel: |
1.5m |
| Type: |
Ventilation Fan |
| Power Supply: |
Electric |
| Timer: |
Without Timer |
| Speed: |
3 Speed |
| Power: |
>300W |
Product Description
Model specification | Blade/m | Frequency/HZ |
Motor
Speed (r/min) |
Air
flow(m³/h) | Import
power /w | Noise
(db) | Rated
Voltage /v |
Size (mm) |
| QZ-1000(36") | 910 | 50 | ≥1400 | 23500 | 750 | ≤64 | 380 | 1000x1000x450 |
| QZ-1380(50") | 1270 | 50 | ≥1400 | 48000 | 1100 | ≤64 | 380 | 1380x1380x450 |
The fan translation had accredited Europe CE Certification.

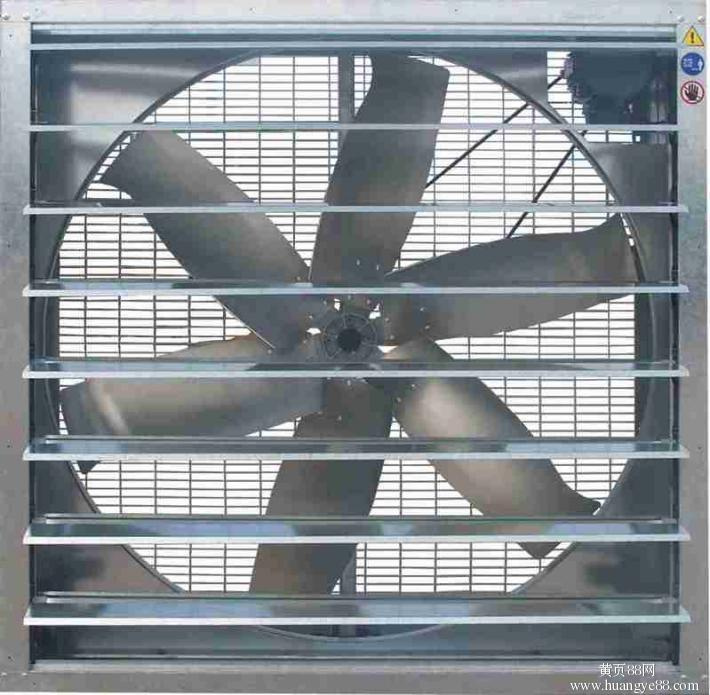

Material:
Frame: galvanized steel sheet,and the frame is one-off molded,The outline border adopt advanced automatic process, more accuracy .
Fan Blades: 6 pieces of mirror finished stainless steel blades and the angle of the blades is patented designed. The fan translations have all passed the experiment of homeostasis,
Shutter: high strength hot-galvanized steel sheet, with a high strength nylon swung drop hammer opening device to ensure the shutters opening and closing flexibly.
Belt Pulley: the V type belt pulley is aluminium magnesium alloy injection moulded, so it's light and high-strength.
Belt:the belt is imported from Japan it is ametabolic in a longtime so there is no use to maintain it during its life circle.
Motor: The motor is high efficiency and low wastage of energy and have accredited 3C certification; the Grade of Protection is IP54 and the Insulation Grade is F.Maintenance free: .Performance: it is used for longitudinal ventilation, the effect would be better if the fan translation works with a cooling pad.
Install Locations: mainly installed in the frontispiece and the side wall near the frontispiece.
