Dongguan Aoke Computer Cutting-off Equipments Co., Ltd. >> Frame Gallery Cross Stitch Matboard Cutter Engraving Machine

Frame Gallery Cross Stitch Matboard Cutter Engraving Machine

Frame Gallery Cross Stitch Matboard Cutter Engraving Machine
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1200mm*800mm: 1600mm*1000mm

Product Description

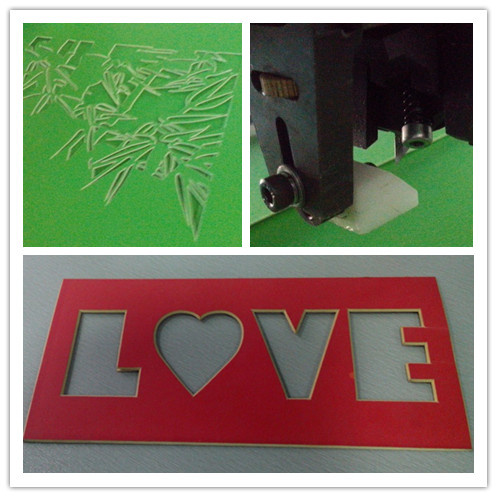

frame gallery cross stitch matboard cutter engraving machine 1.ideal mat cutting solution for the custom framer, doing all cutting from the front and the back, cuts single or multiple openings, V-grooves in all designs and pre-assembled double and triple mats without having to remove the mat from the machine. 2.blades are meticulously produced from the finest steel and sharpened to a precisely controlled edge. Blades are inexpensive, Changing the blade is fast and simple within 30 seconds 3.Cut V-grooves and mat boards of varying thickness,the blade adjust automatically. 4.machine can accurately and easily cut 3 mm 0.12 inch thickness matboard 5.Operating controls are conveniently located on the left and right side of the machine. This allow you to cut from the left side as well as the right side of the machine. This new feature enables you to have maximum productivity with less down time. 6.machine size:1200mm*880mm  1600mm*1000mm   2400mm*1200mm
Item

Specification
Max cutting speed 600mm/s
Max translational acceleration 4500mm/s^2
Max cutting thickness 3mm
Cutting angle 45/55
Effective cutting range 1200mm*800mm
Resolution ratio <0.01mm
Cutting precision <0.05mm

Reboard Xboard honeycomb corrugated flute carton box sample making machine

1. Laser registration system allows the user to place materials accurately on to the cutting area and to register print.

2. An Infra red safety system protects the operator.

3. Oscillating knife for cutting 15mm/0.6 inch thickness corrugated boards, coroplast, foam, PP corrugated

4. Extra foam tools for cuting 30mm/1.2 inch EPE foam

5. Extra V cut tools for V cut reboard xboard honeycomb chipboard

6. Drag knife for cutting 3mm/ 0.12 inch thickness solid boards

7. Support half kiss through whole cutting, creasing/score and pen drawing plotting direct onto material

8. Suitable for carton factory, printing plant, paper shelf/display manufacturer, packaging material plant, die cut factory, and so on.

9. Machine size 1300mm*1000mm 1700mm*1300mm 2500mm*1600mm 3000mm*1600 mm 3000mm*1800mm 3000mm*2000mm 3500mm*2000mm

Sales@cutcnccam. COM
