| Prod Model: |
FIP-100WS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Certification: |
SGS |
| Cooling Method: |
Direct Cooling |
| Condition: |
New |
| Ice Shape: |
Plate Type Ice |
Product Description
Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.
Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetable
Plate Ice Machine: Cooling mode: Water cooling
Focusun Plate Ice Machine is produced by being passed through a crusher and contains all necessary equipments in a turnkey package. It's easy to handle and appropriate for a variety of industrial applications.
Features of Plate Ice Machine:
1. The amount of ice producing differs with water temperature and varieties in the capacity of the compressor unit.
2. The standard power supply is 3-phase 200/220V, and 3-phase 50 or 60Hz, 380V, or 0440V may also be selected.
3. Plate ice makers are designed to operate solely with fresh water. Ice production may not be possible at sale concentrations in excess of 100ppm.
4. Plate ice makers are all designed for indoor installation. Contact us for information on models designed for outdoor installation.
5. The evaporator is the direct expansion type. The standard evaporation temperature for R-22 is set at-15 degrees.
6. Ammonia (NH3) may be selected as the refrigerant if required. Please contact us for specification of this refrigerant!
|
Subject |
Unit |
Technical parameter |
|
Power supply |
Voltage/Phase/Frequency |
380V/3P/50Hz |
|
Refrigerant |
|
R22 or R404A |
|
Capacity |
Kg/day |
10000 |
|
Cooling way |
|
Water cooling |
|
Temperature |
Ambient temperature |
celsius |
35 |
|
Waterinlet temperature |
celsius |
20 |
|
Operating power |
Cooling water pump |
Kw |
1.1 |
|
Warm water pump |
Kw |
0.75 |
|
Ice cutter |
Kw |
1.1 |
|
Cooling tower fan |
Kw |
1.1 |
|
Cooling water pump |
Kw |
2.2 |
|
Total running power |
Kw |
39.07 |
|
Installment power |
Kw |
48 |
|
Compressor |
Manufacturer |
|
Bitzer |
|
Refrigeration capacity |
Kw |
71 |
|
Operating power |
Kw |
32.82 |
|
Compressor COP/EER |
Kw/kw |
2.16 |
|
Horse power |
Hp |
25×2sets |
|
Type of compressor |
|
Semi-hermetic screw |
|
Dimension |
Size of machine unit |
(L×W×H)(mm) |
1600×1200×1800 |
|
Number of evaporator |
|
1PC |
|
Size of evaporator |
(L×W×H)(mm) |
2200×1700×2200 |
|
Size of ice outlet |
(L×W)(mm) |
1500×300 |
|
Size of cooling tower |
(O.D.×H)(mm) |
2000×2410 |
|
Size of water feeding pipe of cooling tower |
|
3/4" |
|
Size of cooling water pipes |
|
2-1/2" |
|
Size of water feeding pipe |
|
3/4" |
|
Operating weight |
Unit |
Kg |
1150 |
|
Evaporator |
Kg |
1460 |
|
Cooling tower |
Kg |
670 |
|
Water supply pressure requirement |
Bar |
1 |

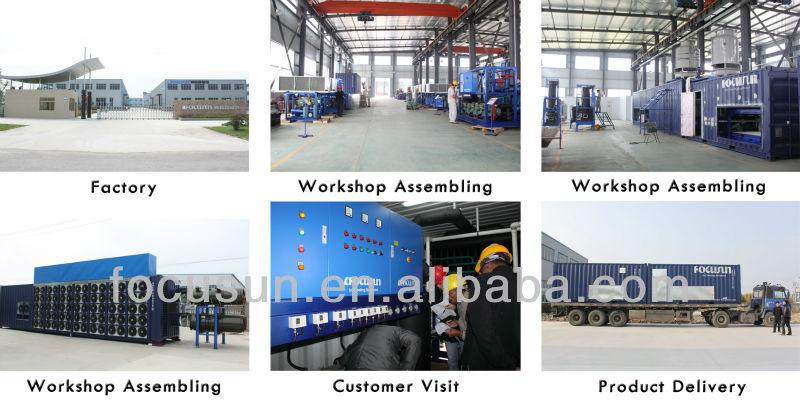

Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
