| Prod Model: |
FIF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model And Capacity: |
Fim-50k, 5000kg/24hrs |
| Cooling Mode: |
Air Cooling Condenser |
| Refrigerant: |
R22 or R404A |
| Compressor Supplier: |
Germany Bitzer |
| Solevoid Valve Supplier: |
Danfoss |
| PLC Control Supplier: |
Siemens |
| Products Warranty: |
15 Months Since The Commissioning |
| Capacity We Can Provide: |
1ton/Day to 60ton/Day |
| Size Flake Ice Machine: |
2200X1050X1550mm |
| Power Consumption: |
17.72kw/Per Hour |
| Certification: |
CCC |
| Ice Shape: |
Flake Ice |
| Condition: |
New |
| Application Fields: |
Fishing Industry |
Product Description

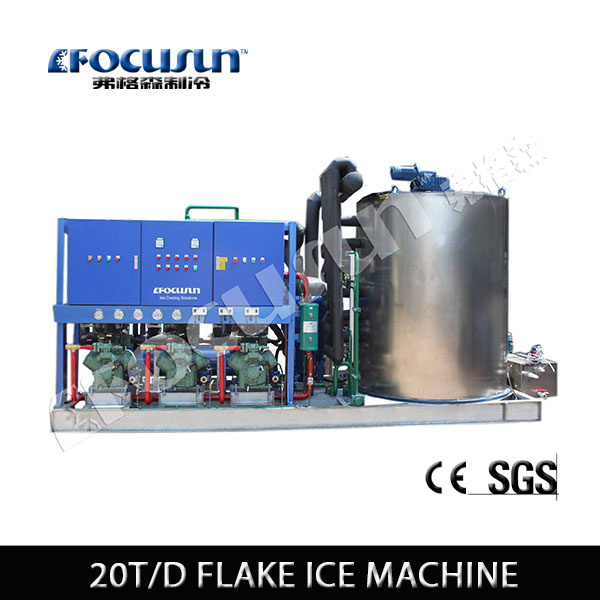

Flake ice introduction: Irregular ice flakes with size about 40× 40mm and thickness around 1.5-2.5mm.
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
Application fields: Concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic
Food, seafood, poultry slaughtering and so on.
Flake ice machine making equipment features
1. Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant
2. Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat
Transfer efficiency
3. The design of the large water receiving plate can prevent water leaking at the bottom of drum.
4. Photoelectric switch is directly installed in the bottom of evaporator
5. Direct liquid feeding and dry evaporation __ simple, safe and reliable control.
6. Integrated modular equipment installation is convenient for maintenance
If you are interested in our products, please send an inquiry to us. We are very pleased to service for you, our stong refrigeration engineers team will give you the most professional suggestions.
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 5000 |
| Cooling way |
| Water cooling |
| Temperature | Ambient temperature | centigrade | 35 |
| Waterinlet temperature | centigrade | 20 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 30.3 |
| Total running power | Kw | 15.18 |
| Compressor COP/EER | Kw/kw | 2 |
| Horse power | Hp | 25 |
| Operating power | Total running power | Kw | 17.72 |
| Installment power | Kw | 22 |
| Operating power of reducer | Kw | 0.37 |
| Operating power of cold water pump | Kw | 0.12 |
| Cooling water pump | Kw | 1.5 |
| Fan of cooling tower | Kw | 0.55 |
| Dimension | Size of ice maker | (L× W× H)(mm) | 2200× 1050× 1550 |
| Size of cooling tower | (O. D. × H)(mm) | φ 1380× 2170 |
| Size of water feeding pipes of cooling tower |
| 1/2" |
| Size of cooling water pipes |
| 2" |
| Size of water feeding pipe |
| 3/4" |
| Size of ice outlet | mm | Φ 712 |
| Weight of unit | Operating weight of flake ice maker | Kg | 1250 |
| Operating weight of cooling tower | Kg | 460 |
| Water supply pressure requirement | Bar | 1.5 |
