| Prod Model: |
FIB-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model And Capacity: |
Fib-50, 5000kg/Day |
| Capacity We Could Provide: |
1ton/Day to 100ton/Day |
| Cooling Model: |
Water Cooling Condenser |
| Refrigerant: |
R22 or R404A |
| Compressor Supplier: |
Germany Bitzer |
| Solevoid Valve Supplier: |
Danfoss |
| PLC Control Supplier: |
Siemens |
| Power Consumption: |
33.98kw/Per Hour |
| Refrigeration Type: |
Direct Refrigeration with Advanced Technology |
| Product Warranty: |
15 Months Since Commissioning |
| Ice Shape: |
Ice Block |
| Certification: |
CCC |
| Condition: |
New |
Product Description

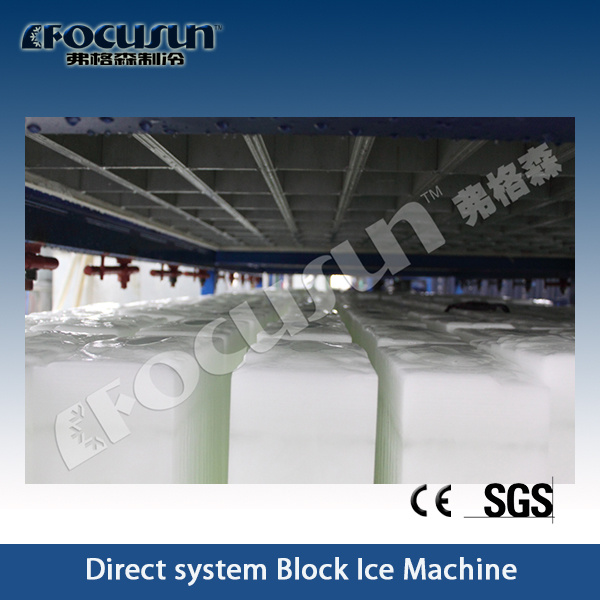

Block ice is the largest ice in all the ice products. It is not easy to thaw because of small contact area. And It can be crushed into different shapes of ice according to different requirements.
Suitable for Ice sculpture, ice storage on sea transportation, marine catching and so on. The ice can be Crushed into powder, and then it can be used in any ice use place. But partial ice will thaw it is crushed into Powder.
Our ice block making machine is a new technology machine specialized in the ice demand of Africa and Oceania. It is a inter-grated design with easy installation and safe packing. Its sized is obey to the International container design.
Focusun containerized block ice machine is easy and convenient to transport, install and move. And the Whole set can work if there are proper place, water source and power supply even without any pipe line Connection. These equipments can form a moving ice-making station installed on a truck. More features as
Follows:
1. Modularized design ensures any inexperienced man can run the machine.
2. Convenient transportation and installation, no need to build a room for the container and machine.
3. Economically saving on cost and operation, advanced free maintenance design requires no specially Trained engineer.
4. Container integrated structure enables easiness on installation, transportation and production.
5. Convenient ice dumping completed by chain hoist.
6. Using aluminum alloy plate as the evaporator enhances welding and make it not easy to deform.
7. In the aluminum alloy evaporator, the refrigerant has a heat exchange with water directly to improve the Effect of heat transfer. Our block ice machine is 1.5 times faster than ordinary ice machine which uses Brine water.
8. Unique refrigeration system and advanced technology to make ice fall off using hot freon make it easier, More convenient and automatic.
9. Directly liquid feeding and dry-type evaporation make it simple, safe and reliable to control.
10. Self-contained condensing unit is pre-piped and wired, etc.
If you are interested in our products, please send us an inquiry with capacity you need, we are very pleased to service for you. And our strong refrigeration engineers will give you the most professional suggestions and ideas in designing a suitable ice machine.
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 5000 |
| Cooling way |
| Water cooling |
| Temperature | Ambient temperature | centigrade | 35 |
| Waterinlet temperature | centigrade | 20 |
| Operating power | Total running power | Kw | 20.9 |
| Installment power | Kw | 25 |
| Cooling tower fan | Kw | 0.55 |
| Cooling water pump | Kw | 1.5 |
| Operating power of cold water pump | Kw | 0.55 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 43.3 |
| Operating power | Kw | 17.99 |
| Compressor COP/EER | Kw/kw | 2.41 |
| Horse power | Hp | 25 |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L× W× H)(mm) | 480× 160× 700 |
| Size of unit modular | (L× W× H)(mm) | 1400× 1000× 1250 |
| Number of evaporator |
| 1 PC |
| Size of evaporator modular | (L× W× H)(mm) | 4800× 1000× 2200 |
| Size of cooling tower | (O. D× H)(mm) | 1380× 2170 |
| Size of water feeding pipe of cooling tower |
| 1/2" |
| Size of cooling water pipes |
| 2" |
| Size of water feeding pipe |
| 1-1/4" |
| Operating weight | Unit | Kg | 960 |
| Evaporator | Kg | 2860 |
| Cooling tower | Kg | 460 |
| Water supply pressure requirement | Bar | 1 |
