| Prod Model: |
FIT tube ice making machine/plant/maker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Gas: |
R22/R404A |
| Condenser: |
Air Cooled/Water Cooled |
| Quality: |
High Quality Tube Ice Making Machine |
| Ice Shape: |
Ice Block |
| Condition: |
New |
Product Description
COMPANY INTRODUCTION
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

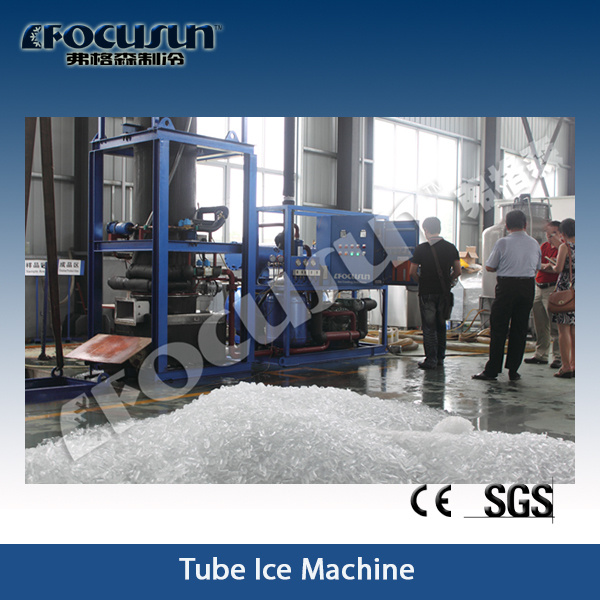

TUBE ICE MAKER INTRODUCTION
Large capacity tube ice maker is consist of compressor module, evaporator module and electric module; Evaporator adopts SS304, PE and aluminum alloy material, ensures food class; PLC system control the ice making process automatically;
Tube ice feature, has the highest density (880kg/m3 in 1T), hollow, pure, clean, difficult to melt, edible. Tube ice length max. about 50mm, internal diameter can be adjustable Ø5~ Ø10mm. 3 optional ice size available:
Optional 1: external diameter Ø22mm, 10 mins. ice making, 3 mins ice doffing;
Optional 2: external diameter Ø29mm, 15 mins. ice making, 3 mins. ice doffing;
Optional 3: external diameter Ø35mm, 18 mins. ice making, 3 mins. ice doffing;
Application: drinks freezing, wine mix, seafoods cooling, ice pasteries, fresh keeping, etc.
Tell us your needs (as specific as possible), like:
1. Purpose of building up a ice plant & sales channels;
2. Production capacity (how many tons of ice is required per 24 hours);
3. Temperature (air temp. and water temp. & water quality)
4. Available electricity supply (voltage, frequency, phase);
5. Any restrictions of the intended site (height, door width, etc.);
6. After ice made process, such as ice packing, storing, etc.
7. Financial budjet if possible;
Within above details, suitable recommedations will be given, come on!!
Relative equipment available:
1. Tube ice packing machine (Semi-auto & Fully automatic);
2. Tube ice storage room;
3. Tube ice crusher;
You're invited to visit our website www.focusun.com to learn more.
Our tube ice making machine models:
| Model | Daily
Capacity | Refrigerant | Electricity
consumption | Install
power | Operating
weight | Size (L×W×H) |
| FIT-10 | 1T | R22/R404A | 4.74KW | 6KW | 890 kg | 1400×800×1800 mm |
| FIT-30 | 3T | R22/R404A | 11.01KW | 13.5 KW | 1250 kg | 1700×920×2000 mm |
| FIT-50 | 5T | R22/R404A | 16.03KW | 20 KW | 1650 kg | 1700×1200×2200 mm |
| FIT-60 | 6T | R22/R404A | 18.42KW | 28 KW | 1650 kg | 1800×1250×2200 mm |
| FIT-80 | 8T | R22/R404A | 24.55KW | 30 KW | 1650 kg | 2000×1450×2200 mm |
| FIT-100 | 10T | R22/R404A | 34.95KW | 45 KW | (unit):1560 kg | 1800×1500×1600mm |
| (evaporator):2296 kg | 1180×1180×3500mm |
| (cooling tower):670 kg | 2000×2410mm |
| FIT-150 | 15T | R22/R404A | 48.4KW | 60 KW | (unit):1890 kg | 2000×1800×1600mm |
| (evaporator):2685 kg | 1250×1250×4200mm |
| (cooling tower):1120 kg | 2175×2565mm |
| FIT-200 | 20T | R22/R404A | 68.5KW | 85 KW | (unit):2260 kg | 2200×2000×1800mm |
| (evaporator):3650 kg | 1350×1350×4600mm |
| (cooling tower):1120 kg | 2175×2565mm |
| FIT-250 | 25T | R22/R404A | 85.3KW | 105 KW | (unit):2680 kg | 2400×2200×2000 |
| (evaporator):4260 kg | 1450×1450×4800mm |
| (cooling tower):1300 kg | 2650×2645mm |
| FIT-300 | 30T | R22/R404A | 105KW | 130 KW | (unit):3280 kg | 2800×2200×2000mm |
| (evaporator):4860 kg | 1450×1450×5200mm |
| (cooling tower):1630 kg | 3050×2780mm |
| FIT-350 | 35T | R22/R404A | 116KW | 140 KW | (unit):3860 kg | 3500×2200×2000mm |
| (evaporator):5650 kg | 1500×1500×5500mm |
| (cooling tower):2730 kg | 3770×3490mm |
| FIT-400 | 40T | R22/R404A | 139.6KW | 170 KW | (unit):4250 kg | 3600×2200×2000mm |
| (evaporator):5890 kg | 1500×1500×5800mm |
| (cooling tower):2730 kg | 3770×3490mm |
| FIT-500 | 50T | R22/R404A | 177KW | 220 KW | (unit):4560 kg | 4300×2200×2000mm |
| (evaporator):6500 kg | 1800×1800×6000mm |
| (cooling tower):3770 kg | 3770×3690mm |
Remember all equipments can be customized according to your local demands, don't hesitate to contact us. You'll receive our reply within 24 working hours!!
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
