| Prod Model: |
FIF10 FIF50 FIF100 FIF250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Fusheng |
| Refrigerant: |
R22/R404A/R717 |
| Cooling Mode: |
Water Cooled/Air Cooled/Evaporative Cooled |
| Power: |
220V/380V/440V |
| Phase: |
3 |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.
Product introduction:

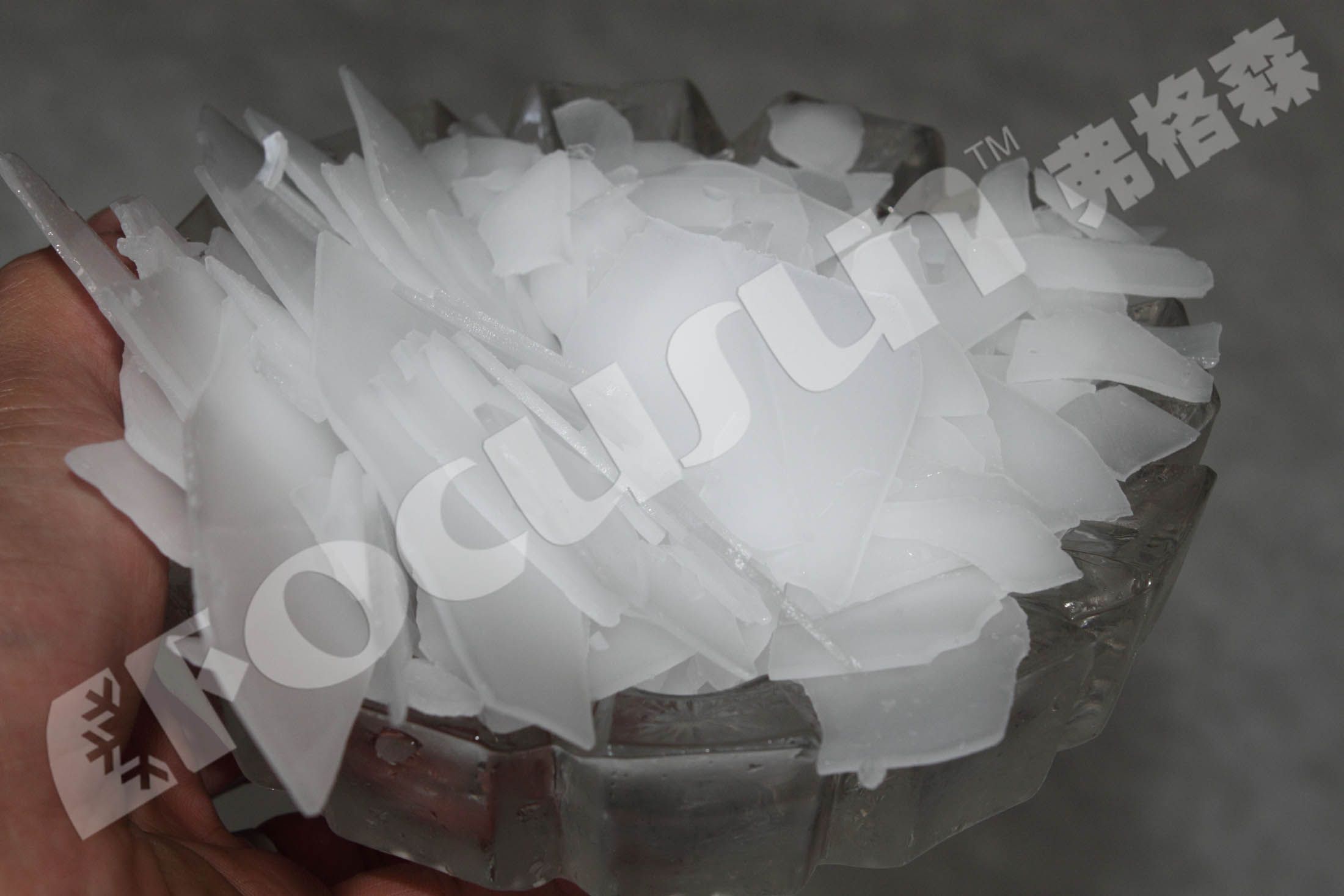

Flake ice feature:
1. Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.
2. The thin ice can be directly used for stirring and mixing refrigerated materials.
3. No acute edges and corners so it will not damage the surface of the cooled object.
4. Large contact area and fast cooling speed.
5. Easy to crush and mold.
Flake ice maker features:
1. Internally scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2.Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
3.The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
4.Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
5. Direct liquid feeding and dry evaporation, simple & safe to control.
6. Integrated modular design, convenient to install and maintain.
Focusun supply 3 types flake ice maker:
1. fresh water technology;
Feature:
Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
Photoeletric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
Direct liquid feeding and dry evaporation, simple & safe to control.
Integrated modular design, convenient to install and maintain.
2. seawater technology;
2.1. seawater technology-land use;
Design Feature:
Use seawater as inlet water, which is mainly suitable for coastal areas;
Adopt special anti-corrosion materials for pipes, deepened oil tank and marine used seawater condenser;
A number of different daily capacities models are available;
2.2. seawater technology-marine use;
After making thorough research on the global market demand and climate conditions in different areas, Focusun develops Marine used flake ice making machine in order to provide professional service for marine cooling operation on the boat.
Focusun seawater flake ice plant is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels.
Design Feature:
Adopt Bitzer deepened oil tank and marine used seawater condenser;
Module design adopted with all spare parts welded;
Onboard ice machine operates normally regardless of the vessel's pitching and rolling;
Focusun brand flake ice maker models:
| Model | Daily Capacity | Refrigerant | Electricity consumption | Operating weight | Size (L×W×H) |
| FIF-05 | 0.5T | R404A | 2.5kw | 530kg | 1100×700×630mm |
| FIF-08 | 0.8T | R404A | 3.67kw | 560kg | 1200×740×650mm |
| FIF-10 | 1T | R404A | 4.3kw | 620kg | 1200×740×800mm |
| FIF-20 | 2T | R404A | 7.15kw | 680kg | 1560×1200×960mm |
| FIF-30 | 3T | R404A | 11.3kw | 720kg | 1700×900×1200mm |
| FIF-40 | 4T | R404A | 14.94kw | 780kg | 1700×900×1201mm |
| FIF-50 | 5T | R404A | 17.28kw | 860kg | 2200×1050×1550mm |
| FIF-60 | 6T | R404A | 21.24kw | 950kg | 2200×1050×1606mm
|
| Model | Daily Capacity | Refrigerant | Electricity consumption | Operating weight | Size (L×W×H) |
| FIF-50WB | 5T | R404A | 21.8kw | 1120kg | 2200×1050×1550mm |
| FIF-60WB | 6T | R404A | 22kw | 1600kg | 2150×1350×1580mm |
| FIF-80WB | 8T | R404A | 26kw | 1800kg | 2450×1650×1600mm |
| FIF-100WB | 10 | R404A | 34.3kw | 3000kg | 3550×1550×2100mm |
| FIF-150WB | 15T | R404A | 49.35kw | 3400kg | 4000×1850×2400mm |
| FIF-200WB | 20T | R404A | 68.4kw | 3600kg | 4200×2000×2914mm
|
3. 20ft/40ft containerized technology;
Container integrated structure enables easiness on installation, transportation and production;
Economically saving on operation and convenient maintenance.
Focusun brand containerized flake ice maker models:
| Model | Daily Capacity | Refrigerant | Electricity consumption | Operating weight | Size (L×W×H) |
| 20ft | FIF-50C | 5T | R404A | 17.72kw | 3600kg | 6058×2438×2591mm |
| FIF-100C | 10T | R404A | 34.31kw | 4700kg | 6058×2438×2591mm |
| FIF-120C | 12T | R404A | 38.8kw | 5500kg | 6058×2438×2591mm |
| FIF-150C | 15T | R404A | 49.35kw | 5500kg | 6058×2438×2591mm |
| FIF-200C | 20T | R404A | 60.41kw | 6100kg | 6058×2438×2591mm |
| 40ft | FIF-250C | 25T | R404A | 78.85kw | 6500kg | 12192×2438×2895mm |
| FIF-300C | 30T | R404A | 102.45kw | 6800kg | 12192×2438×2895mm |
| FIF-400C | 40T | R404A | 147.35kw | 8000kg | 12192×2438×2895mm |
| FIF-500C | 50T | R404A | 176.3kw | 8500kg | 12192×2438×2895mm |
| FIF-600C | 60T | R404A | 204.9kw | 9200g | 12192×2438×2895mm |

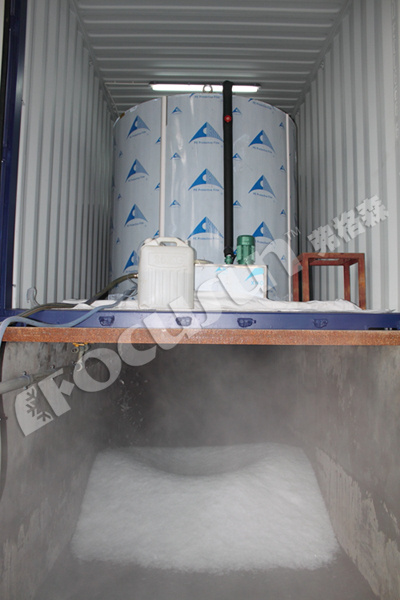

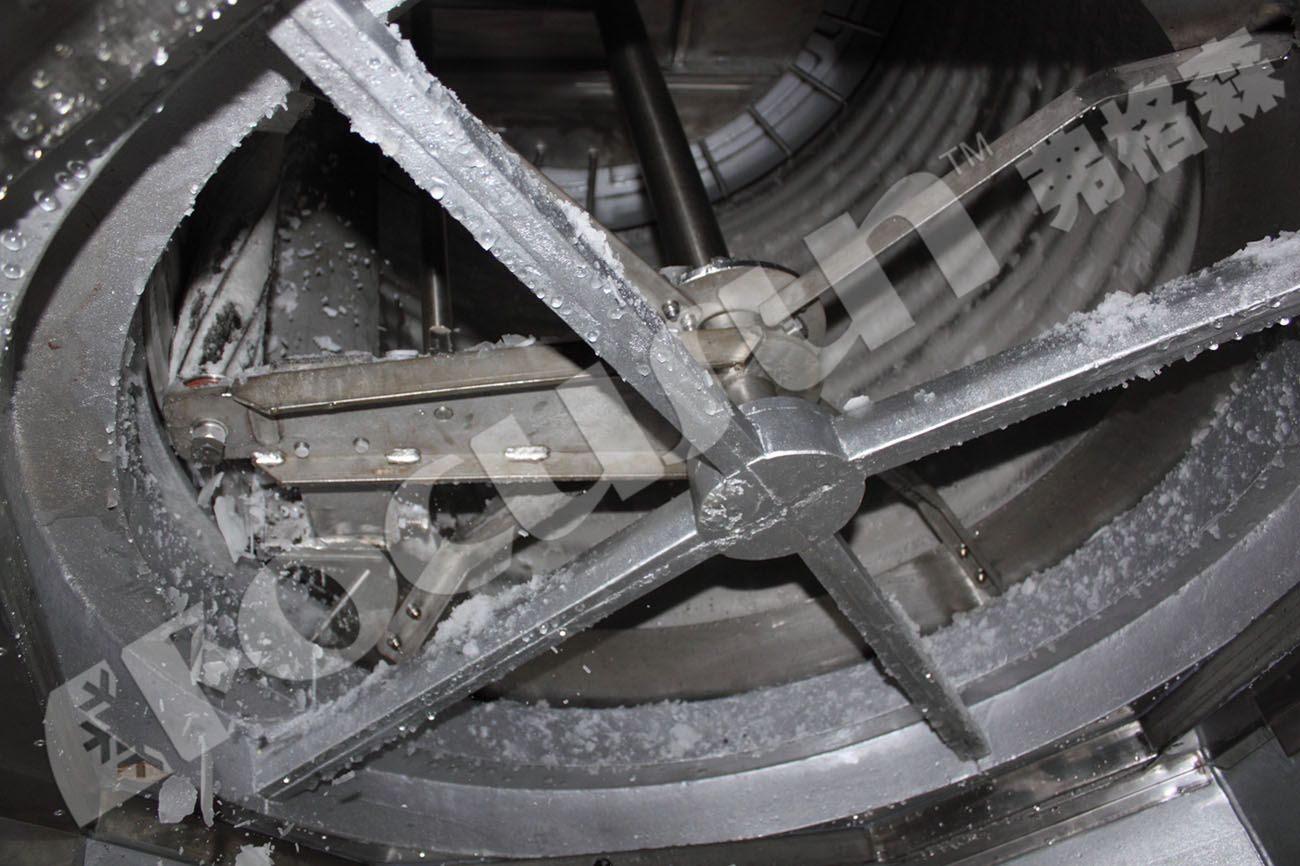

Focusun brand flake ice maker pictures:
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
