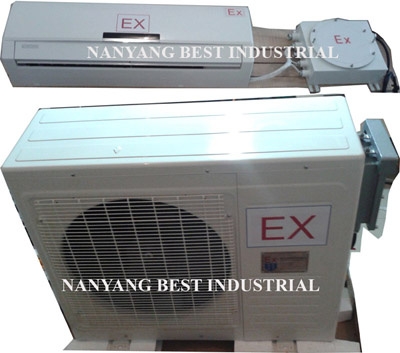

Nanyang Best Industrial Equipment Co., Ltd >> Flame Proof Air Conditioner
Type: Air Handling Unit

Product Description

Explosion-proof air conditioner for oil drilling plateforme
------------------------------ Product Features ------------------------------
1.The unites are Exclusively designed for the war industrial, military project and the Aeronautics and Astronautics industry.
  1. Suitably used  in the T1 -T6 environment .
    3.The adoption of international famous brand compressor, industrial machine design, makes the system safety and reliability, heating/cooling with high efficiency, long life of operation.
    4.Condenser, evaporator, through the specially designed dust-proof performance, used well in the dusty environment .
    5.Advanced technology on anti-corrosion and anti-dust.
    6.Wide-band voltage design, power supply voltage in the case of the relatively less stable and reliable operation .
    7.Energy saving: Can performance and not less than grade II, energy efficiency high and low power consumption, low operation cost .
    8.Environmental Protection: with filtration, ventilation, cooling and other features .
    9.Adoption of international standards of explosion-proof technology, explosion-proof high-performance, more safety .
    10.Explosion-proof mark : Exdmibb II BT4, Exdmbia II CT4,DIPA21/B21,DIPA22/B22 . Explosion proof protection can be designed according to the ambient environment.

2.Technical  specifications:
Spec.
model
Electric shock resistant protection classCooling/
Heating
(BTU/h)
Power
Cooling/
Heating
Consumption
(W)
Voltage(V)
Frequent(Hz)
Air flow
M3/ h
Temp
(ºC)
Size(mm)
Indoor
Outdoor
BST-2.5/FR I
9000/9385
830/850110/60
208/60
220/50

500

-7-43
750*250*195
700*535*235
BST-3.5/FR
I

12000/14670
750/1274110/60
208/60
220/50

550

-7-43
805*280*205
848*540*250
BST-5.0/FR
I

18000/17065
1600/1600110/60
208/60
220/50

750

-7-43
920*290*210
843*540*250
BST-7.2/FR
I

24000/28668
2600/2750208/60
220/50

1050

-7-43
1080*330*225
900*750*330

Ex Mark:

Exdemb ibnA  IIBT4        Exdmbia II CT4,   DIPA21/B21,DIPA22/B22



Elcome to Best industrial equipment, Best industrial equipment specializes in the engineering and manufacturing of explosion-proof products such as explosion-proof air conditioner, explosion-proof communicating products, explosion-proof lights, explosion-proof control and protection products, , explosion-proof accessories, explosion-proof junction boxes, . These products are used in the hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industries. Our explosion proof, severe duty systems are designed to offer a safe solution at a competitive price while maintaining the highest level of quality in both our systems and services.

Our goal is to satisfy our customer's needs with ever expanding product growth in a competitive atmosphere in a timely manner.
