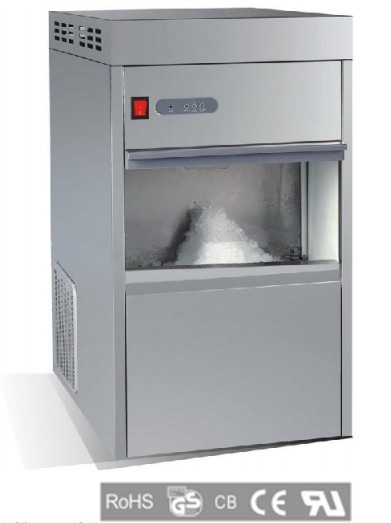

Flake Ice Maker, Lab Ice Machine

Flake Ice Maker, Lab Ice Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: IMS Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CCC
Condition: New
Ice Shape: Flake Ice

Product Description

Features:
1. Compact design, Luxurious appearance.
2. Adopted high-quality stainless steel outer skin, anti-corrosion and durable, independent of one structure, compact and simple, space-saving.
3. Cabinet insulation is CFC-free foam, fluorine-free antibacterial type inner, energy saving and environmental protection.
4. High efficiency CFC-free R134a compressor, components is detected by SGS Company, economical and in line with EU RoHs environmental requirements.
5. TUV or VDE safety certification for electrical safety components
6. Auto microcomputer control & running, easy to use.
7. Adopted Italian Haitec two-stage reducers, low noise, smooth and reliable operation. Cooling holes and fans in the top of the machine to ensure reducer motor reliable operation under high temperature and harsh conditions.
8. Small ice style and practical.
9. Tank float type water system to ensure that no residual water more than water, no de-icing process, absolute loss, the residual water, saving water and energy.
10. Ice full display, lack of water, too cold protection, fault warning display protective shutdown. The machine will automatically shut down by full/lack of water, automatically boot when the failure removed, with automatic memory & recovery function.
11. Small granular snow ice, designed for the laboratory.
12. Snow flake-shaped ice is widely used in hospitals, schools, laboratories, research institutes and other occasions as well as supermarket food preservation, fishing, cold storage, medical applications, chemical, food processing industry, a wide range of applications.
13. A power-overloading protecting device, water shortage auto-detecting system and ice storage full control device.
14. Power supply can be 220V/50Hz ± 10%, (110V/60Hz, 220V/60Hz can be customizable).
Model Capacity
(kg)/24h
Ice storage
(kg)
water
consumption
(L/H)
Size
(mm)
Dimension
(mm)
NW
(kg)
GW
(kg)
Input Power
(W)
IMS-20 20 10 ≤0.8 300×493×547 377×571×595 32 36 180
IMS-30 30 10 ≤0.8 300×493×547 377×571×595 32 36 180
IMS-40 40 15 ≤1.6 380×543×712 457×621×760 40 45 280
IMS-50 50 15 ≤2.0 380×543×722 457×621×770 40 45 280
IMS-70 70 25 ≤2.9 548×611×883 625×690×932 57 62 420
IMS-85 85 25 ≤3.5 548×611×883 625×690×932 57 62 420
IMS-100 100 25 ≤4.1 548×611×883 625×690×932 58 64 420
IMS-130 130 35 ≤5.4 548×611×883 625×690×952 62 68 478
IMS-150 150 35 ≤6.2 635×611×945 712×690×994 70 76 500
IMS-200 200 55 ≤8.3 680×641×1102 757×720×1150 85 91 805
IMS-250 250 55 ≤10.4 680×641×1102 757×720×1150 100 106 900
IMS-300 300 55 ≤12.5 720×641×1150 797×720×1200 100 106 1370


LABFREEZ as a proressional supplier & manufacturer is specially provides the scientific instruments and equipments for the life sciences and laboratory refrigeration.

Our company has an excellent research and development team which marvelously applies the leading technologies to designing, developing and producing Ultra-low temperature freezer, Refrigerators, Freeze dryer, Ice maker, chiller & Bath, rotary evaporator and etc. Our products are specifically designed for and welcomed by Scientific Research Institutes, Medical and Health, Aviation & Military, Biological Pharmacy, College Research Institutes of Electronics, Metal Process, Electronic Industry, Chemical Industry, Offshore Fishing Industry and Food processing.

Our company has acquired certificates of ISO9001, CE, CMD and the products have been welcomed all over the world, such as USA, Australia, Singapore, Malaysia, Turkey, India and etc. With high performance-price ratio and our fast response service team have earned approval and praise both from the domestic and international markets.
