| Prod Model: |
IMS series |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flake Ice: |
Commercial Use |
| Stainless Steel Outside: |
Grey Color |
| Certification: |
CE |
| Condition: |
New |
| Ice Shape: |
Flake Ice |

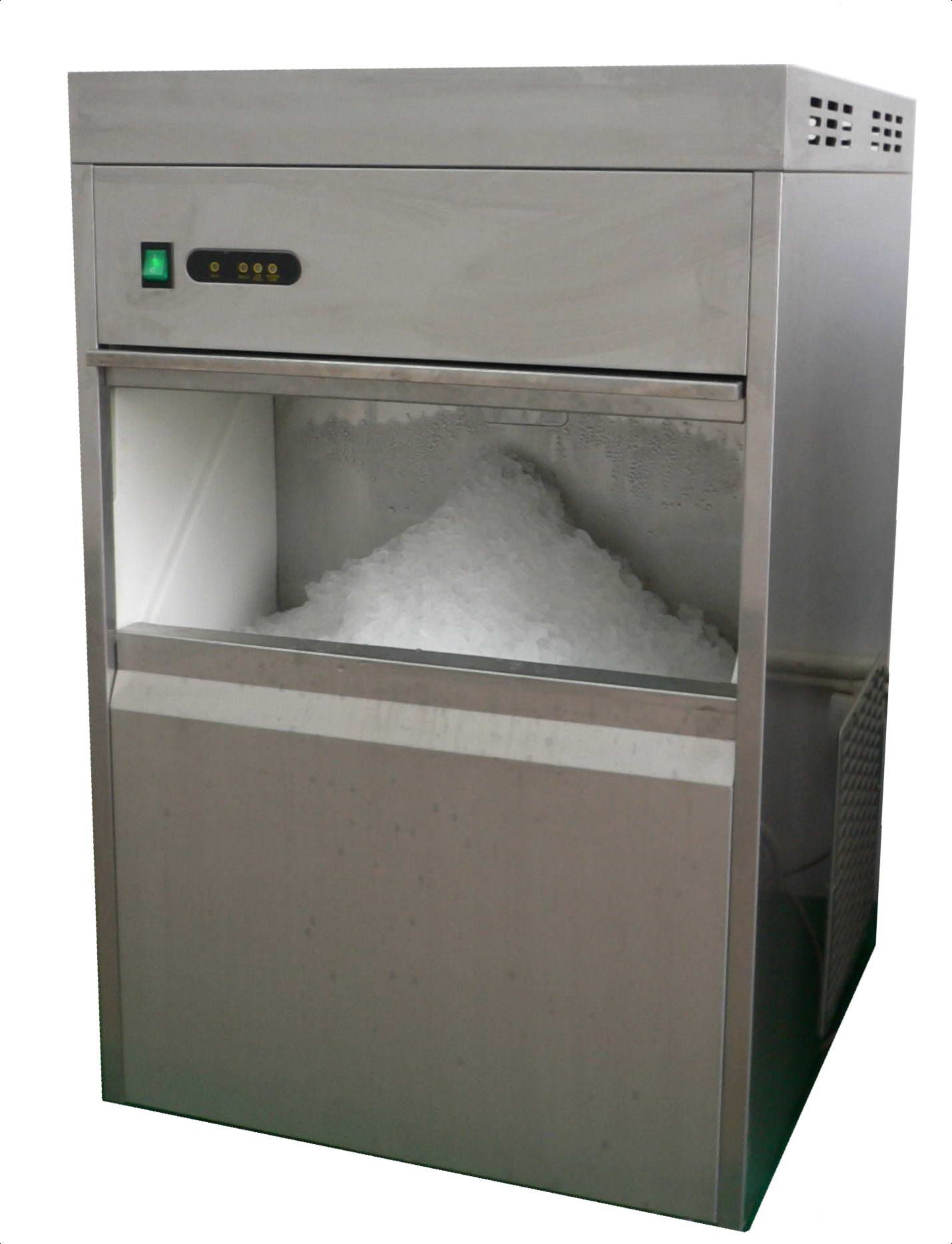

Product Description
Compact design, Luxurious appearance.
Full automatic running and easy to use.
Supply you with air intake and exhaust in cabinet side.
A power-overloading protecting device, water shortage auto-detecting system and ice storage full control device.
High efficiency CFC free compressor, economical and low energy consumption.
Model: IMS-25
Capacity: 25kg/24h
Ice storage: 10
Prod. Size(WxDxH)(mm): 330X503X607
Packing size(WxDxH)(mm): 407X581X665
Net weight(kg): 34
40'HQ(PCS): 400
Model: IMS-50
Capacity: 50kg/24h
Ice storage: 10
Prod. Size(WxDxH)(mm): 380X542X705
Packing size(WxDxH)(mm): 457X621X800
Net weight(kg): 40
40'HQ(PCS): 285
Model: IMS-100
Capacity: 100kg/24h
Ice storage: 20
Prod. Size(WxDxH)(mm): 548X612X872
Packing size(WxDxH)(mm): 615X685X932
Net weight(kg): 58
40'HQ(PCS): 114
Model: IMS-130
Capacity: 130kg/24h
Ice storage: 20
Prod. Size(WxDxH)(mm): 548X612X872
Packing size(WxDxH)(mm): 615X685X932
Net weight(kg): 60
40'HQ(PCS): 114
Front view
Flake ice type
EU plug
|
Model |
Capacity |
Ice storage(kg) |
Unit Dimension(mm) |
Packing dimension(mm) |
Refrigerant |
N.W.(Kg) |
G.W.(Kg) |
40'HQ(Pcs) |
|
IMS-25 |
25kg/24h |
10 |
330X503X607 |
407X581X665 |
R134a |
34 |
38 |
464 |
|
IMS-50 |
50kg/24h |
10 |
398X542X732 |
465X615X790 |
R134a |
40 |
45 |
285 |
|
IMS-100 |
100kg/24h |
20 |
548X610X823 |
625X690X872 |
R134a |
58 |
64 |
114 |
|
IMS-130 |
130kg/24h |
20 |
548X610X823 |
625X690X872 |
R134a |
60 |
66 |
114 |
