| Prod Model: |
QFI-XF |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Flake Ice Thickness: |
1.5mm - 2mm |
| Evaporating Temperature: |
-20 Deg. Celsius |
| Condensing Temperature: |
40 Deg. Celsius |
| Inlet Water Temperature: |
16 Deg. Celsius |
| Cooling Capacity: |
11kw |
| Cooled Method: |
Air Cooled |
| Power Supply: |
3pH 380V/50Hz |
| Total Input Power: |
6.7kw |
| Machine Size: |
1500mm X 1400mm X 2190mm |
| Usage: |
for Sea Food Refrigeration |
| Control: |
Electric |
| Power: |
>400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Flake |
Product Description

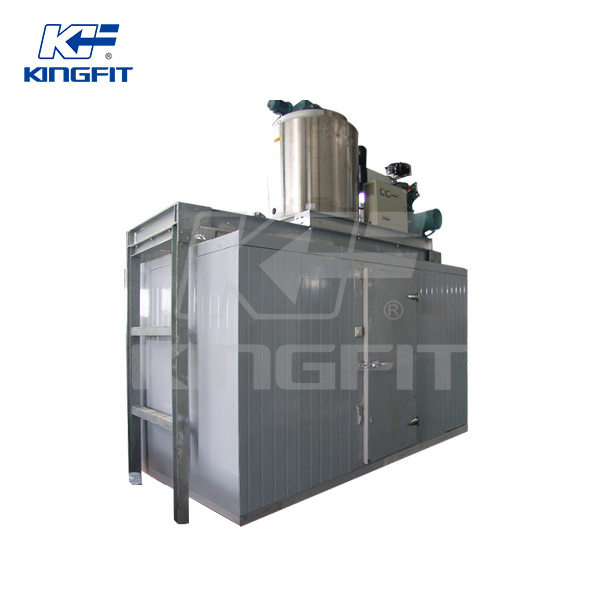

Commercial flake ice machine is small-sized products specially designed for clients who need less amount of ice. It has the advantages of small space requirement, easy maintenance and convenient relocation. The components of the machine are made up of stainless steel SUS304, aluminum alloy, and PE that are in good conformance with the international standard HACCP and FDA. The ice from this machine is very dry, pure, powderless, uneasy blocking. This machine and work constantly and efficiently for more than 10, 000 hours without any faults.
Capacity from 500kgs to 5000kgs per 24hrs;
The commercial flake ice maker is particularly suitable for refreshing vegetables and foodstuff in supermarket and quick cooling for processing fishery products and butchery.
Large ice making system is produced special for large-scale food-processing plant, aquatic plant, poultry slaughtering plant, chemical plant, bio-pharmaceutical and concrete mixing's ice requirement. The system mainly uses screw rotor compressor units or piston parallel units to achieve cooling. The cooling accessories contain separator, filter drying etc.
Capacity from 8000kgs to 60000kgs per hrs.
The large ice making system has been widely applied for the cooling process in fermentation, dairy production, chemical dyes, biological pharmacy, scientific experiment, mining temperature reduction, concrete cooling, hydroelectric power station, unclear power station, etc.
| QFI-XF/XS Series Flake Ice Machine Technical parameters |
| Model | Capacity
(kg/24h) | Refrigerating
capacity (KW) | Total Power | Cooling
method | Unit Dimension
(L×W×D(mm) | Weight
(kg) |
|
|
| QFI-0.5F | 500 | 3.05 | 2.27 | Air cooed | 1310×690×709 | 160 |
| QFI-1F | 1000 | 6.25 | 4.21 | 1310×690×882 | 210 |
| QFI-1.5F | 1500 | 8.15 | 5.42 | 1550×1000×970 | 330 |
| QFI-2F | 2000 | 10.32 | 6.72 | 1550×1000×1020 | 360 |
| QFI-2.5F | 2500 | 13.12 | 8.52 | 1550×1000×1050 | 390 |
| QFI-3F | 3000 | 19.17 | 9.82 | 1550×1000×1130 | 470 |
| QFI-5F | 5000 | 28.8 | 18.4 | 1850×1370×1373 | 1100 |
| QFI-5S | 5000 | 28.8 | 15.28 | Water cooled | 1850×1370×1373 | 1100 |
| QFI-8S | 8000 | 43.2 | 22.79 | 2300×1650×1525 | 1300 |
| QFI-10S | 10000 | 51.5 | 29.17 | 2300×1650×1745 | 1500 |
| QFI-12S | 12000 | 79.0 | 42.0 | 2480×2000×1780 | 2000 |
| QFI-15S | 15000 | 106.6 | 55.47 | 3200×2010×2061 | 3200 |
| QFI-20S | 20000 | 113.6 | 65.57 | 3400×2180×2370 | 4200 |
| QFI-25S | 25000 | 154.8 | 77.25 | 3800×2540×2452 | 5000 |
| QFI-30S | 30000 | 184.5 | 92.4 | 4500×2540×2772 | 6000 |
| QF-35S | 35000 | 219.5 | 108.35 | 4780×3010×2658 | 6500 |
| QFI-40S | 40000 | 253.8 | 121.85 | 5000×3010×2818 | 7500 |
| QFI-50S | 50000 | 329.1 | 160.15 | 5000×3010×3158 | 10000 |
| QFI-60S | 60000 | 393.7 | 189.35 | 5500×3010×3358 | 12000 |
| Standard ambient temperature: 25deg. Celsius; Water supply temperature: 16deg. Celsius; |
| Refrigerant: R22, R404a. |
| Power supply: 3PH 380V/50HZ/60HZ; 3PH 460V/60HZ; 3PH 230V/60HZ. |
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
