| Prod Model: |
XY800 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Explosion-Proof Class: |
Exdibiib+H2(Hydrogen)T6 |
| Resolution: |
800*480/ 800*600/ 1024*768 |
| Brightness: |
300CD/M2 |
| Backlight: |
LED |
| LCD Life: |
50,000 Hours |
| CPU: |
32 Bit 400MHz Risc Arm926ej |
| Memory: |
128m Flash 64m DDR2 DRAM |
| Rtc: |
Built-in Real-Time Clock |
| Ethernet: |
7" Na/According to Customer Requirements Others |
| Operating Temperature: |
Normal:-20~60degree; Wide: -40~70degree(10.4" up) |
| Screen Size: |
5-15 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Industrial Control System |
| Customized: |
Customized |
Product Description
Introduction

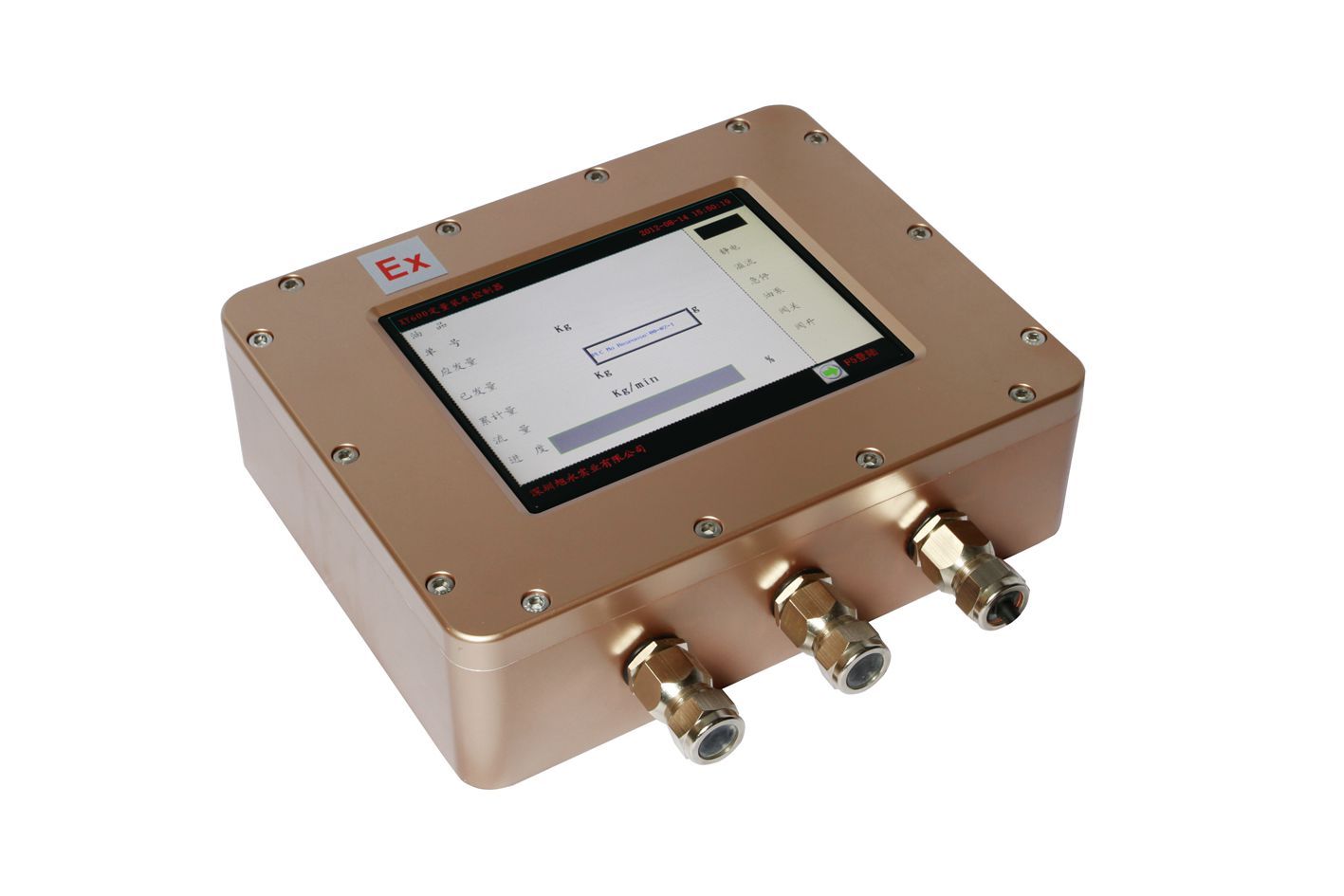

XY800 is a type of explosion-proof human-machine interface with touching operation. This product uses 32-bit RISC CPU and a simplified LINUX kernel, can display various true coler graphics formats, and meet the needs of most customers with superior processing speed and rich software features. XY800 explosion proof HMI has functions including direct and indirect online simulation, large-capacity memory for users to configure and storage programs, standard C language compatible with macro commands, it perform such functions as field data collection calculation, and control rapidly and effectively, also supports direct communication with the various mainstream PLCs. It is widely used in mechanical equipment control systems in hazardous locations in industries of petroleum, chemical, pharmaceutical, metallurgy and others, where explosive gas or dust exists.
Features
1. 65536 colors TFT display, support for import of images in BMP, JPG, GIF formats.
2. High-performance 32-bit 400MHz RISC CPU with fast processing performance to ensure higher efficiency.
3. Powerful XYFD2000 configuration software features and support for the C language macro script.
4. Support for Profibus-DP, CAN, MPI bus communication, MPI multi-screen, multi-machine networking.
5. Free data exchange between any communication ports.
6. Safety: suitable for using in the dangerous area with explosive gas Zone 1, Zone 2.
| Screen size | 7",8",10.4",12.1",15" TFT LCD |
| Resolution | 800*480/ 800*600/ 1024*768 |
| Brightness | 300cd/ |
| Backlight | LED |
| LCD life | 50,000 hours |
| CPU | 32 Bit 400MHz RISC ARM926EJ |
| Memory | 128M Flash 64M DDR2 DRAM |
| RTC | Built-in real-time clock |
| Ethernet | 7" NA/According to customer requirements others: Standard |
| USB port | 1USB Host 1.1 port: support for U disk memory
1USB Device 2.0 port: Support for USB program download |
| Download method | Support for download through the USB host port/ USB slave port/ RS232/RJ45 |
| Operating temperature | Normal:-20~60ºC
Wide: -40~70ºC(10.4" up) |
| Storage temperature | Normal: -30~80ºC
Wide: -40~80ºC |
| Ambient humidity | 10~90% RH(no condensation) |
| Rated consumption | 5W, max 8W |
| Rated voltage | DC24V; allowable operating range: DC 18~32V |
| Power protection | Use the isolated power module and have lighting surge protection |
| Loss of electricity allowed | <5ms |
| Electrical Interface | 3*1/2" exlosion-proof sealed joints |
| Explosion-proof class | ExdibIIB+HT6 |
