Jiangsu Polygee Environmental Technology Co., Ltd. >> Electrostatic Air Cleaner (EP-40 Horizontal Combination)

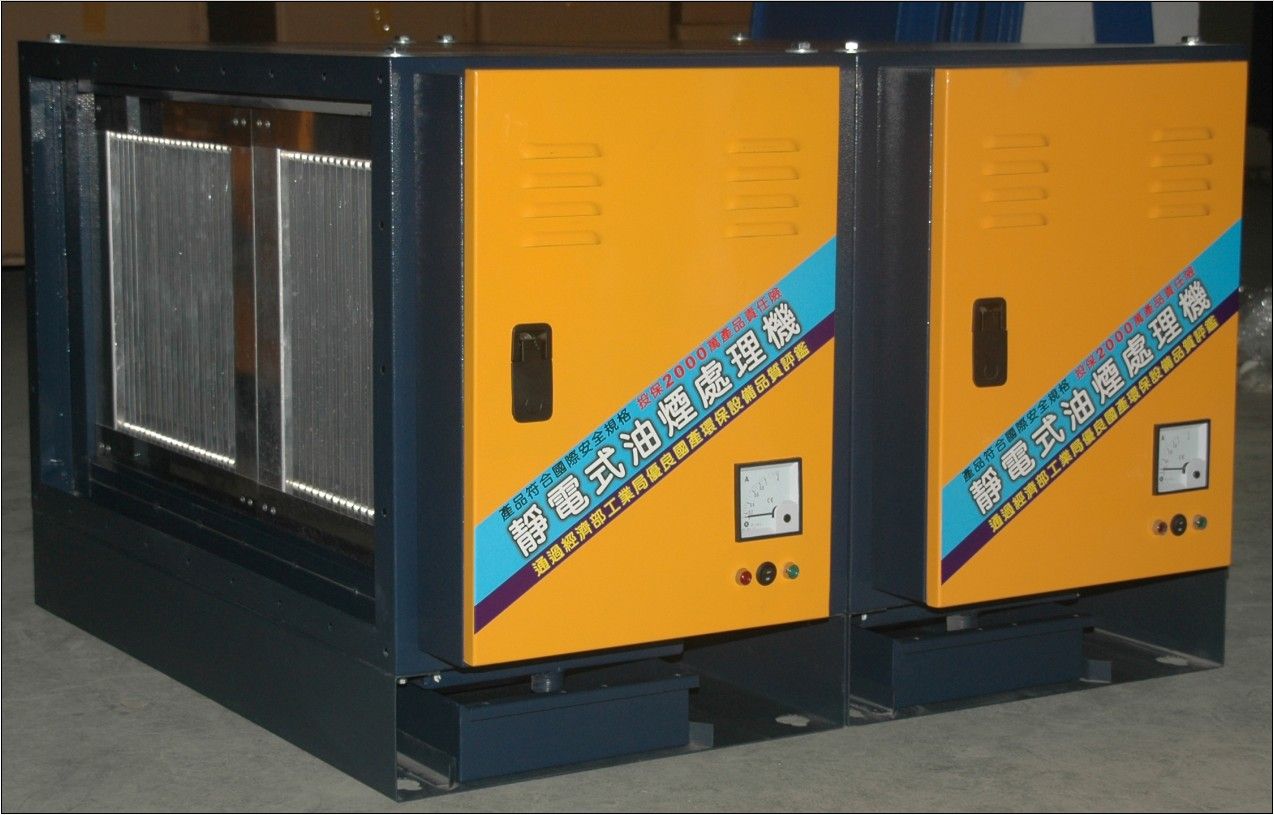

Electrostatic Air Cleaner (EP-40 Horizontal Combination)

Electrostatic Air Cleaner (EP-40 Horizontal Combination)
Price: US $ 790/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T
Prod Model: EP-40
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Original: China
Band: Polygee
Color: Coustomer Designed
Usage: Industry
Purifying Technology: Electrostatic
Type: Air Ionizer
Certification: CE

Product Description

Applications:
Hotel, Restaurant, Kitchen, Food-Processing Pant

How it works:
Contaminated air is drawn by the motor/blower through a
Washable metal mesh pre-filter, which traps large dust
Particles. The remaining particles, some as small as 0.01
Microns, pass into a strong electrical field (12.5kv-13kv)
(ionizing section) where the particulate receives an
Electrical charge. The charged particles then pass into a
Collector plate section made up of a series of equally
Spaced parallel plates. Each alternate plate is charged with
The same polarity (6kv-7kv) (collecting section) as the
Particles, which repel, while the interleaving plates are
Grounded, which attract and collect the contaminants. The
Contaminants are held in these plates until they are
Washed away.

Features:
Efficient: LK purifier collects the particles as micro as 0.01 microns at a rate of 99%
Flexible: Modularized parts are easy to assemble as per different air-flow and requirements
Convenient: Drawer-style modularized parts are easy to fix and maintain
Advanced: Electrostatic power control system adjusts the electric field intensity automatically,
Safe: Safety system automatically protects all units by the flashing tracking
Stable: Overload protection in the power system ensures the stable running.
Economic: Long term service, lower power consumption, less space occupation.
Type Airflow      (CMH) Dimension            (MM) Flange      (MM) Weight          (KGS) Efficiency Input  Voltage Power        (W) EXW  Price      (USD)
EP-20 Single  Unit 2000 590*500*666 404*474 55 ≥ 99.5% 220  V 40 547
EP-30 Single  unit 3000 800*500*666 612*474 65 60 673
EP-40 Single  unit 4000 1060*500*666 874*474 75 80 788

Polygee Environmental Science and Technology is engaged in the development of electrostatic air cleaning equipment professional company. The company is located in the top ten economies of China county (city), "International Garden City", "United Nations Habitat Award" from the Town - JiangsuProvinceZhangjiagangCity, located in Shanghai and Suzhou, two hours economic circle, located on the south bank of Yangtze River, close to 204 National Highway and along the highway, and strategic location, convenient transportation.

Under the motto of "Science and technology service nature", our company has imported advanced two-area shallow distance electronic dust-collecting technology and invented good-quality polluting air cleaning equipment,

Now we have two branches in the south and north of JiangsuProvince. We supply our products all over the country. What's more, our products sell well in Taiwan Area, Singapore, Korea and so on. We also supply spare parts and OEM products to some famous factories and companies. We have tried our best to supply efficient method for environmental protection.

Gave people a blue sky, is always the goal Polygee environmental protection technology want to pursue. We always believe, the courage to assume responsibility for the business will contribute to social development. Our company will continue commitment to management innovation, leading technology innovation and careful to provide higher quality products and services, efforts to build industry leading brands.
