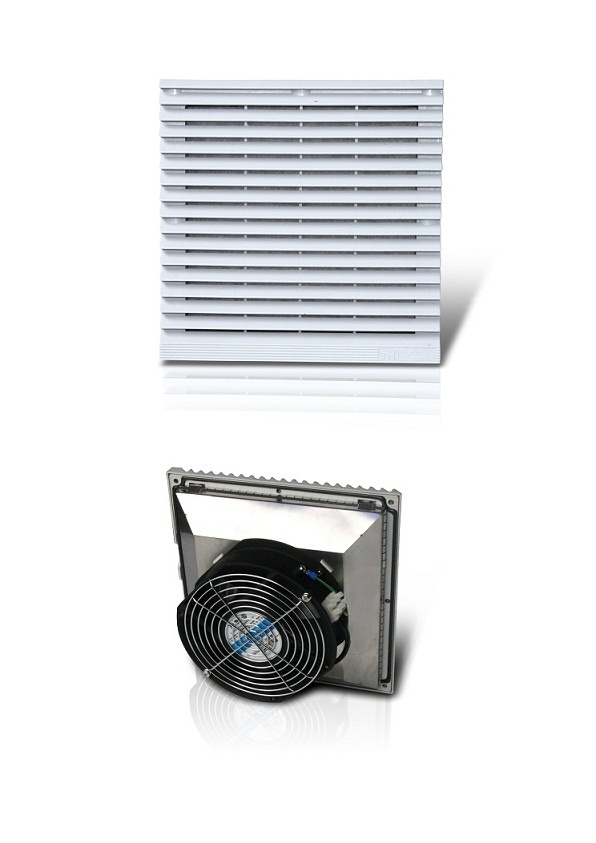

Electrical Cabinet EMC Filter Fan

Electrical Cabinet EMC Filter Fan
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Set
Pay Type: L/C,T/T
Prod Model: R224-230/115/024/048-EMC
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Type: Ventilation Fan
Power Supply: Electric
Application: Industrial
Remote Control: Without Remote Control
Timer: Without Timer
Certification: RoHS
Speed: 1 Speed
Power: <100W
Material: Plastic
Installation: Wall Mounted

Product Description

Features:

--Compact structure, rational design and low noise level;



--Long stability of high efficient and continuous operation



--Suitable for the continuous working in the tough environment;



--The special grille designed to prevent the ingress of the contaminants and moisture;



--Protection category can be enhanced up to IP 56 with an extra spraying water resistent shroud;



--Good integration of filter mat, grille and fan; easy and fast installation;



--With EMC shielding function; the attenuation factor is, no influence against 300MHz and smaller than 10 dB against the range from 300MHz to 1 GHz.



Airflow data:

Model No.R224-230-EMC         R224-115-EMC    R224-024-EMCR224-048-EMC
Factory ID No.30100198                    30100199                     30100197                   30100200
Rated frequency50 Hz; 60 Hz
Umimpeded airflow272 m3/h; 306 m3/h                272 m3/h
Airflow in combination(together with outlet filter R224-000-EMC)177 m3/h; 200 m3/h177 m3/h
Cutout dimension225x225 mm, tolerance +1/-0 (panel thickness <=2mm)
Max. static pressure(airflow=0m3/h)110 Pa
Filtration efficiency88 %
Filter material grade(DIN EN779)G3
Noise level (DIN 45 635)70 dB(A)
Duty cycle100%



Electrical Data:

Model No.                           R224-230-EMCR224-115-EMCR224-024-EMCR224-048-EMC
Rated voltage230VAC115VAC24VDC48VDC
Range of operation187~253V97~127V14~28V36~56V
Power consumption30/35W30/35W13W14W



Supplementary data:

Outside dimension                          255mm(H)*255(W)*(12.5+105)mm(D)
Bearing typeBall bearing
Fitting positionAny, horizontal airflow preferred
Constructionhousing and guard of sprayed thermoplastic(ABS-FR), self-extingushing, UL 94 VO
Weight3.10 Kg                                                                  2.80 Kg
Safety protectionin accordance with DIN 31001
ColorRAL 7035
ConnectionTerminal
Operating temperature- 10 °C (+ 14 °F) to + 55 °C (+ 131 °F)
Storage temperature- 20 °C (- 4 °F) to + 70 °C (+ 158 °F)
Max.relative humidity90%
Protection categoryIP 54(EN 60 529)
ApprovalCE

Guangzhou Rack Technologies Electro-Mechanical Co., Ltd. is one of largest manufacturers of enclosure climate control units in China. We specialize in filter fans and exhaust filters, enclosure climate control units, heat exchangers, recooling systems, cabinet heaters, enclosure lighting system and cabinet environmental monitor&alarm systems, which are widely applicable in the field of aircraft construction, automobile, rail technology, mechanical engineering, medical technology, tunel and etc. Under the tough or extreme environment

Our well-equipped facilities and excellent quality control throughout all stages in production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certificate.

The philosophy of the company is detail-oriented, and our company emphasizes heavily on quality and service. Abiding by this philosophy, we aim to provide customers with complete customer satisfaction that is second to none.

If you are interested in any of our products or would like to discuss a custom order or be interested in being a distributor of our company, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
