| Prod Model: |
CNLP3.7-2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3.7V |
| Capacity: |
2800mAh |
| Weight: |
100g |
| Size: |
7.2 X 56 X 63 Mm |
| Type: |
Lithium-Polymer Battery |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Flat Battery |
| Usage: |
Boat |
| Nominal Voltage: |
3.7V |
Product Description

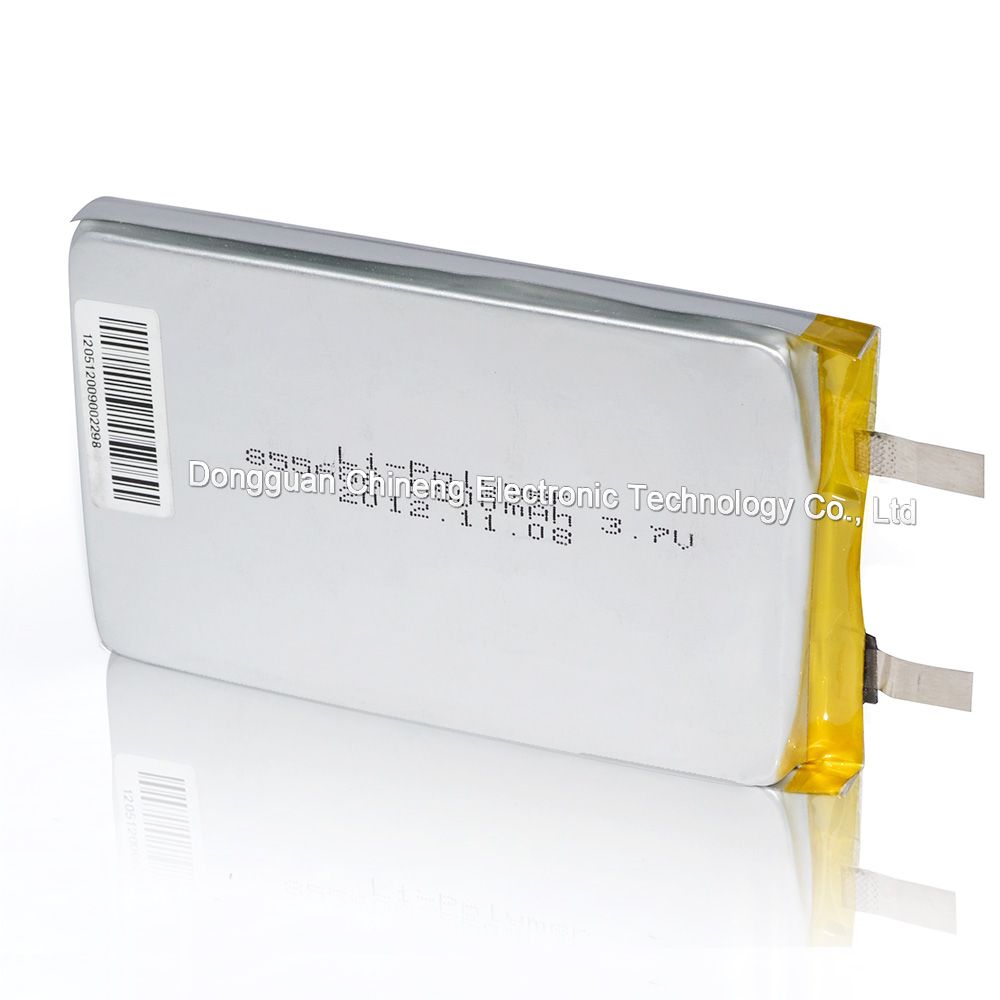

Lithium polymer batter 3.7V 2800mAh
Basic Information:
Battery Model: CNLP3.7-2800
Minimal Capacity: 2800mAh
Capacity: 2800mAh
Nominal Voltage: 3.7V
Charge voltage: 4.20± 0.025V
Discharge voltage: 3.0± 0.05V
Storage Temperature: -5-35° C
Inner Impedance: ≤ 38mΩ
Max continue discharge current: 1.5C
Max charge current: 1.0C
DVD battery Advantages:
Product Advantages:
1, Environmental friendly, excellent security
2, High energy density, high capacity
3, Low self-discharge, no memory effect
4, Long cycle life of more than 500 times
5, CE / ROSH / SGS / UL /MSDS / UN38.3 / IEC standard
6, More than 15 years experience in fileds of polymer lithium ion batteries
Applications of DVD battery:
1. Cellular phone, interphone, bluetooth earphone
2. MP3/MP4/MP5, digital camera, tablet
3. GPS, PDA, E-book, PMP, PSP, POS machine, portable DVD, portable television, laptop PC
4. Miner lamp, search light
5. Electric Toys, RC helicopters
|
No. |
content |
Testing method |
Requirements |
|
1 |
Charge
cut-off voltage |
4.20±0.05V |
|
|
2 |
Discharge cut-off voltage |
3.00±0.05V |
|
|
3 |
Standard charge |
1. Charge the battery at constant current of 0.2C to reach 4.2V. Then charge the battery at constant 4.2V voltage until the charging current decreasing to 0.01C.
2. Charge the battery at constant current of 0.5C to reach 4.2V. Then charge the battery at constant 4.2V voltage until the charging current decreasing to 0.01C. |
Charge time≤8 hours |
|
4 |
Standard discharge |
After the standard charging,rest for 1 hour then discharge to 3.0V @ 0.2C. |
Discharging time≥300Min |
|
5 |
Rate discharge |
After the standard charging,rest for 1 hour then discharge to 3.0V@1C. |
Discharging time≥51Min |
|
6 |
High temperature
characteristics |
Fully charging, store them at (55±2)°C for 2 hours, then discharge to 3.0V @1C. |
Discharging time≥51Min
No transform
No explosion,No fire,No leakage. |
|
7 |
Low temperature Characteristics
|
Full charging, store them at (-10±2)°C for 16-24 hours, then discharge to 3.0V @0.2C. |
Discharging time≥210 Min
No transform ,
No explosion,
No fire,No leakage. |
|
8 |
Capacity retention |
Fully charging, store them at (20±2)°C for 28 days, then discharge to 3.0V @0.2C. |
Discharging time≥255Min |
|
9 |
Cycle Life @25°C |
.Discharge to 3.0V @0.5C, then Charge the battery @0.5C to reach 4.2V. Then charge the battery at constant 4.2V voltage until the charging current decreasing to 0.01C. Rest for 10 min. discharge to 3.0V@ 0.5C and rest for 10 min. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity. |
Cycle life ≥300 |
|
10 |
Storage |
Charge the battery to 40%- 65% of its rated capacity using standard charging mode, then keep it in an 20°C±5°C, humidity 45%- 85% room for 12 months. Discharge it @0.2C until voltage down to 3.0V.
(The testing sample should be within 3 months dated from production date) |
