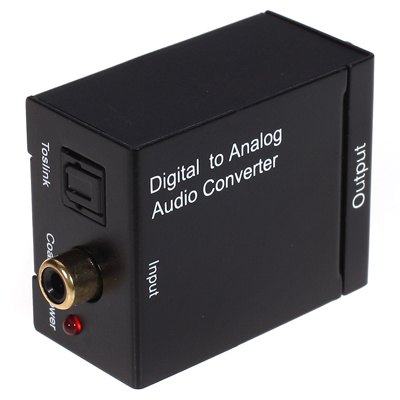

Digital Optical Coax Toslink to Analog Audio Converter

Digital Optical Coax Toslink to Analog Audio Converter
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 11/Piece
Pay Type: T/T,Paypal
Prod Model: HDV-2M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Home Audio & Theater Speaker Mount: Ceiling
Home Audio & Theater Watts Per Channel: <50W
Player Type: Blue-Ray Player
Speaker System Audio Output Mode: Dolby Digital
Control: Wired
Sound Channel: 7.1
FM: Without FM
HDMI Quantity: 1
Finish: Metal Housing

Product Description

Thank you for purchasing this Audio Converter.
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference


1.0 Introduction
This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.


1.1 Features

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1. Converts Coaxial or Toslink digital audio signals to analog L/R audio
2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3. 24-bit S/PDIF incoming bit stream on left and right channels
4. Provides electromagnetic-noise-free transmission.
5. Easy to install and simple to operate.


2.0 SPECIFICATIONS
Signal Inputs/Output
Input Audio Coaxial or Toslink digital audio
Output AudioL/R audio
Connector
Input audio connectorToslink,1XRCA(Coaxial)
Output audio connector2XRCA(R/L)
Sampling rate32, 44.1, 48 and 96 KHz
Size(L-W-H)51X41X<26MM>
Weight (Net)<78g>
Warranty
Limited Warranty1 Year Parts and Labor
Environmental
Operating Temperature<ºC> to +<70ºC>
Operating Humidity10% to 85 % RH (no condensation)
Storage Temperature<-10ºC> to +<80ºC>
Storage Humidity5% to 90 % RH (no condensation)
Power Requirement
External Power Supply5V DC@1111A>
Power Consumption0.5 watts (max)
Converter UnitFCC,CE,UL
Power SupplyUL,CE,FCC
Accessories Adapter
AC Power Adapter<US> standard, <<<<UK>>>> standard and so on
User ManualEnglish Version
Note: Specifications are subject to change without notice

3.0 PACKAGE CONTENTS
  Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1).Main unit (Digital to Analog Audio Converter).
2).5V/DC POWER SUPPLY.
3) USER's Manual.

4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s),output(s) and power requirements.

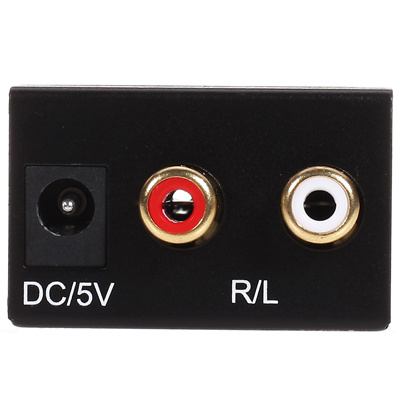

Back Panel:       upper Panel:          Front Panel:


5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1) Connect the audio source device to the Converter using appropriate Toslink  or Coaxial cables.
2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate L/R cable.
3) Insert the DC side of 5v power supply into the converter and then connect the AC side of the power supply into the wall outlet.
Note: When connected to the Toslink and Coaxial cables at the same, the product will give priority to Toslink input

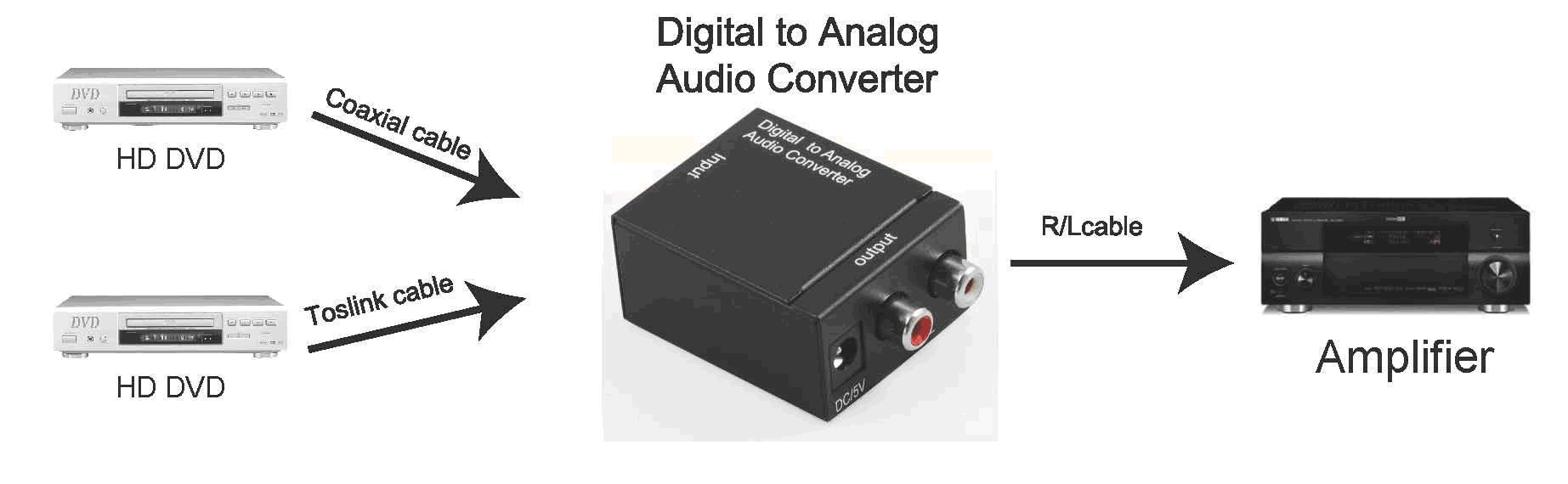

5.1 CONNERCTION DIAGRAM
