| Prod Model: |

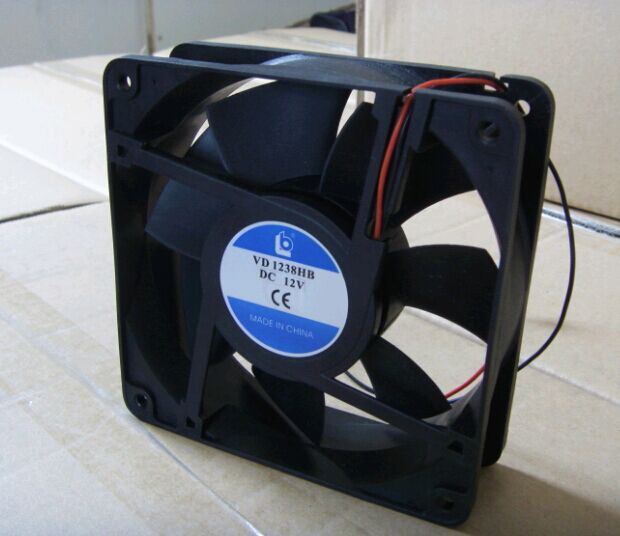

VD12038HB-12V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Certification: |
SGS |
Product Description
1.General Specification
| Item | Description | Condition |
| 1-1. Dimension | 120*120*38mm |
|
| 1-2. Bearing Type |
Two Ball Bearing |
|
| 1-3. PCB Name | ***** |
|
| 1-4. Rated Voltage | 12V |
|
| 1-5. Operating Frequency | ****Hz |
|
| 1-6. Operating Voltage | DC7.5V~13.8V |
|
| 1-7. Start-up Voltage | <7.5V |
|
| 1-8 Rated Current | ≤0.68A+10% | At Rated Voltage:
A.25ºC
B.65%RH
C.Measured after 5minutes |
| 1-9. Rated Power | ≤8.16W+10% |
| 1-10. Rated Speed | 3100rpm/min±10% |
| 1-11. Max. Air Flow | 118.7CFM |
PQ Measurement Apparatus
Standard: AMCA
Rated Voltage
Rated Current |
|
| 1-12. Max.Static Pressure |
|
| 0.32inch-H2O |
| 1-13. Noise level | 46.5dBA |
Rated Voltage
Mute Room
Distance:1M
Background Noise: <18dB |
1-14. Life Expectance | 50000hrs at 40ºC |
|
| 1-15. Pole | 4Poles |
| 1-16. Rating Direction | anticlockwise |
Electrical Specification
Item | Condition |
2-1.
Locked Rotor Protection | Safety Condition |
| ,,26Auto power off after locked at rated voltage for 1sec. And then circuit attempt to restart in 2 to 6 sec. |
2-2.
Polarity Protection | VccGND,Open circuit when Vcc&GND are exchanged |
| VccGND,5 Circuit won't be burned within 5seconds when Vcc&GND are exchanged |
2-2.
Insulation Resistance | At least 10MΩ at 500 VDC between housing and both lead wires |
2-3.
Dielectric strength | Withstand 500 VAC 1 minute 1mA between housing and both lead wires |
Specification of Main Material
3-1. Frame | PBT+GF30% |
| 3-2. Propeller | PBT+GF15% |
| 3-3. Bobbin | PBT+GF30% VO |
| 3-4. Lead wires | Red(+),Black(-),1007#22AWG, 250 ±5mm |
| 3-5. Connector | None |
Environmental Specification
Item | Condition |
4-1.,
Operating Temp. Humidity Range | Temperature: -10~+70ºC |
| Humidity :15%~90%RH |
4-2.,
Storage Temp. Range | Temperature: -20~+85ºC |
| Humidity :15%~90%RH |
Mark:
1.We have three types :with wires,with connector and with dual voltage.
2.It'sells well both at home and abroad and enjoys a good fame.
3.Mainly exported to Europe and the United States
4.UL,CE.ROHS,SGS
5.Company principle:hish efficiency,high quality,good price ,doos service and customer first.
6. We warmly welcome friends from and abroad us and cooperate with us
Operating since 1994, Established in 1994, Suzhou New District BAILI Electron Co. Ltd specialized in manufacturing axial AC and DC fans, FLJ series of small centrifugal blowers and TDY series of PM slow speed synchronous motors. We produce 110V/220V/380V AC fans and 5V/12V/24V DC fans. These products are characterized by small size, easy to install, low noise, less vibration, reliable operation and excellent functions.
Our products are used for ventilation and cooling, chiefly applied to the automatic controlling apparatus on ground, electronic devices, electric welding machines, medical instruments, computer, power equipment, welding machines, satellite communications and office appliances.
Meeting UL, CE, SGS, CCC and RoHS Standards
Customers in Europe, the US and Southeast Asia have already accepted our products, as well as sold to many industries in China. Our products are compliant with UL, CE, SGS, CCC and RoHS standards and are manufactured under our ISO 9001: 2000-certified production.
Inquire Today
We are always improving the quality of our products to consolidate to the world market. Our principle is "high efficiency, high quality, low price, good service and customer first". Contact us today to know more.
