| Prod Model: |
PA-502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
20Hz-25kHz ±0.5dB |
| Input Sensitivity: |
20k Ohm Balanced/10k Ohm Unbalanced |
| Power Requirement: |
200-240V/50-60Hz |
| Usage: |
KTV System |
| Tube Type: |
Tube Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 110V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description
OVERVIEW

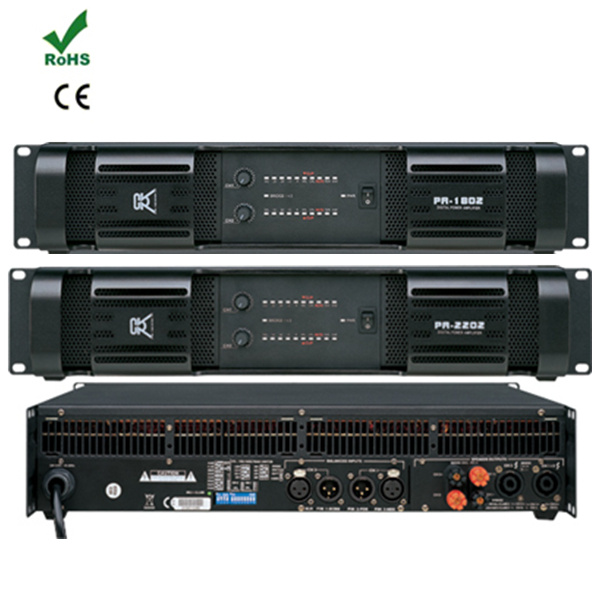

PA-Series are 2-channel switching power amplifiers, new generation high quality, high efficiency SMPS power amplifiers. Standard 2U height and 13kg light weight make it ideal for touring performance and fixed installations. With full protect functions, it adopts a full range of onsemi power output transistors. PA-Series supply low distortion, great signal-to-noise ratio, low consumption, high performance, compact size, light weight,delay circuit for soft start and low in rush current advance the appliance to operate efficiently. Two voltage specifications (100V-140V and 200V-240V) are available as per customers requirements.
APPLICATIONS
Club installations
Live performances
Theater installations
FEATURE
Light weight
High efficiency
SmaIl size, 2U height
Best performance in LF
Clear and attractive sound
Model| Model | PA-502 |
| 8Ω Stereo Power | 2×500W |
| 4Ω Stereo Power | 2×725W |
| 8Ω Bridged Mono Power | 1450W |
| 4Ω Bridged Mono Power | 1660W |
| Frequency response | 20Hz-25kHz ±0.5dB |
| THD+N(Rated Power,4Ω/KHz)% | <0.1% |
| Signal Noise Ration(dB) | >110dB |
| Input Sensitivity | 20K Ohm Balanced/10K Ohm Unbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) |
| Power Requirement | 200-240V/50-60Hz |
| Airframe Dimension | 483×377×88mm |
| Package dimensions | 575×565×145mm |
| Net Weight | 11.5kg |
| Gross weight | 13.5kg |
Guangzhou CVR PRO-Audio Factory is a manufacturer specialized in producing professional audio equipment with an own brand "CVR "since 2005. Our 5, 000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs. CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market, carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.
