Customized Size Indoor P6 SMD Full Color LED Display

Customized Size Indoor P6 SMD Full Color LED Display
Price: US $ 400-600/Square Meter
Trade Terms: FOB,EXW,CIF
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
Prod Model: P6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Indoor
Module Size: 192mmx192mm
Cabinet Size: 960mmx960mmx100mm(Customize)
Cabinet Material: Cold Rolled Steel/Aluminum
View Distance: >6m
LED Life: 100000hrs
LED Chip: Epistar
Power Supply: Meanwell
Maximum Power Consumption: 400W/M2
Warranty: 2 Years
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 6mm
Pixel Density: 27,777 dots / m²
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
Certification: C-Tick, FCC
Pixel Configuration: 1r1g1b SMD 3-in -1, 1R, 1G, 1B
System Operating Platform: Win XP, Win 7, Win 8
IP Rating: IP 20

Product Description

Customized Size Indoor P6 SMD Full Color LED Display

Product Description:
1. CE,FCC,RoHS,C-Tick approved
2. High defination, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty,  best after-sales service
5. Video, flash, animation, graphic, text available;
6 .Installation structure drawing offered FOC;
7. Factory visiting and inspecting is welcome;
8. OEM service offered;
9. Models available:
    Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm etc.
    Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm etc.

Specifications:
Pixel Pitch6mm
Pixel Configuration1R1G1B SMD 3-in-1
Pixel Density27,777 dots/sqm
Module Size(mm)192x192
Pixels/Module32x32
Cabinet Size(mm)(WxHxT)960x960x120(adjustable)
Pixels/Cabinet160x160
Cabinet Weight37KG
Brightness1300cd/sqm
Viewing Distance>6m
Power Consumption(W/sqm)Max: 400 ; Ave: 120
Driver Mode1/16 scan
Cabinet MaterialCold Rolled Steel/Aluminum
Refresh Rate300-3000HZ adjustable
LED Life100,000 hours
Supply VoltageAC220V/50HZ; AC110V/60HZ
Operating Temperature-20ºC ~ +40ºC
Operating Humidity10% - 90%
Viewing AngleH: 120°;  V: 120°
Gray ScaleRed, Green and Blue each 16K
Display Color4096 Billion
IP RatingIP20
Display CapabilityText, Graph and Video

Product Features:
High quality:
Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.
Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.
Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color  solve the problem of mosaic well.
Advanced technology:
Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.
Diversified display modes:
The products support multiple display modes.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Easy maintenance:
Easy for maintenance, and can fix the single point to save the maintenance cost.

Applications:
Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.
Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.
Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.
Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.

Packaging & Shipping
Standard Package: Veneer Case(Usually 3 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you. 3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

Training:
We offer training for free.

Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.

We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.

Installation:
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided.

We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.

Maintenance:
Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts.

You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance.

Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.

Company Information:

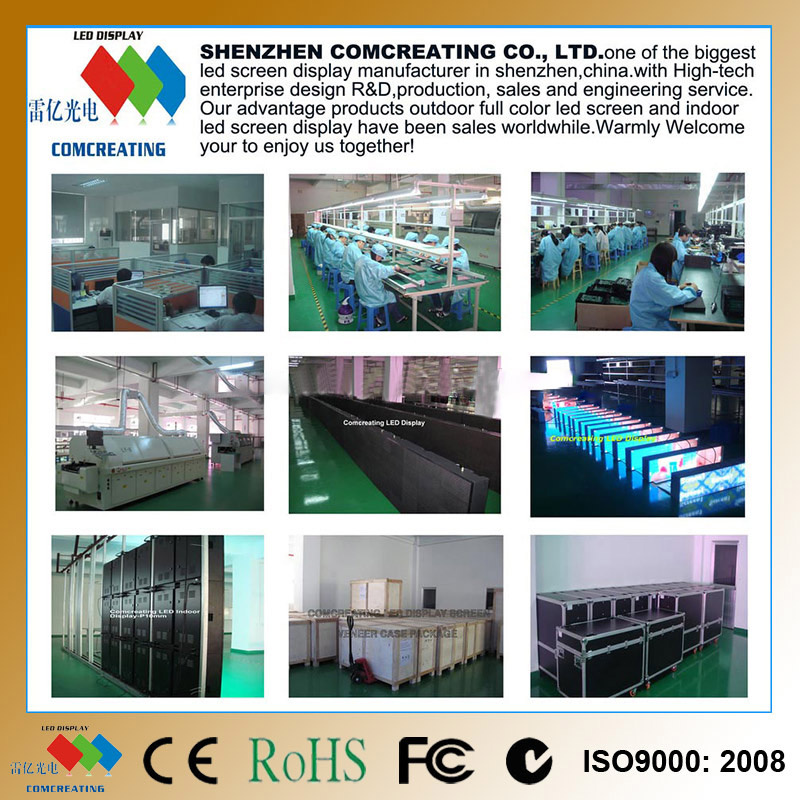

    Shenzhen Comcreating Co.,Ltd is a professional manufacturer engaging in the research and development, production, sales and service of LED display system.

    With the continuous and stable development in the past 8 years, Shenzhen Comcreating Co.,Ltd has showed strong competition in the market both in products quality and service. 50 sets of advanced equipments including latest automatic optic-electronic test system are furnished in product line.the output is more than15kk LED each month.

    Our products are CE approved, ROHS compliant, C-TICK and FCC certificated. We had provided more than 3000 LED displays for more than 50 countries and regions,and gained a great reputation from customers.

    We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come togher to create a lasting relationships, and let us help you in this business well.

FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit       (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 3 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.

Please contact us to learn more about all of the products we have to offer.
We will work closely with you from the first stages of your order until your new items are installed. Your satisfaction is our main concern.
Get the latest offer NOW.
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.

Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.

Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
