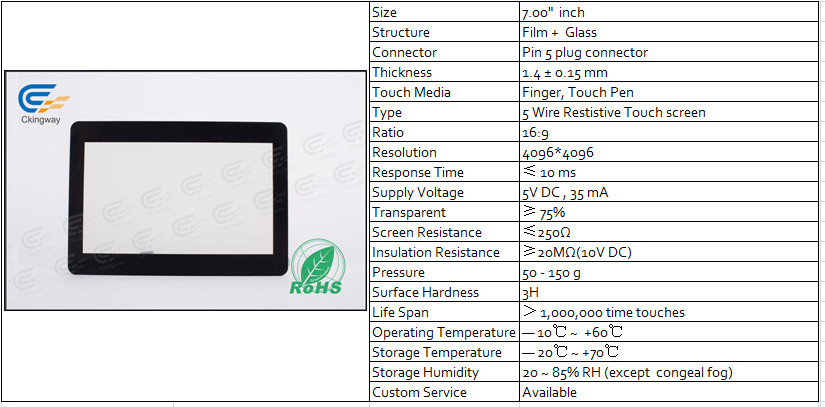

Prod Model: |
SZTP1263-7-W5R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
7.00" Inch |
Structure: |
Film + Glass |
Connector: |
Pin 5 Plug Connector |
Thickness: |
1.4 ± 015 mm |
Touch Media: |
Finger, Touch Pen |
Type: |
Projection Restistive Touch Screen |
Ratio: |
16:9 |
Resolution: |
1024*600 |
Aspect Ratio: |
16:9 |
Application: |
GPS System |
Screen Type: |
Resistive |
Resistive Touch Screen Type: |
Analog |
Customized: |
Customized |
Product Description
Product Description

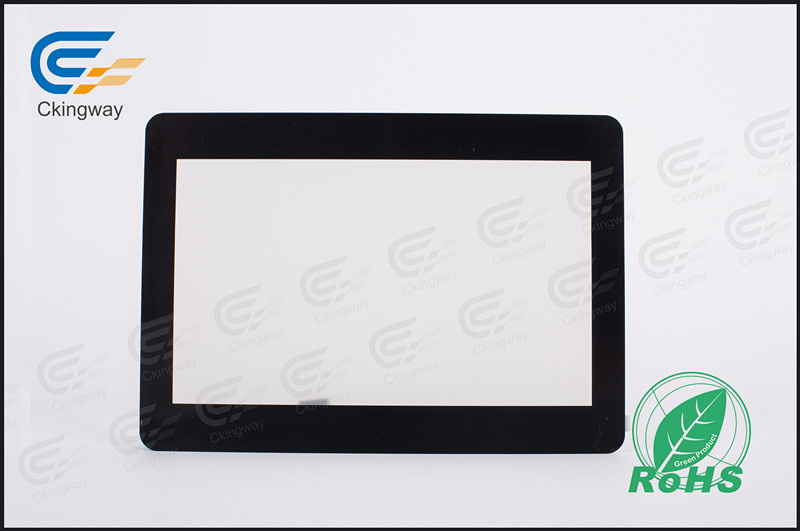

The Feathers of Customed 7 Inch 5 Wire Resistive touch screen foil for GPS System Touch as below:
1.Low cost solution, Low power consumption
2. Consistently accurate, fast touch response
3. Pressure sensitive, works with any stylus, Finger, gloved hand and stylus activation
4. Not affected by dirt, dust, water, or light
5. Affordable touch screen technology
6. Antiglare surface treatment
7. Available in 1.8"- 21" models (Customer size welcome)
5 Wire Restistive Touch screen technology
5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
Developed 5-Wire technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes, humidity, and wash down, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.

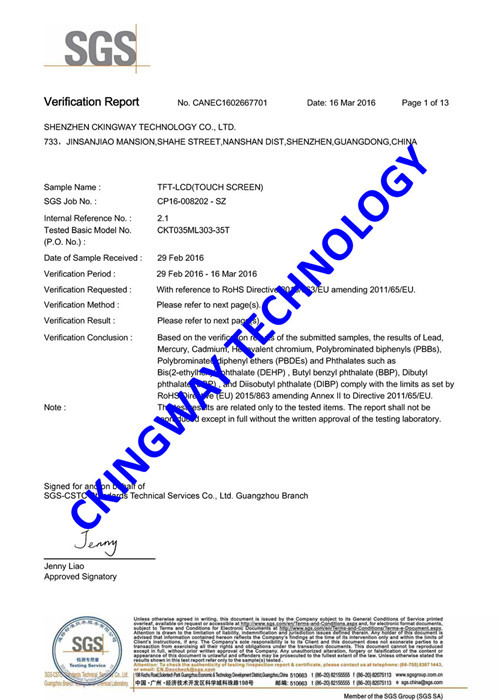

CERTIFICAITON:

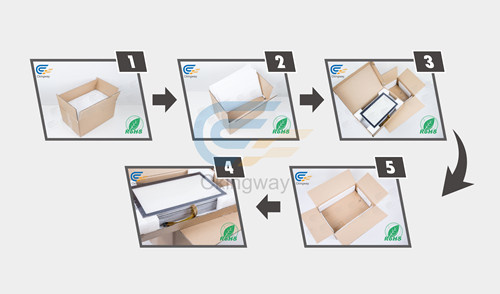

Customed 7 Inch 5 Wire Resistive touch screen foil for GPS System Touch for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
Customed 7 Inch 5 Wire Resistive touch screen foil for GPS System Touch for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated

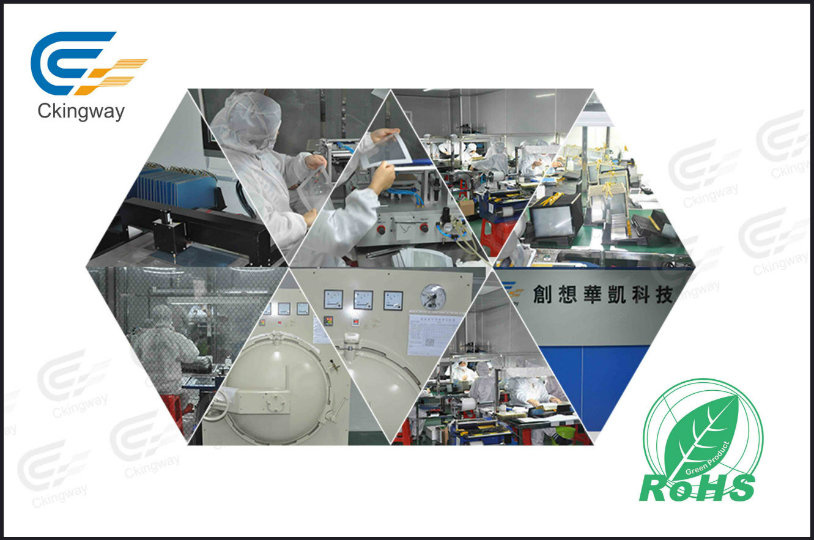

Company Information:
Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
Ckingway's Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, All products met RoHS testing request completely and have RoHS certification.
Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For" Connecting People, as career into integrity, Profits shared each other, Progressing by together" talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly.
Warranty:
FAQ
