Changzhou Yinxue Refrigeration Equipment Co., Ltd. >> Compressor Refrigerator Installation Coldroom

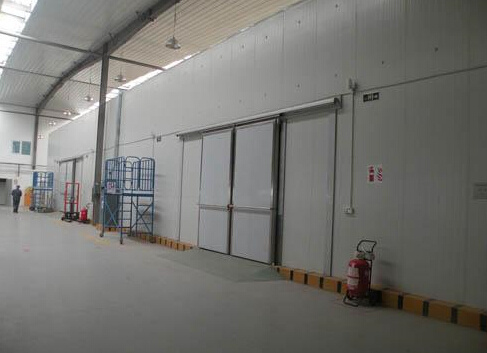

Compressor Refrigerator Installation Coldroom

Compressor Refrigerator Installation Coldroom
Price: US $ 3000-300000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: Yinxue
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sandwich Material: Polyurethane
Certification: SGS
Condition: New
Temperature: -60-60degree Centigrade
Size: Customized
Suitable For: Hospital, Blood Banks, Factory
Use For: Food, Blood, Vegetable, Medicine, Fruit

Product Description



TemperatureApplicationPU Panel ThicknessRemark
2ºC-8ºCMedicine and Medical DevicesGenerally Application Thickness:-5ºC to -18ºC,                               use 100mm-120mm,                          -23ºC to -30ºC,use 150mm, below -30ºC,use 200mmTemperature can be customized
±5ºCFresh Goods
-18ºC
Freezer
-23ºC--35ºCQuick-Freezer

To confirm your cold room project need you provide the following information:
1.cold room size
2.PU Sanwich Panel Thickness
Generally have 75mm,100mm,120mm,150mm,200mm
3.Panel Surface Material and thickness
Gernally have stainless steel,color Plated,Aluminum
Thickness is 0.326mm,0.376mm,0.426mm,0.5mm,0.7mm,0.8mm
4.Temperature
as per customer,generally medicine and blood is 2ºC-8ºC,to keep fruit and vegetables and tea fresh is -5ºC-+5ºC,freezer is -18ºC,quick-freezer is -23ºC to -35ºC,below -35ºC we can also design for you
5.you store fruit or vegetables or meat or medicine,blood
6.The size of door hole
7.The door direction
8.compressor use wind cooling or water cooling
9.evaporator use tube or air-cooler
Detailed Product Description
1)Insulation Material available: polyurethane sandwich insulation panel/polyethylene sandwich insulation panel/polystyrene sandwich insulation panel
2)Insulation Material Thickness: 50mm,75mm,100mm, 150mm, 200mm
3)Insulation Material Density:38~42Kg per cubic meter
4)protection plate material: coining aluminum plate /stainless steel plate/color steel plate.
5)Steel Plate Thickness: 0.326-0.8mm
6)Insulation Material Fire Rating: B2
7)Connection: Concave and convex chamfer CAM lock hook connection
8)Corners Connection: L type angle panel
9)Equipment Configuration: cold room plate ,cold room door  ,cooling fan, air curtain ,cold room electric box, refrigeration compressor, condenser, expansion valve, evaporator , Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge. Junction Box .
  Cold Room Features:
1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R22, R404A, Glycol Secondary Refrigerant
3. Temperature Range: From - 85°C To + 85°C
4. Room Size: According to the customer request design
5. Functions: Fresh-keeping, Frozen, Quick-Freeze, Fire-Proof ,water-proof ,damp-proof , thermo stability, no harmful gas under high temperature , etc..
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design

Classification Temperature:
1.0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
2.-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
3.-10 °C ~ -20 °C: Freezer Storage
4.-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
5.-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
Main Applications :
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ship manufacturing and more.


PLS FEEL FREE TO CONTACK US IF YOU ARE INTERESTED IN OUR COLD ROOM, WE WILL REPLY YOU AS SOON AS POSSIBLE.

BEST REGARDS FOR YOU AND THANKS FOR YOUR COMING
Changzhou yinxue refrigeration equipment Co., Ltd. is a large enterprise specializing in the production, sale, installation and service of cold storage products. We provide services to Emporium, Commercial Logistics, Bioengineering, Medicine, Food Processing, Research, Export Trade, and other fields.

We have below main products:

Cold storage integration products, large cold storage portfolios, cold storage panel, cold storage door, cooling fan, air curtain, cold room electric box, refrigeration units.

We guarantee high quality by advanced technology, excellent designs, strict enterprise management, highly qualified staff and cohesive enterprise spirit. During recent years, our company has established cooperative relationships with famous enterprises from at home and abroad.

Moreover, all our products comply with European CE Certification. We design professional products for customers, being actively committed to the abatement of hazardous substances, creating the best service system. Our main line of business is that from customer to customer. We will share a bright future with you with hard work.

COMPANY CONCEPT: Quality is life, Service is the soul, Price is weapon, Credibility is wisdom.

COMPANY APPROACH: From design to development, we design professional products for customers, and then manufacture. We chose safe and healthy materials, providing environmental friendly products for all customers.

COMPANY SERVICE: We will do our best to create the best service system. We give our sincerity and smile to customers, creating first-class service and the best brand.

COMPANY COMMITMENT:

We provide 24-hour service in city, 48-hour in countryside, and 72-hour in suburbs. We can supply on-site service for the convenience of our customers, and we are ready to answer 24-hour hotline.

Cold Storage Complete Machines have one year warranty.

Your satisfactions is our greatest success. Our company will be your best choice.
