Component Video/Stereo Audio Balun (COVSAB)

Component Video/Stereo Audio Balun (COVSAB)
Price: US $ 38.98/Set
Trade Terms: EXW
Min Order: 1/Set
Pay Type: T/T
Prod Model: MB-COVSAB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhibition: Venues Camcorder Connections Mobile Video
Application: Microphone
Color: Golden
Brand: Mybox

Product Description

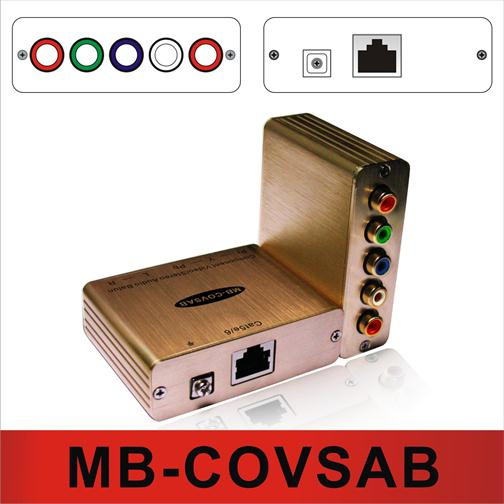

The Component Video/Stereo Audio Balun
(COVSAB) allows one component video (YPbPr
Or RGB) signal and one Stereo Audio channel to
Be transmitted via one Cat5e/6 twisted pair cable
For more cost-efficient cabling. Used in pairs or in
Conjunction with the COVSAB, the Component
Video/Stereo Audio Balun supports high definition
Resolution and true left/right stereo audio for hi-fidelity
Commercial and residential AV applications and so on.

Features & Benefits
Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
Supports true Hi-Fi left/right analog stereo audio up to 2, 000 ft (667m) via Cat5E/6
More cost efficient cabling
Quicker moves, adds and changes
  EnvironmentComponent Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line level Stereo Audio.
  Devices DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,amplifiers, switchers, home theatre & other equipment supporting HDTV component video and/or stereo audio.
  Transmission Transparent to the user.
  Bandwidth Video (Y): DC to 60 MHz, 3 dB roll off
Analog audio: 20 Hz to 20 kHz
   Maximum Input Video: 1.1Vp-p, Audio : 1.1Vp-p
  Insertion Loss per Pair ( Y  channel) 0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range
  Insertion Loss per Pair (Audio) Less than 2 dB over the frequency range per pair of baluns
  THD Less than 0.01% at 1 kHz
  Return Loss (Y channel) Greater than 15 dB over the frequency range
  Common Mode Rejection  Ratio (Y channel) -55 dB at 0.1 MHz
Gradually increasing to -20 dB at 60 MHz
  Max. Distance Color via Cat 5E/6 UTP/STP Cable Video: 480i/p: 1,000 ft (305 m). 720p and 1080i/p: 500 ft (152 m)
Stereo Audio: 2,000 ft (667m)
  Cable:Cat 5E/6 UTP/STP 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
  Cable: Coax Impedance: 75 ohms at 1 MHz
  Connectors Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr)
One  RCA-F connector for analog audio
RJ45 for twisted pair
  Pin Configuration Reverse polarity sensitive Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 4(R) &5(T)
Blue (Pb):Pins 1(R) & 2(T) analog  Audio: Pins 3(R) & 6(T)
  Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
  Enclosure Aluminum alloy
  Dimensions (packaging) 75*26*151mm (including one pair of Balun)
  Weight (packaging) 170g
