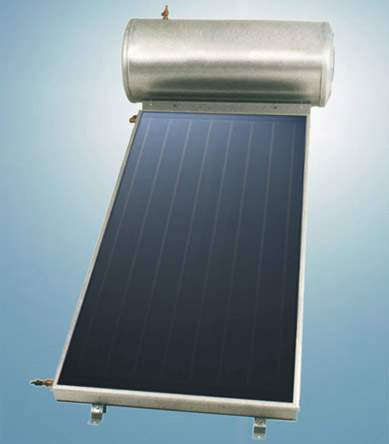

Compact Unpressurized Solar Water Heater

Compact Unpressurized Solar Water Heater
Price: US $ 98/Piece
Trade Terms: FOB
Min Order: 1Set
Pay Type: T/T
Prod Model: TJSUN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Water Heater
Pipe Material: Glass

Product Description

Unpressurized solar water heater:
1. Adopting interferential coating technology, vacuum tube can supply hot water constantly with high heat collecting capacity.

2. Made of SUS 304 thickening stainless steel by automatic argon_arc welding, inner tank has an excellent anti corrosive performance

3. Brackets are all_round designed in an industrial style with strong stability

4. Anti_freezing of original integrated fittings matches that of the entire machine. Core fittings are selected from the excellent ones for good operation.

5. Intelligent controller can control the circulation system automatically by feeling the water temperature of the pipe, which ensures hot water at any time so that there is no waste of water


1. Selective absorbent coated evacuated tube:
With high absorptance and vacuum degree the solar radiation absorbility is significantly enhanced than common tubes.

2. Insulation:
Made with one-off foaming at constant-temperature under high-pressure;

High temperature slaking processing creates even, high dense polyurethane foam, which features by low thermal conductivity, stable performance and excellent heat preservation;


The inner water tank is made of SUS304 stainless steel with high contents of Chromium and Nickel and is welded by automatic argon arc welding process to realize corrosion resistance and long service life.

3. Frame:
Made of hot galvanized plate, and more than 14 surface anti-corrosion processes are adopted, such as degreasing, phosphating, electrostatic spraying, high temperature slaking, etc, which makes the frame be steady and anti-corrosion as well as long service life, more than 10 years.

4. SED auxiliary heating system:
Passed the China Compulsory Certification, has double overheat protection and leakage protection. Electrical booster is made of Incoloy 800 to realize the dry burning resistance, corrosion resistance, which is safer.

5. Components: Intelligent control system might be chosen to support
